Product Description

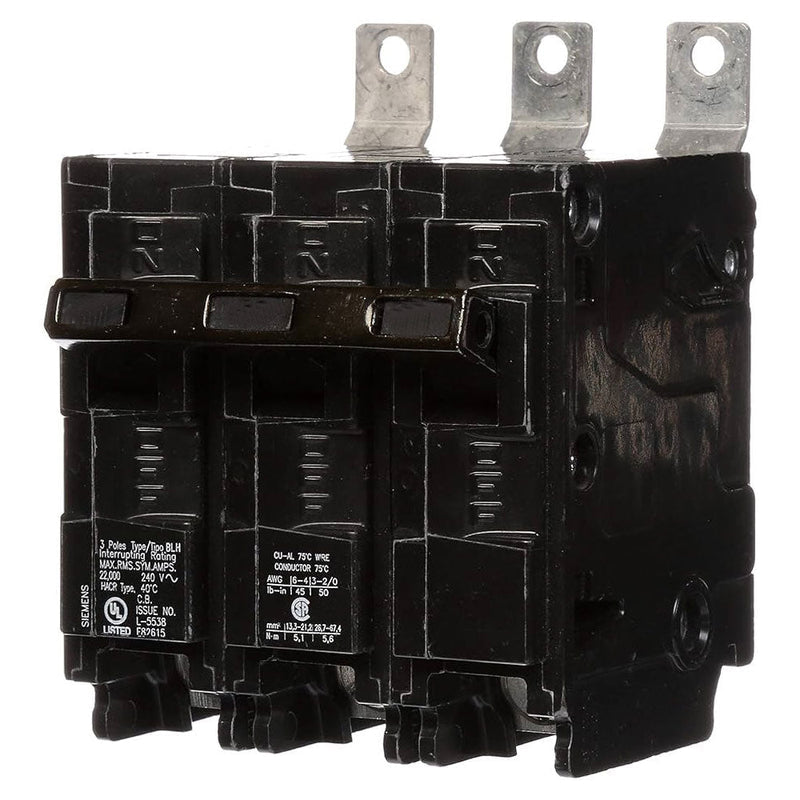

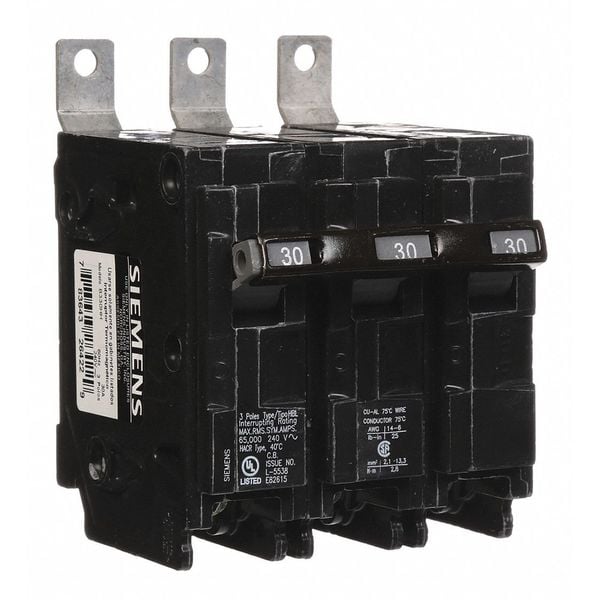

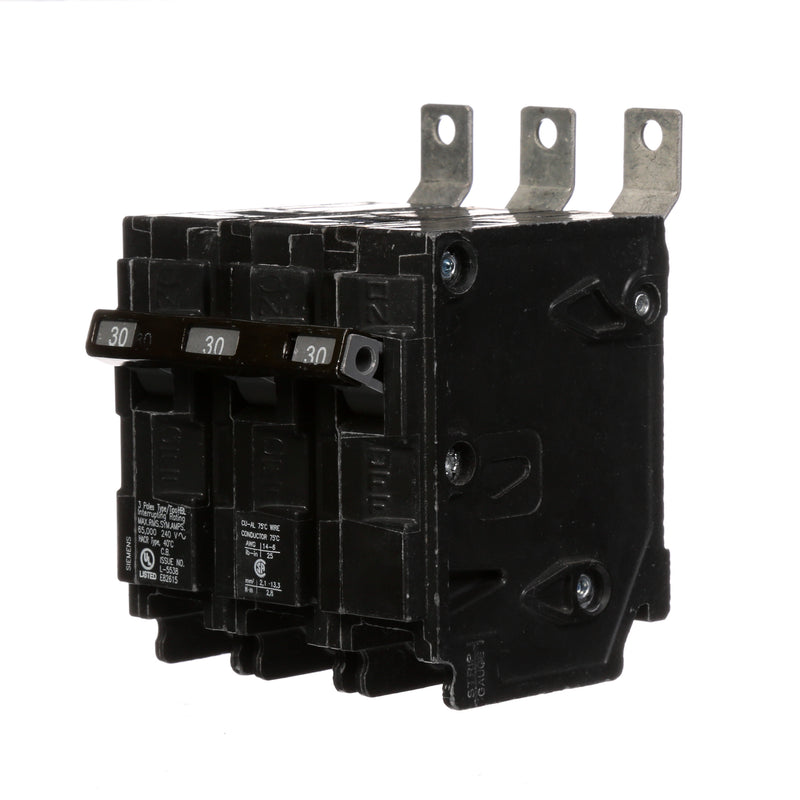

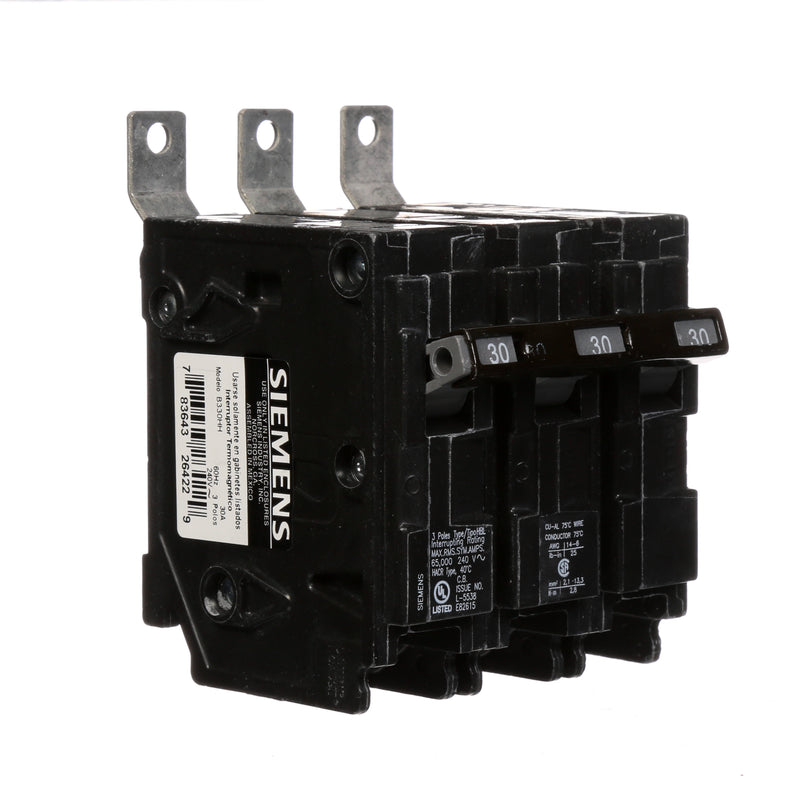

The SIEMENS B330HH is a circuit breaker designed for circuit protection. This 3-pole, 30 amp, 240 VAC bolt-on molded case circuit breaker features a thermal magnetic trip unit for overload and short circuit protection. It is suitable for panelboard mounting and complies with UL 489 standards.
- 240V AC voltage rating
- Thermal Magnetic Trip Range
- Bolt-on mounting style
Product Highlights
The SIEMENS B330HH circuit breaker provides reliable circuit protection with a 30A amperage rating and a 65kA interrupt rating.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: B330HH
-
Country of Origin: Mexico
Technical Specifications
-
MPN: B330HH
-
Brand: SIEMENS
-
Amperage Rating: 30
-
Brand Name: Siemens
-
Connection: BOLT-ON
-
Country of Origin: MX
-
Frame: HBL
-
Frequency_Rating: 60
-
Interrupt_Rating: 65
-
Number_Of_Poles: 3
-
Phase: 3
-
Special Features: 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
Act by tripping quickly enough to prevent damage to itself and associated conductors
Measure the amount of over current
Mounting with insta-wire
Sense when an over current occurs
-
Standard: UL 489
-
Sub_Brand: Siemens
-
Trip_range: Thermal Magnetic
-
Trip_Type: Thermal Magnetic
-
Type: Low Voltage
-
Voltage Rating: 240
-
Catalog Number: B330HH
-
Circuit Breakers: Molded Case
-
Style: BL Series
-
Poles: 3
-
Amps: 30
-
AIC: 65kA@240V
-
Part Number: B330HH
-
Manufacturer: Siemens
-
Category: Circuit Breaker
-
Item Subcategory: Molded Case
-
Family: BL Series
-
Voltage: 240
-
Functions: LI - Long-Time and Instantaneous
-
Terminal Connection: Lug
-
Frame Size: 125A/BL
-
MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
-
Breaker Type: Standard
-
Protection: Thermal Magnetic
-
Panel Type: Siemens P1 Panelboards
-
Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
-
Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
-
MFR #: B330HH
-
Item: Miniature Circuit Breaker
-
Series: BL
-
AC Voltage Rating: 240V AC
-
Circuit Breaker Type: Standard
-
Circuit Breaker Actuator: Toggle
-
Circuit Breaker Mounting Style: Bolt On
-
Max. AIR Rating: 65kA at 240V AC
-
DC Voltage Rating: Not Rated
-
For Use With: Siemens P1 Panelboards
-
Application: Electrical Distribution
-
Compatible Panelboard/Load Center Series: P1
-
Height: 3 in
-
Width: 3 in
-
Depth: 4 in
-
Max. Wire Size: 6 AWG
-
Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
-
Length: 3 in
