Siemens B3100H Molded Case Circuit Breaker 240 VAC 100 A 22 kA

Product Description

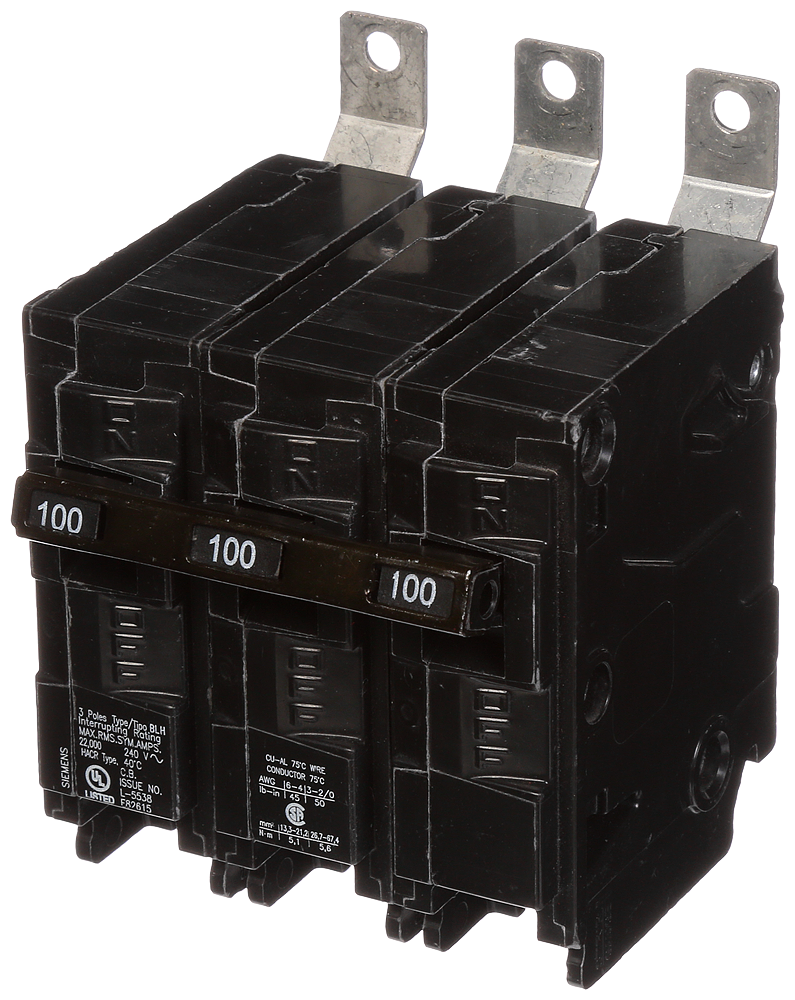

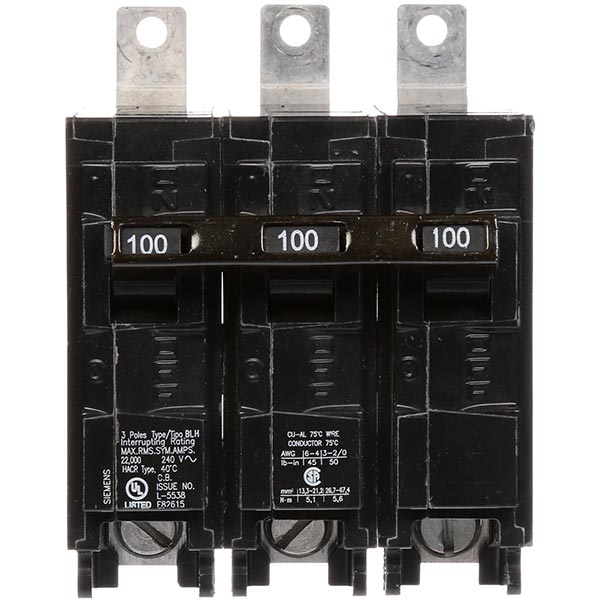

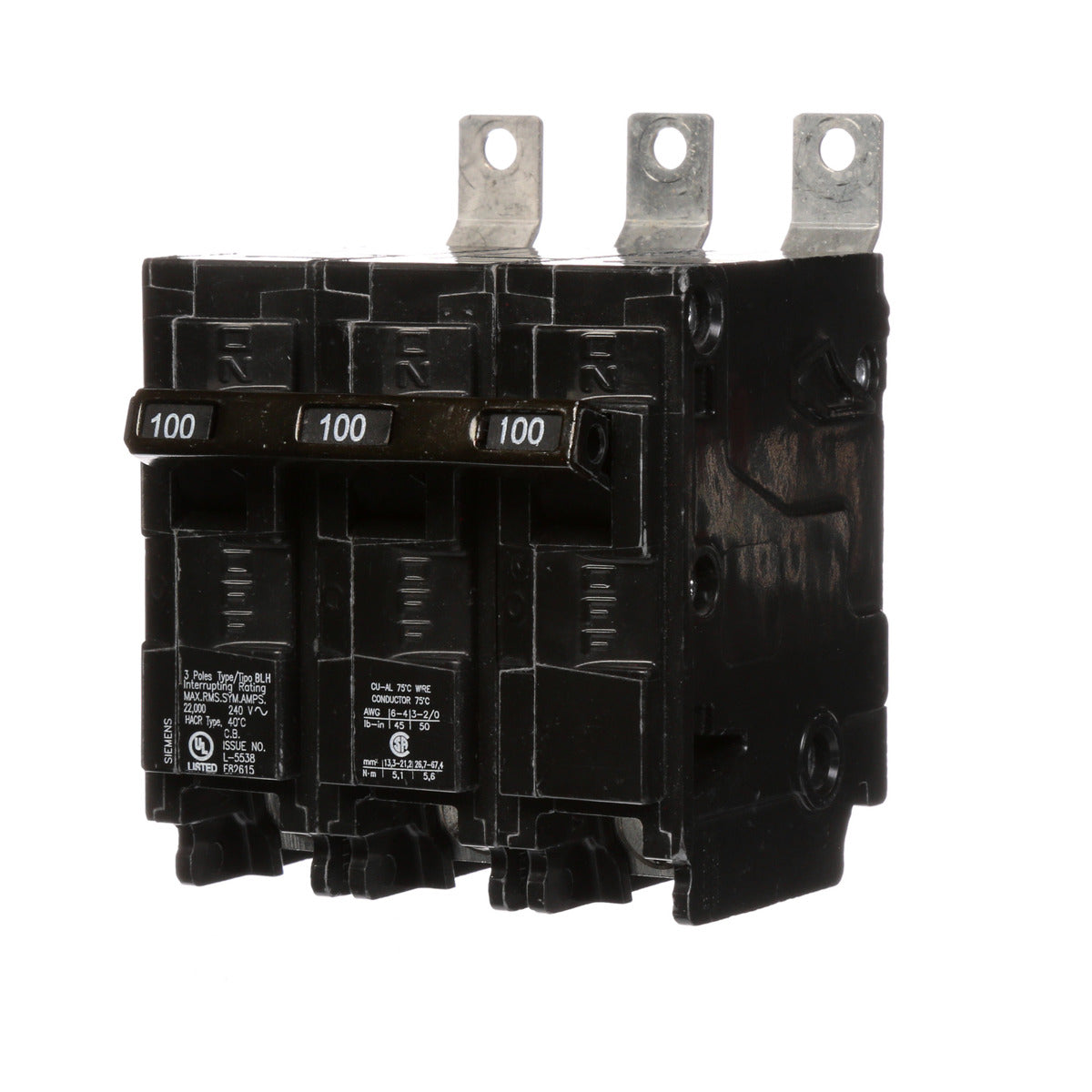

The Siemens B3100H is a type BLH Molded Case Circuit Breaker rated for 240 volts and 100 amps. This breaker offers reliable overcurrent protection and is ideal for electrical distribution systems. Its thermal-magnetic trip mechanism ensures quick response to overloads and short circuits.

• Rated for 240 volts and 100 amps
• 22 kA interrupt rating
• Three-pole configuration

Product Highlights

This circuit breaker is designed to energize and de-energize electrical circuits. It provides automatic protection against overcurrent situations.

Product Information

Standard Information

• Manufacturer: Siemens
• Country of Origin: Mexico

Technical Specifications

• MPN: B3100H
• Type: BLH
• Voltage: 240 VAC
• Current: 100 Amps
• Interrupt Rating: 22 kAIC
• Number of Poles: 3
• Mounting Type: Panel
• Actuator Type: Toggle
• Wire Size: 4 to 1/0 AWG Copper, 2 to 1/0 AWG Aluminum
• Temperature Rating: 40 degrees Celsius
• Frequency Rating: 60 Hz
