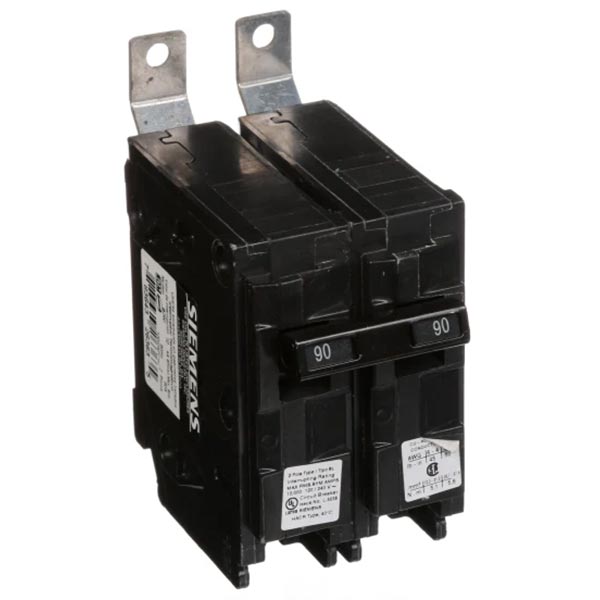

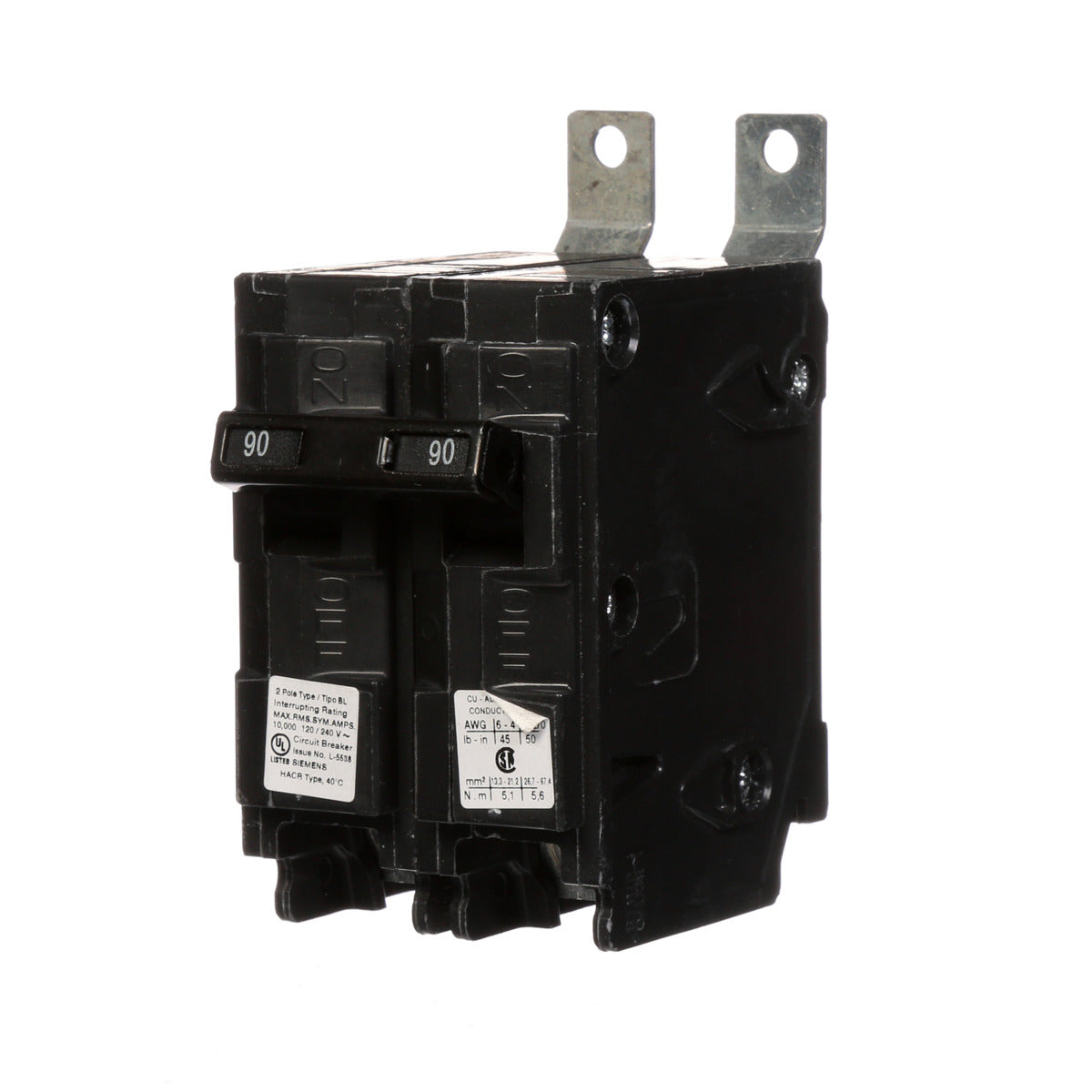

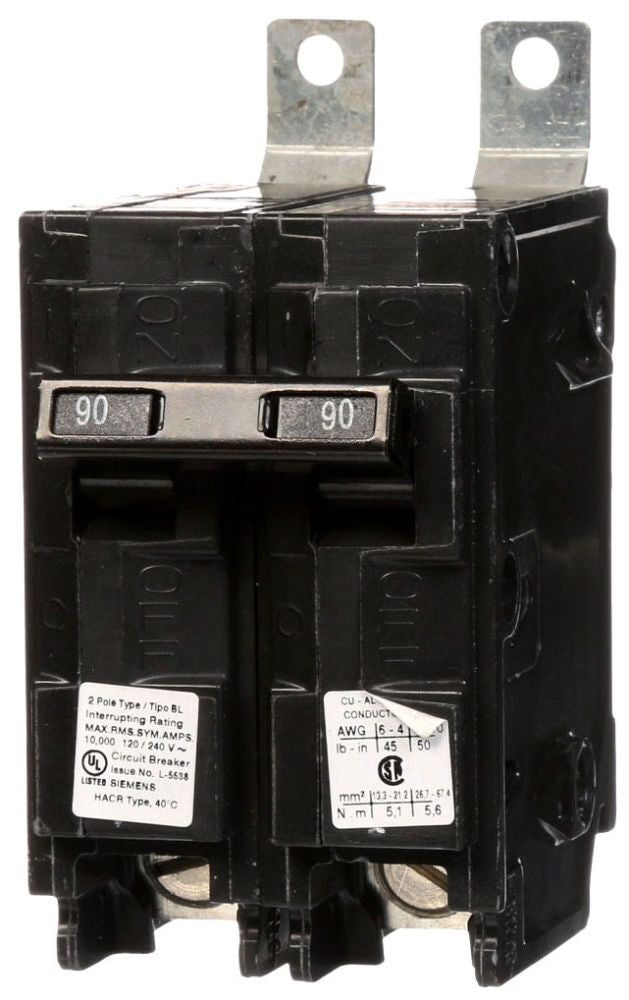

Siemens B290 2-Pole 90 Amp 120/240 Volt 10 K Circuit Breaker

Product Description

The Siemens B290 is a 2-pole molded case circuit breaker designed for electrical distribution applications at 120/240 volts. With a current rating of 90 amps and a thermal magnetic trip type, it provides reliable overload protection. The B290 is suitable for use in commercial and residential settings. It allows for easy reactivation after a trip, ensuring minimal downtime.

• Voltage: 120/240 Volts
• Interrupt Rating: 10 kA
• Number of Poles: 2

Product Highlights

This circuit breaker is designed for efficient circuit protection and is easy to install. It features a bolt-on connection type, ensuring secure mounting in panelboards.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: B290
• Current Rating: 90 Amps
• Voltage Rating: 120/240 Volts
• Trip Type: Thermal Magnetic
• Dimensions: 4 inches (Width) x 3 inches (Height) x 2.5 inches (Length)
• Weight: 0.63 lbs
• Connection Type: Bolt-On
• Country of Origin: Mexico
