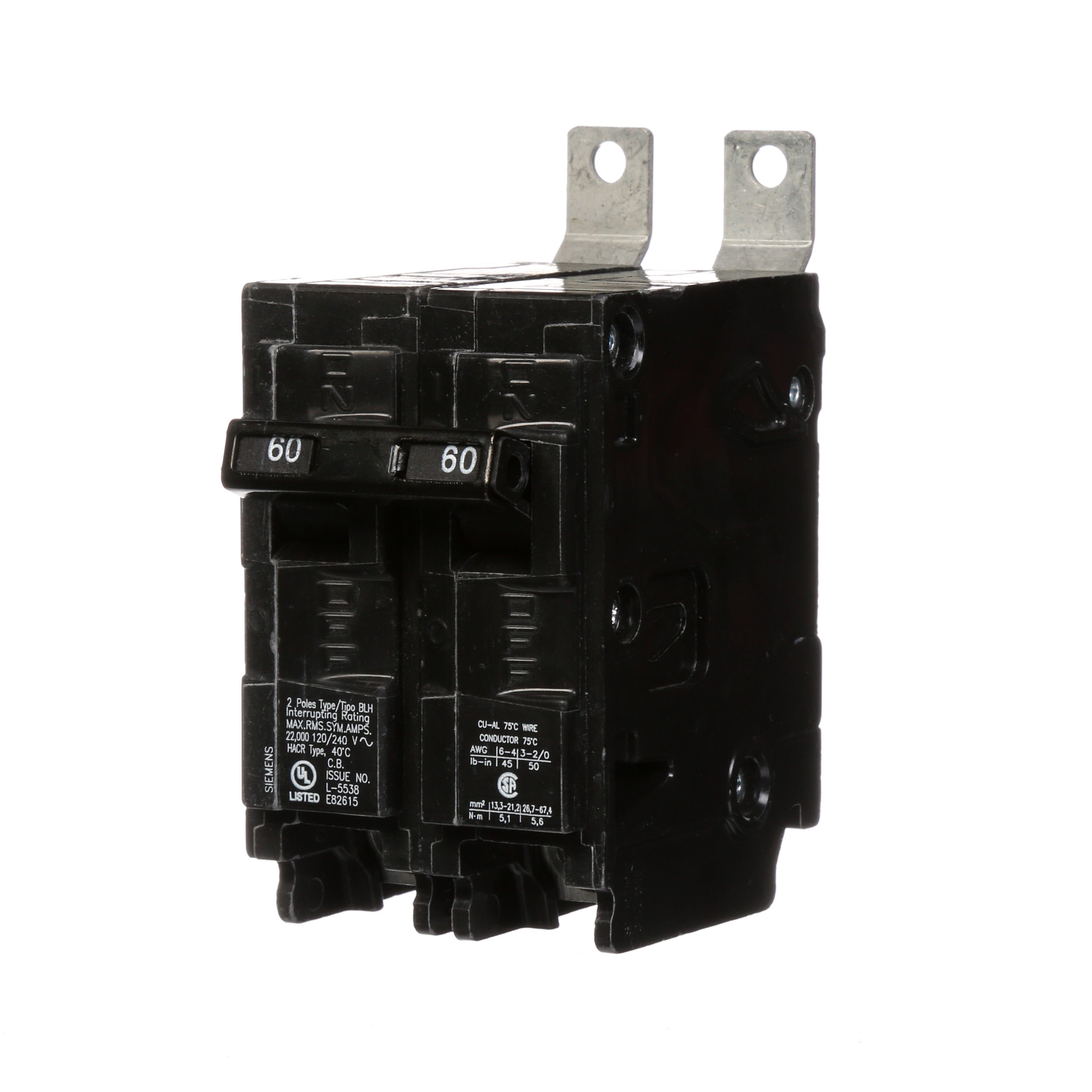

Siemens B260H Panelboard Circuit Breaker 60A

Product Description

The SIEMENS B260H is a panelboard circuit breaker designed for lighting and distribution applications. This molded case, thermal and fixed magnetic circuit breaker is a 2-pole, 60A breaker with a bolt-on installation. It has an interrupting rating of 22kA at 120/240 VAC and is UL 489 and CSA C22.2 approved. It is designed for use on P1/P2/P3/P4/P5 panelboards.

• Supplied with Load Side Connector
• HACR Rated
• Thermal-Magnetic

Product Highlights

The SIEMENS B260H circuit breaker provides over current protection and a manual means of energizing and de-energizing a circuit.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B260H
• Country of Origin: Mexico

Technical Specifications

• application: Lighting, Distribution
• approval: UL 489, CSA C22.2
• installation: Bolt-On
• interrupting rating: 22 Kiloampere at 120/240 VAC (UL)
• manufacturer name: Siemens
• number of poles: 2
• product UPC: 783643263949
• type: Molded Case, Thermal and Fixed Magnetic
• used on: P1/P2/P3/P4/P5 Panelboard
• Amperage: 60A
• Voltage: 120/240V
• Circuit Breaker Type: Molded Case
• Series: BLH
• Interrupting Capacity: 22kA
• Actuator: Switch Position Knob
• Applications: Electrical Distribution
• Connection Type: Bolt-On
• Current: 60 Amp
• Frame: BLH
• Interrupt Rating: 22 kAIC
• Trip Range: Thermal Magnetic
• Trip Type: Thermal Magnetic
• Brand: Siemens
• 12-Digit UPC: 783643263949
• Temperature Rating: 40 deg C
• Wire Size: 8 to 4 AWG, 8 to 2 AWG
• Mounting Type: Panel
• Phase: 1
• Frequency Rating: 60 Hz
• Standard & Approvals: UL 489|HACR Rated
