Product Description

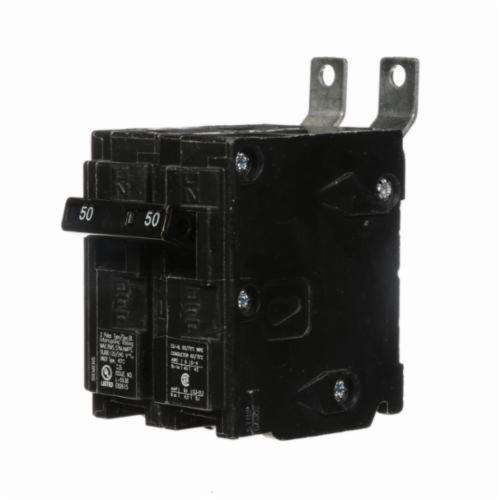

The Siemens B250 Molded Case Circuit Breaker is designed for electrical distribution applications. The MPN is B250. This circuit breaker operates at 120/240 VAC, with a 50 A amperage rating. It features a thermal/magnetic trip and an interrupting rating of 10 kA, providing reliable protection for circuits. The two-pole configuration makes it ideal for various installations.
- Type BL molded case
- Manual and automatic circuit protection
- Suitable for panel mounting
Product Highlights
This circuit breaker can be easily reset after a trip without replacement, unlike traditional fuses.
Product Information
Standard Information
-
Brand: Siemens
-
Category: Molded Case Circuit Breakers
Technical Specifications
-
MPN: B250
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 50 A
-
Trip Type: Thermal/Magnetic
-
Number of Poles: 2
-
Interrupt Rating: 10 kA
-
Dimensions: 4 in L x 3 in W x 2 in H
-
Connection Type: Bolt-On
-
Mounting Type: Panel
-
Temperature Rating: 40 deg C
-
Frequency Rating: 60 Hz
-
Wire Size: 8 to 6 AWG, 8 to 4 AWG
-
Approval: UL 489, CSA C22.2
