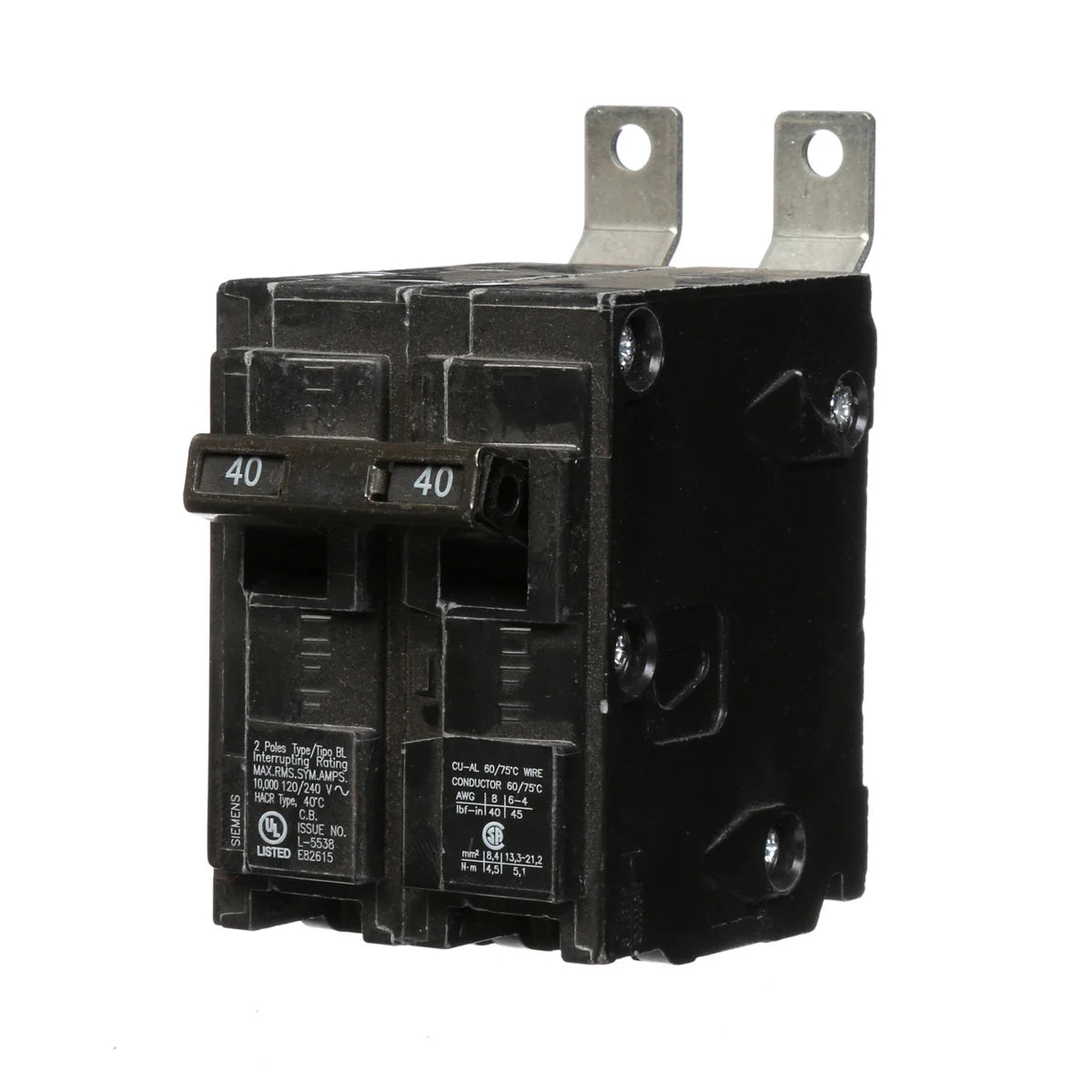

Siemens B240 Molded Case Circuit Breaker, Type BL, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles

Product Description

Siemens B240 is a molded case circuit breaker designed for applications requiring effective electrical distribution. With a voltage rating of one hundred twenty/ two hundred forty VAC and a forty ampere current capacity, this breaker provides robust protection against overloads and short circuits. The B240 features thermal/magnetic trip mechanisms and is suitable for panel mounting.

• Rated voltage: 120/240 VAC
• Amperage rating: 40 A
• Interrupting capacity: 10 kA

Product Highlights

This circuit breaker facilitates a manual means of energizing and de-energizing circuits while automatically protecting against overcurrents.

Product Information

Standard Information

• Manufacturer: Siemens
• MPN: B240

Technical Specifications

• Type: BL
• Number of poles: 2
• Frequency rating: 60 Hz
• Connection type: Bolt-On
• Temperature rating: 40 deg C
• Dimensions: 3 in L x 2 in W x 4 in H
• Wire size: 8 to 6 AWG copper, 8 to 4 AWG aluminum
