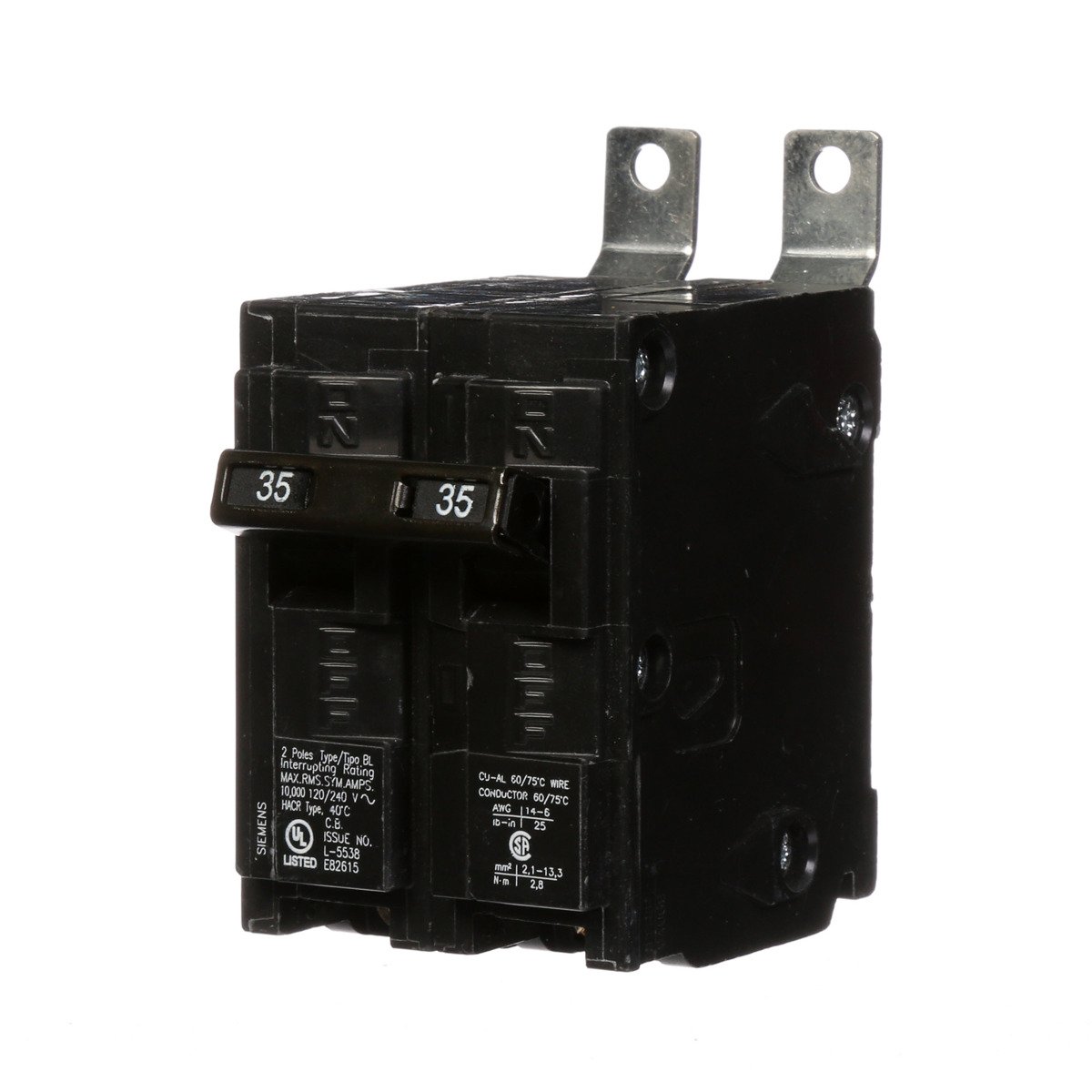

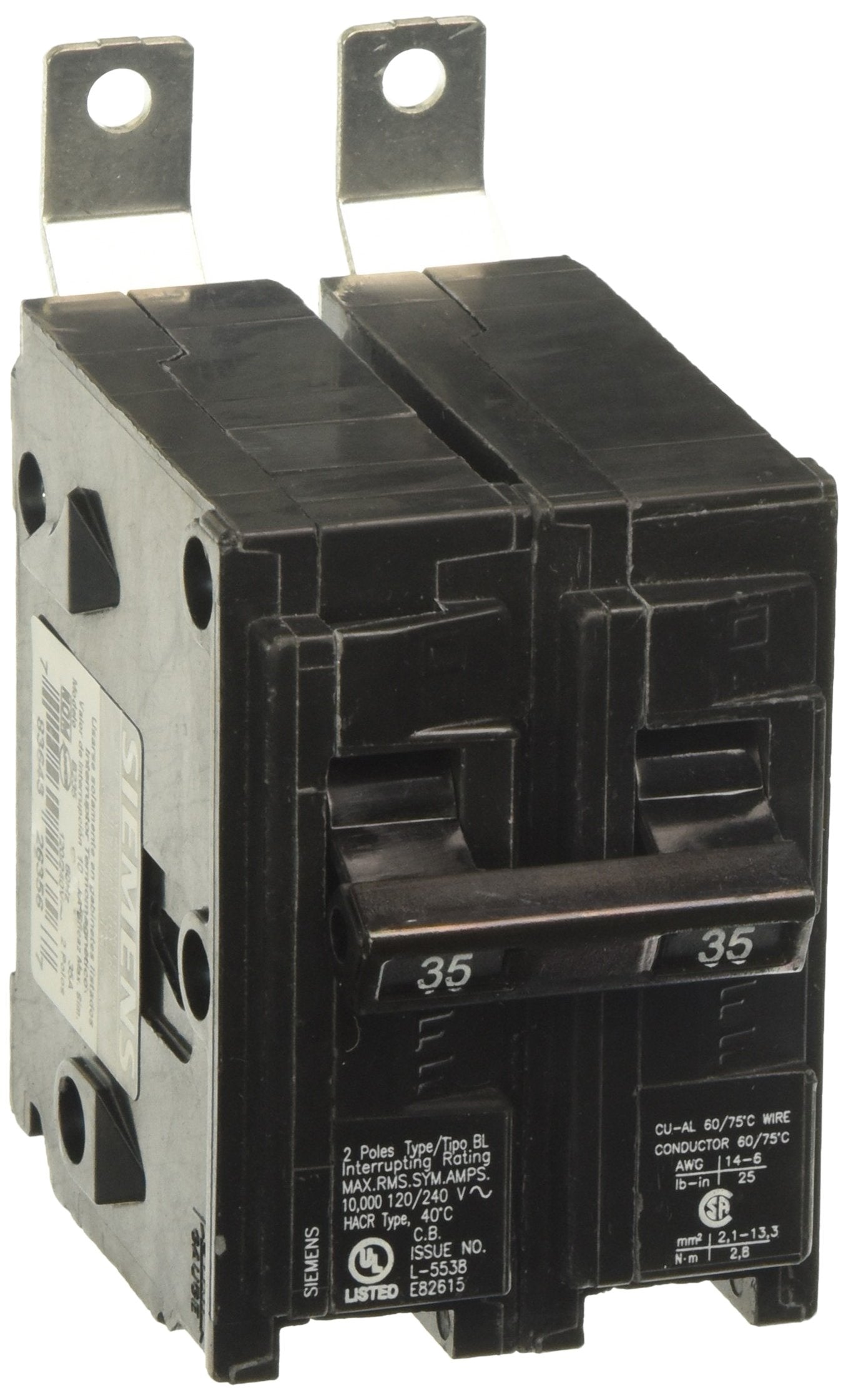

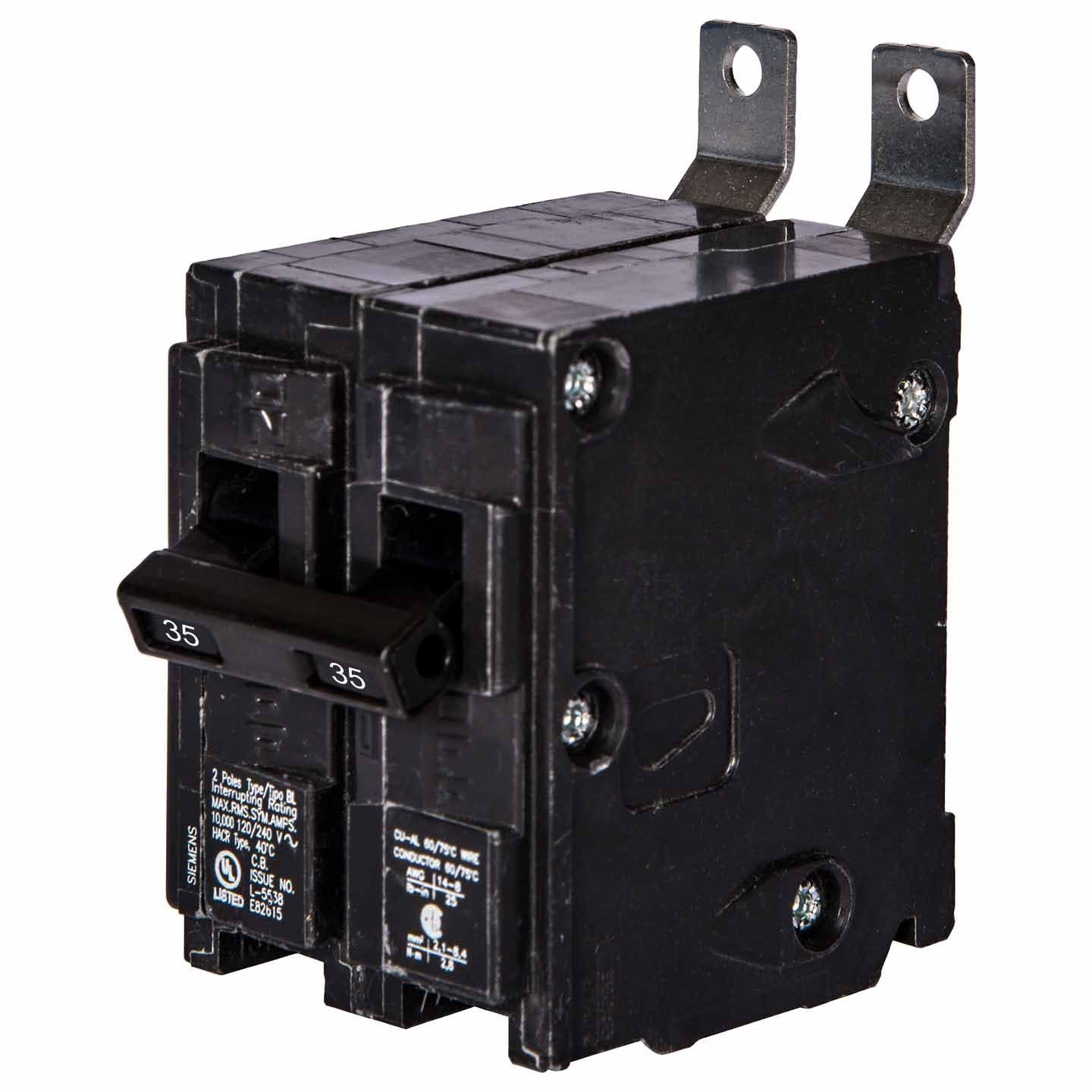

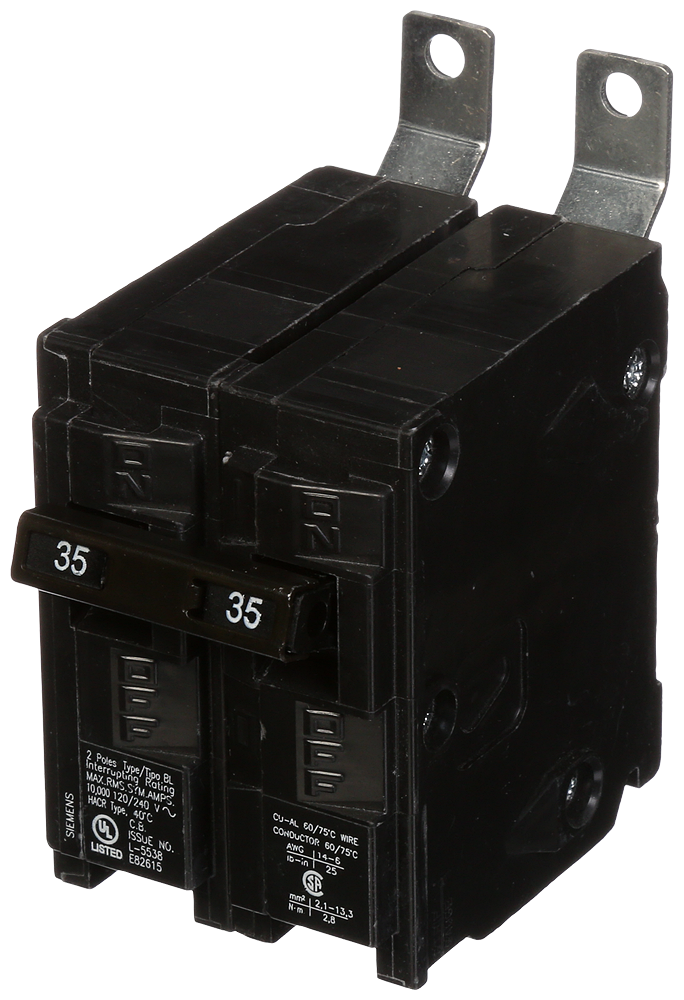

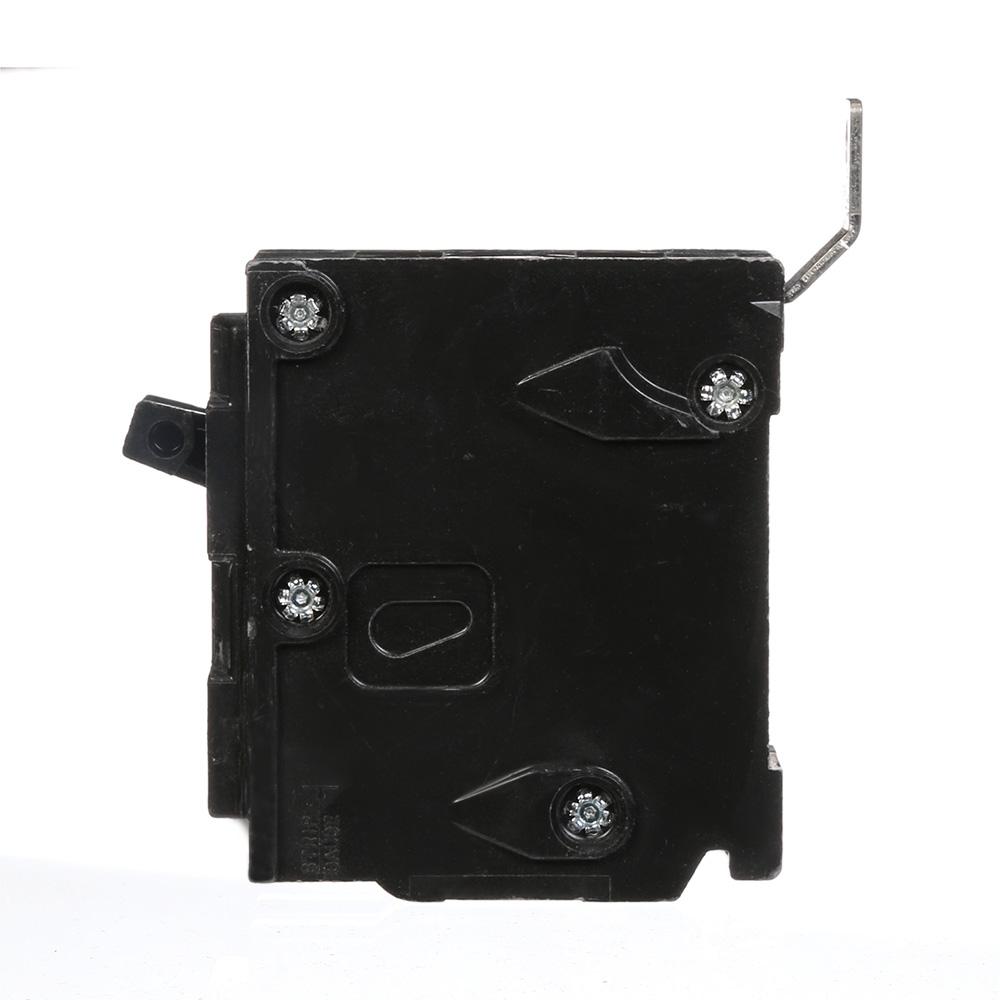

Siemens B235 Circuit Breaker 2-Pole 35 Amp 120/240 Volt 10 K

Product Description

The Siemens B235 is a low voltage molded case circuit breaker designed for electrical distribution applications. Operating at 120/240 VAC, this 2-pole breaker has a 35 A amperage rating and a 10 kA interrupt rating. It features a thermal magnetic trip and is suitable for panel mounting with bolt-on connection.

• Electrical Distribution application
• UL 489 standard
• Thermal Magnetic trip range

Product Highlights

This Siemens circuit breaker provides over current protection and allows quick reactivation after a short circuit.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B235
• Country of Origin: Mexico

Technical Specifications

• Type: BL
• Brand: Siemens
• Depth: 3 in
• Width: 4.000 in
• Height: 3-1/2 Inch
• Length: 2-1/2 Inch
• Weight: 0.625 lb
• Current: 35 Amp
• Voltage: 120/240 Volt
• Actuator Type: Toggle
• Enclosure: N/A
• Trip Range: Thermal Magnetic
• Applications: Electrical Distribution
• Connection Type: Bolt-On
• Number of Poles: 2 Pole
• Interrupt Rating: 10 AIC
• Number of Phases: -99999
• Operating Temperature: N/A
• Standard: UL 489
• Amperage Rating: 35 A
• Voltage Rating: 120/240V
• Frequency Rating: 60 Hz
• Mounting Type: Panel
• Phase: 1
• Temperature Rating: 40 deg C
• Trip Type: Thermal Magnetic
• Wire Size: 14 to 6 AWG, 12 to 6 AWG
• Dimensions: 4 in L x 3 in W x 2 in H
• Manufacturer: Siemens
• Poles: double pole
• Interrupting Rating: 10KAIC
• Installation: Bolt-On
• Approval: UL 489, CSA C22.2
