Siemens B206FC-SA266.600 2-Way Normally Closed Industrial Butterfly Valve Modulating 0-10 Vdc 120V Replacement MPN

Product Description

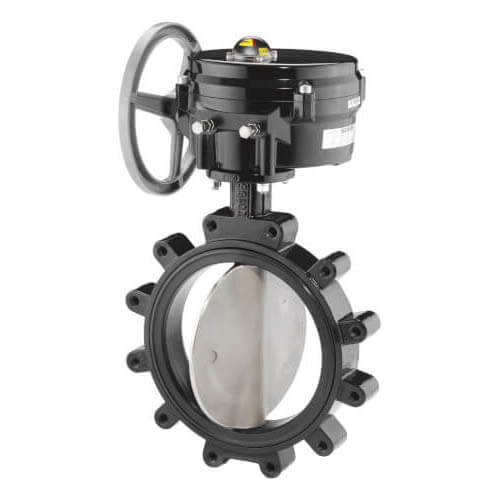

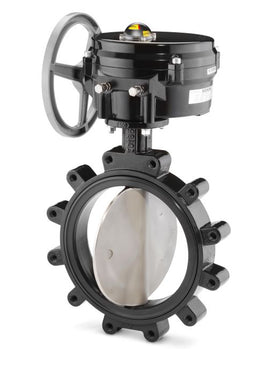

The Siemens B206FC-SA266.600 is a two-way normally closed butterfly valve designed for industrial applications. This valve features a modulating control signal ranging from zero to ten VDC and operates at a voltage of one hundred twenty. It has a maximum pressure rating of one hundred seventy-five PSI, making it suitable for both chilled and hot water systems.

• Durable construction with high temperature and chemical resistance.
• Corrosion-resistant stainless steel disc for longevity.
• Compatible with various water types including chilled, hot, and glycol mixtures.

Product Highlights

This valve is built for high-performance in demanding environments. It ensures reliable operation with optimized flow characteristics.

Product Information

Standard Information

• Valve Body Style: Rotary-Butterfly
• Port Configuration: 2-Way Normally Closed

Technical Specifications

• Trim Material: Stainless Steel
• Max Flow Rate: 1176 GPM
• Pressure Class: ANSI 125
• Max Inlet Pressure: 250 PSI
• Close-off Pressure: 175 PSI
• Control Signal: 0 to 10 VDC
• Supply Voltage: 120 VAC
• Body Material: Cast Iron
• Position: Normally Closed
• Valve Size Range: 2-inch through 24-inch
