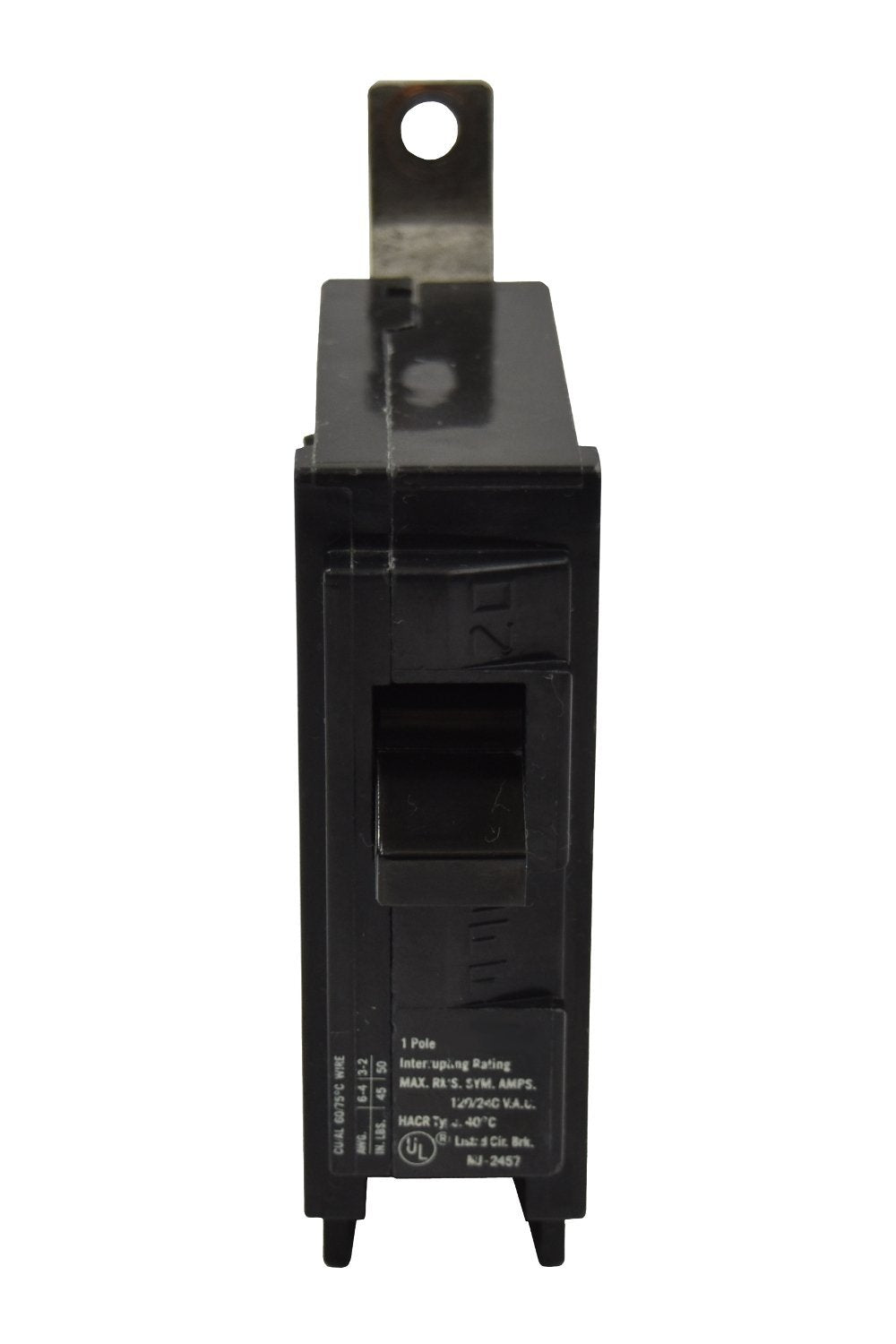

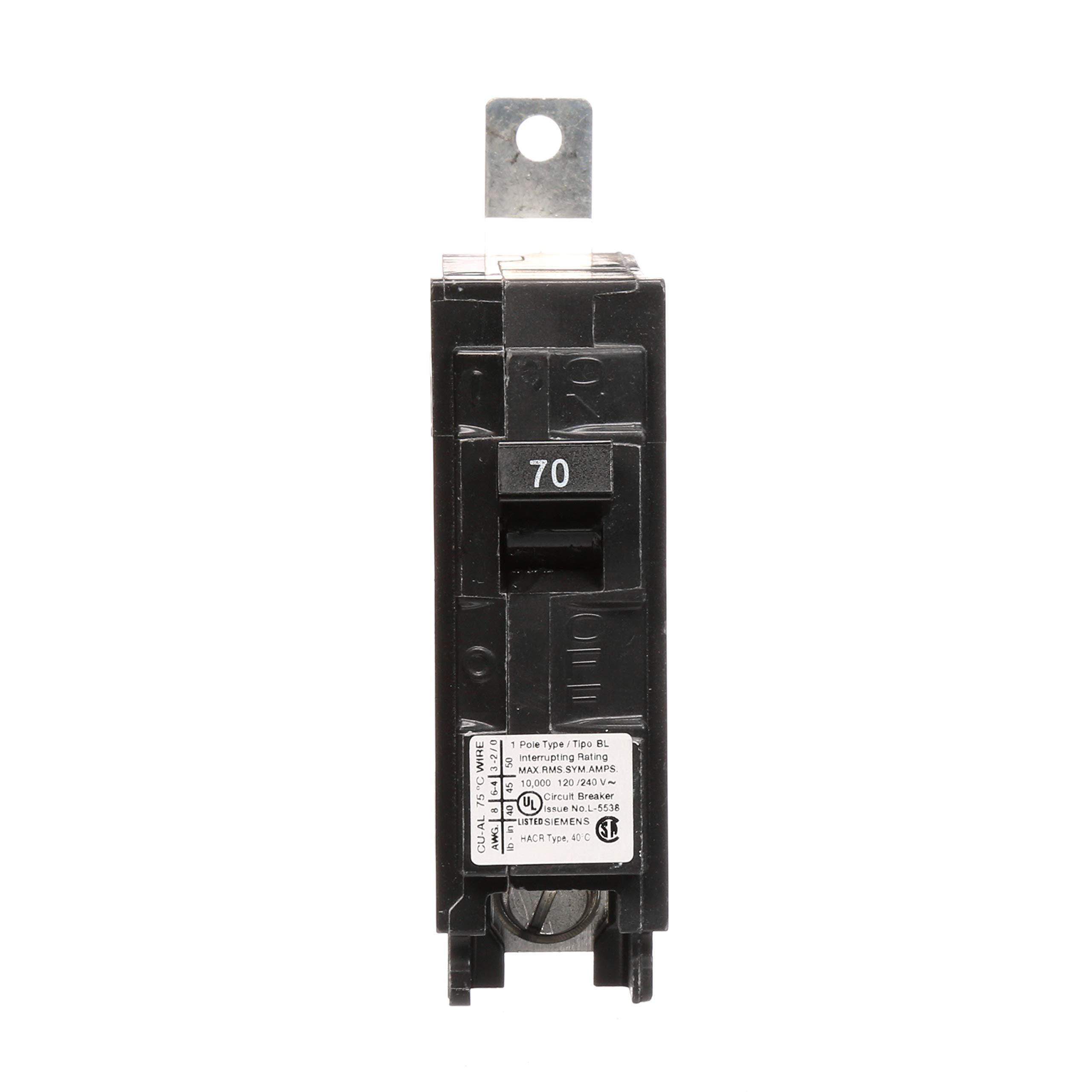

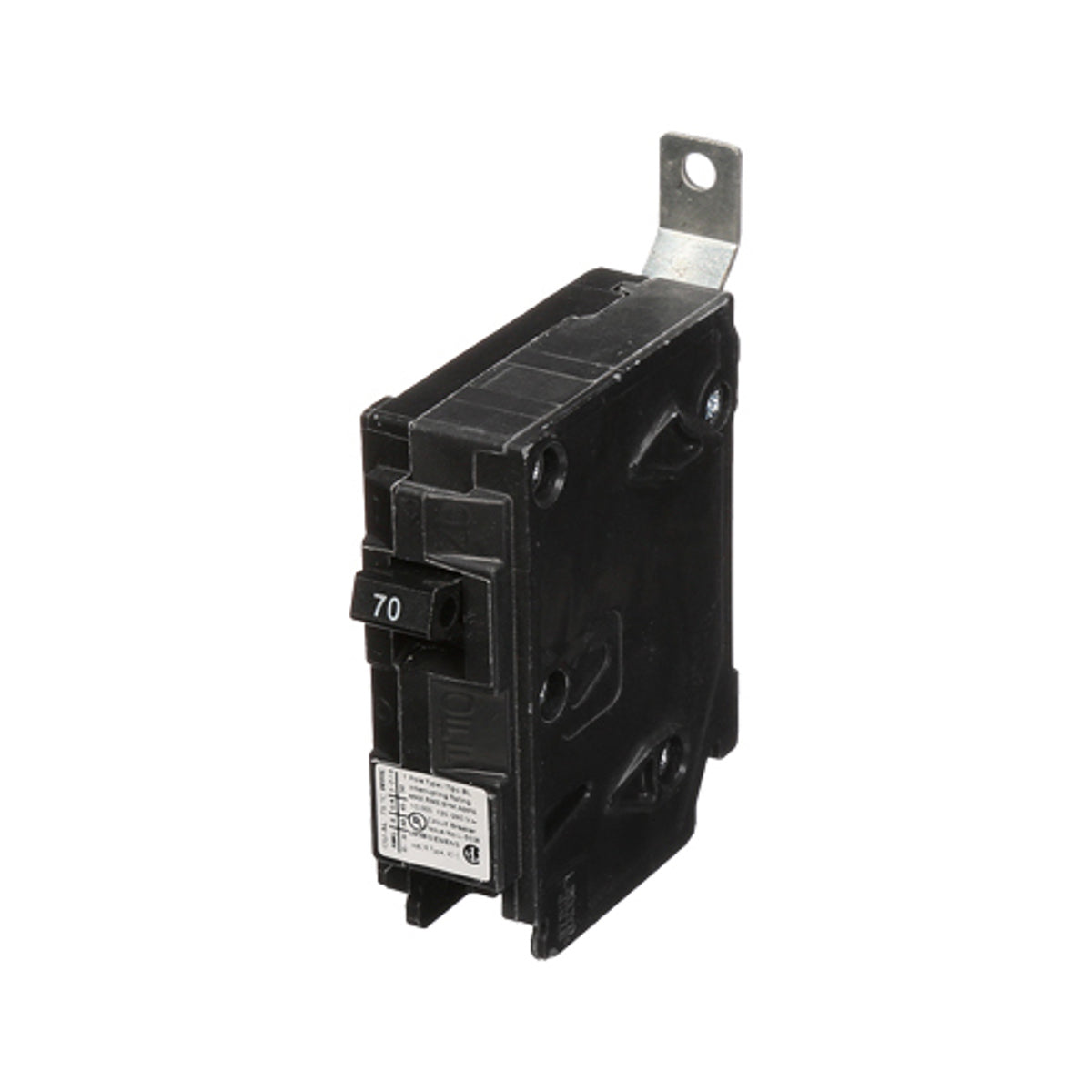

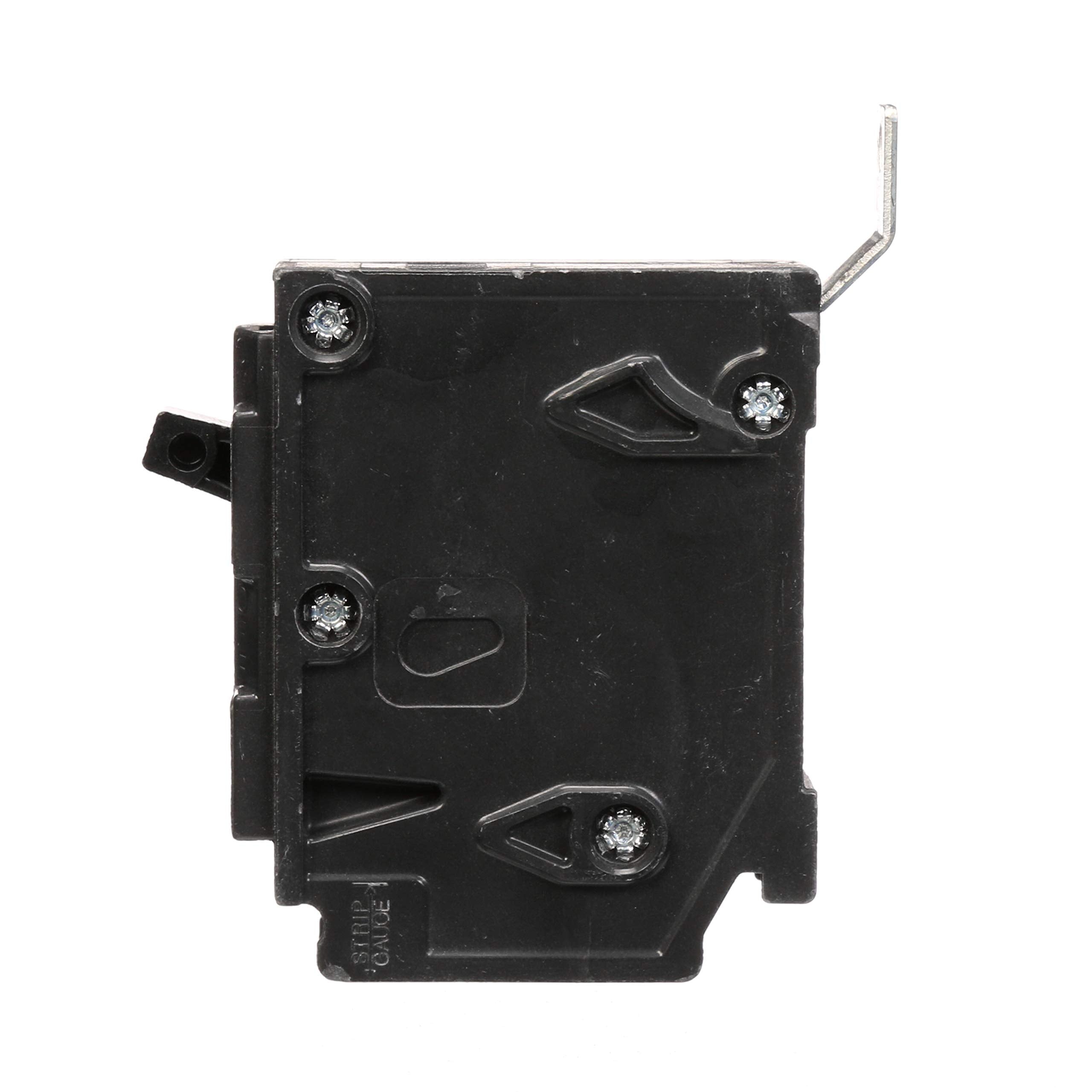

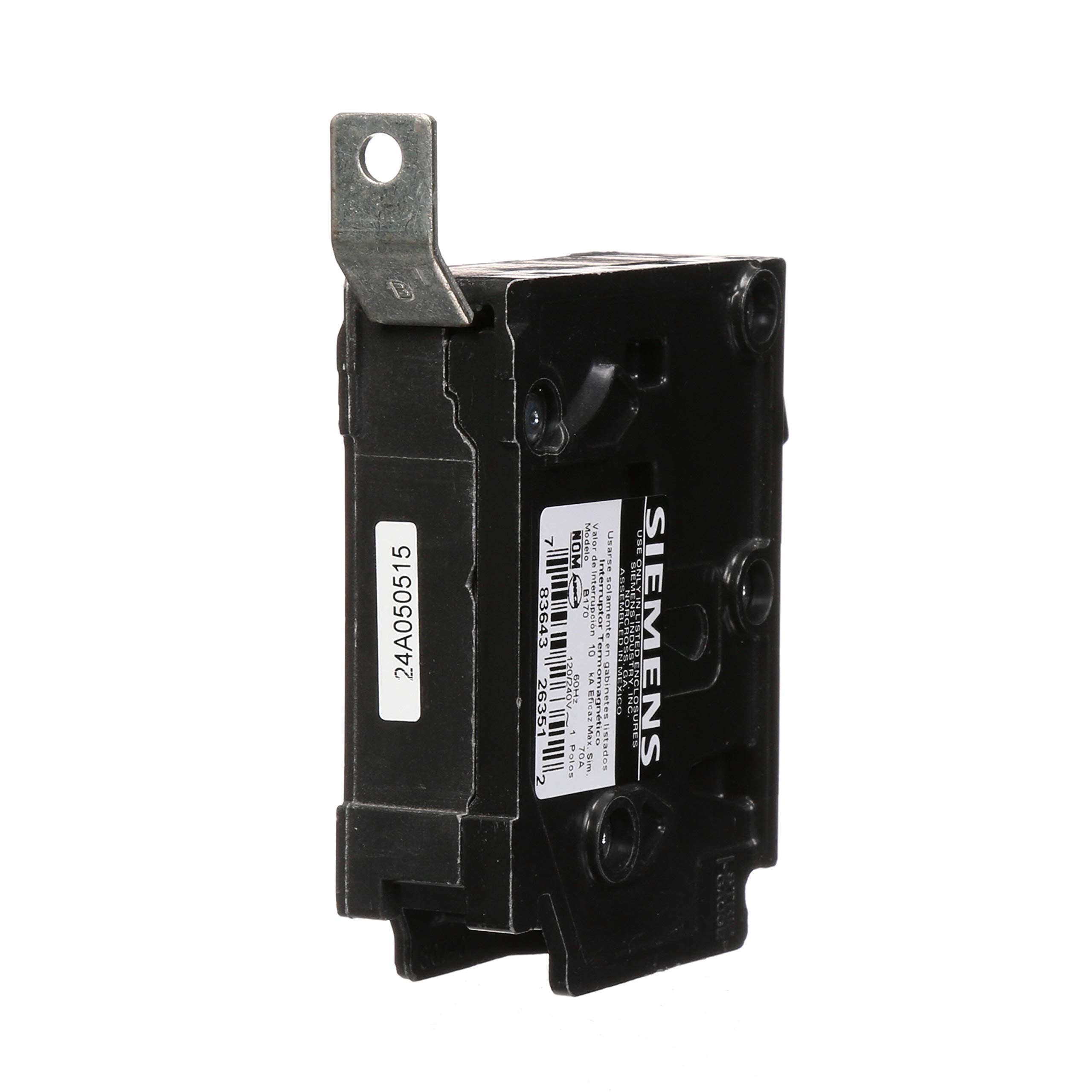

Siemens B170 Low Voltage Molded Case Circuit Breaker 70 A (1 Pole) BL170

Product Description

Siemens B170 is a low-voltage molded case circuit breaker for panelboard mounting. This single-pole BL frame device features a thermal-magnetic trip, is rated 120 VAC and 70 A, and provides a 10 AIC interrupting rating. It is listed to UL 489 and certified to CSA and NOM standards for electrical distribution in residential and commercial panel applications.

• Single-pole BL frame, thermal-magnetic trip rated 70 A at 120 VAC
• Interrupting rating: 10 AIC; UL 489 listed, CSA and NOM certified
• Panelboard mounting for lighting and electrical distribution applications

Product Highlights

Single-pole, 70 A thermal-magnetic molded case breaker; 120 VAC rating; 10 AIC interrupting rating; UL 489/CSA/NOM certified; panelboard mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B170
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: B170
• Alternate Part Number: BL170
• Brand: Siemens
• Model/MPN: B170
• Frame Type: BL
• Voltage Rating: 120 VAC
• Amperage Rating: 70 A
• Number of Poles: 1
• Trip Type: Thermal-magnetic
• Interrupting Rating: 10 kAIC (original listed as 10 AIC; likely missing 'k')
• Mounting Type: Panelboard mounting
• Application: Electrical distribution
• Standards/Certifications: UL 489; CSA; NOM
• Country of Origin: Mexico
• Terminal Type: Load lug
• UPC: 783643263512
• GTIN: 00783643263512
• Dimensions: 1 in W x 3 in D x 3-3/4 in H
• Weight: 113 g
