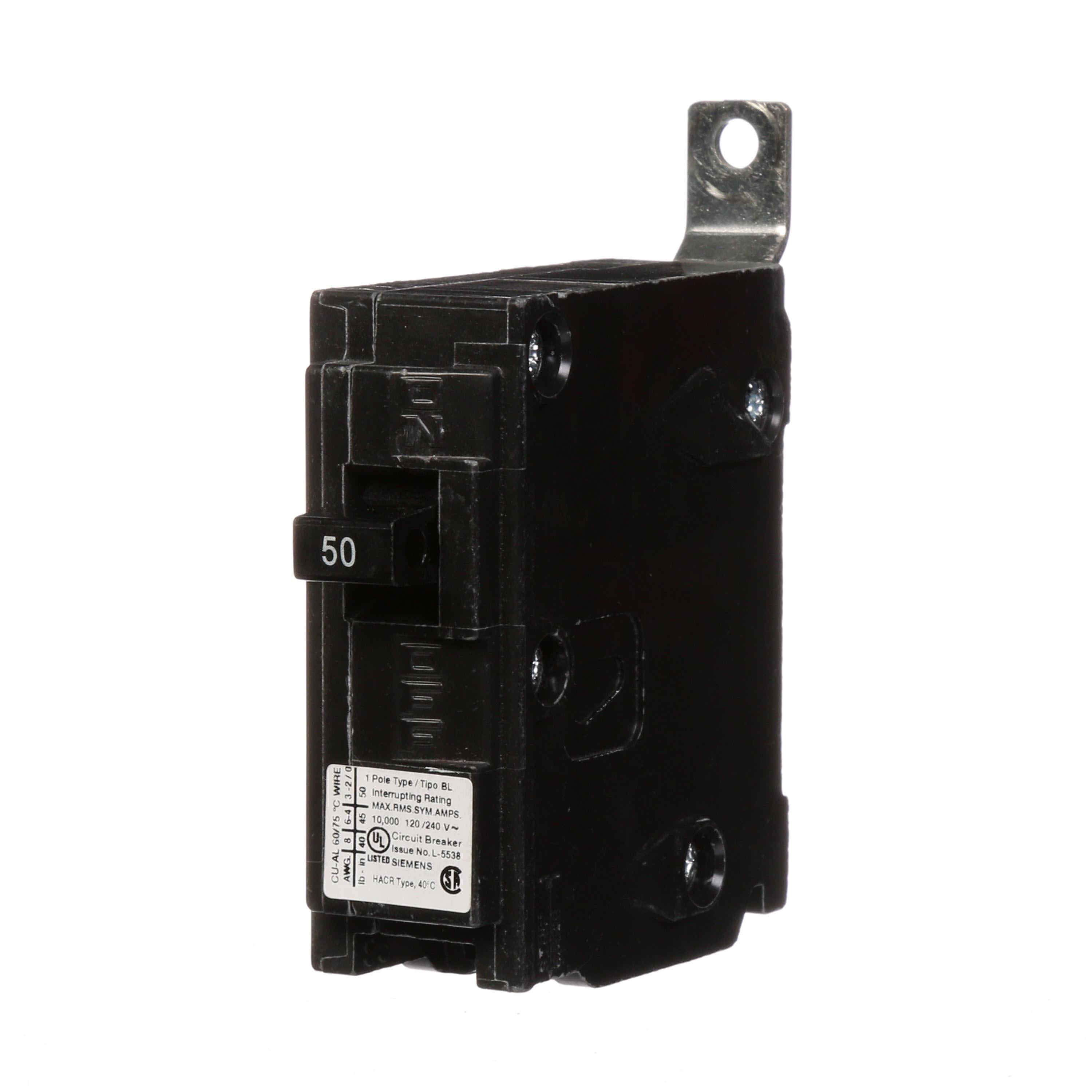

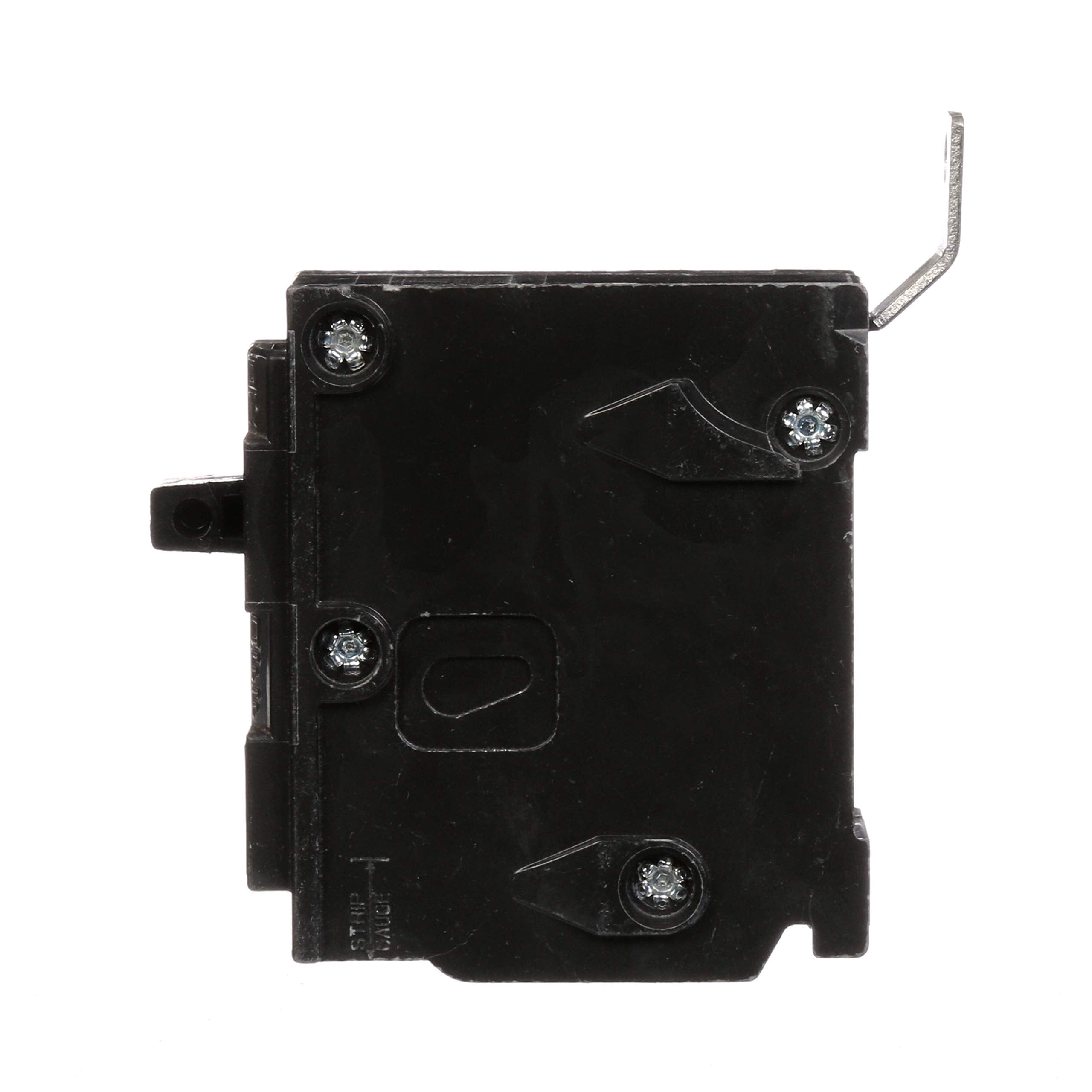

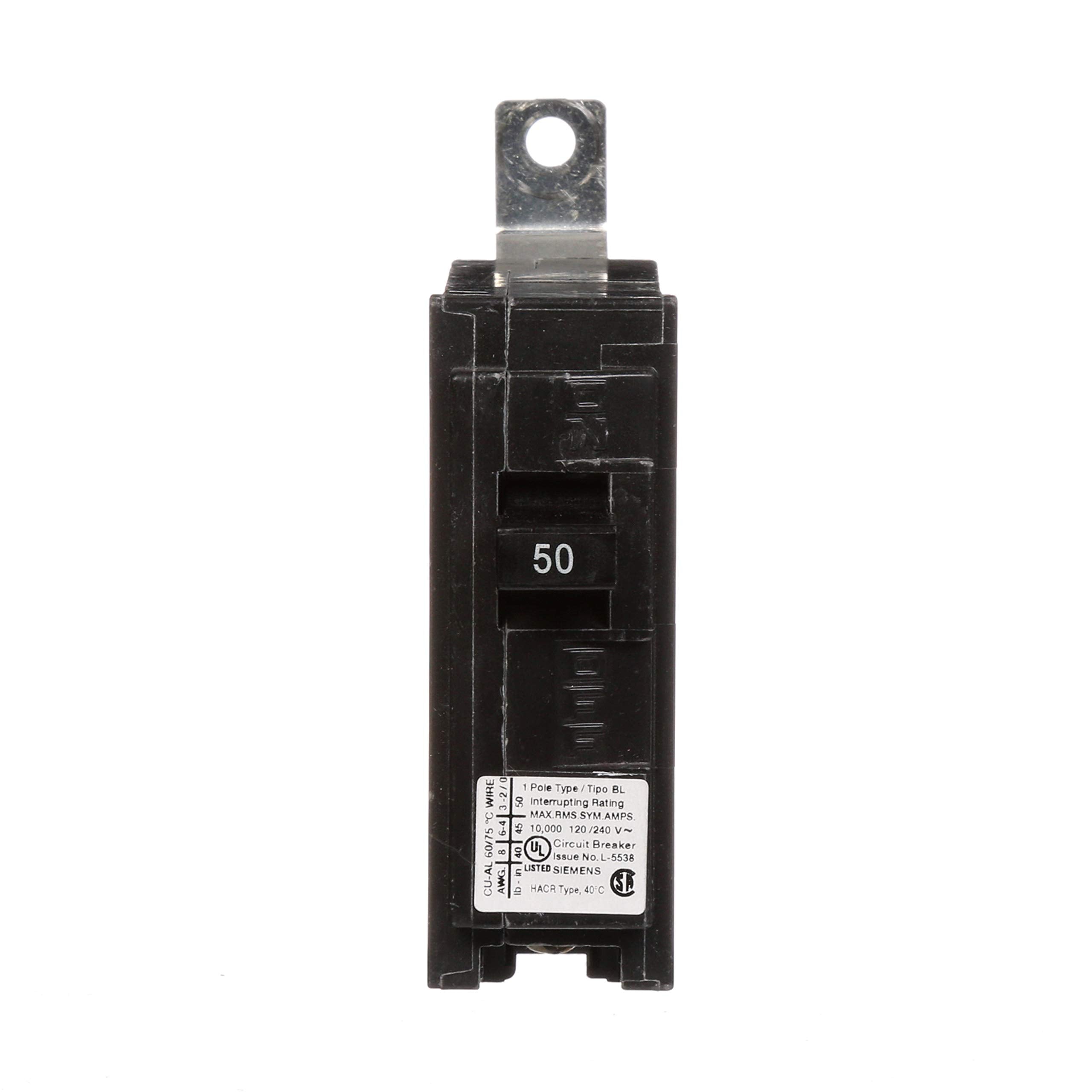

Siemens B150 1-Pole 50 Amp 120 Volt 10 K Circuit Breaker

Product Description

The Siemens B150 is a type BL molded case circuit breaker with thermal-magnetic technology. This 1-pole breaker operates at 120V with a 50A current and a 10kA interrupting capacity. It is designed for panel board mounting and senses overcurrents, measuring the amount and tripping to prevent damage. Suitable for electrical distribution applications.

• UL Listed
• Panel board mounting
• Single pole

Product Highlights

Molded case circuit breaker with thermal-magnetic trip. Designed for 120V systems, 50A current, and 10kA interrupting rating. Suitable for panelboard mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B150
• Country of Origin: MEX

Technical Specifications

• Poles: 1
• Voltage: 120 V AC
• Amperage: 50 A
• Interrupting Capacity: 10 kA
• Type: BL Molded Case Circuit Breaker
• Technology: Thermal-Magnetic
• Brand: SIEMENS
• Model / MPN: B150
• Product Type: CIRCUIT_BREAKER
• Frequency: 60 Hz
• Interrupting Rating: 10 kiloampere at 120/240 vac (ul)
• Trip: Thermal Magnetic Trip
• Phase: 1 ph
• Connection: Bolt-On Connection
• Wire: 8 to 6 AWG, 8 to 4 AWG Wire
• Mounting: Panel Mounting
• Temperature: 40 deg C
