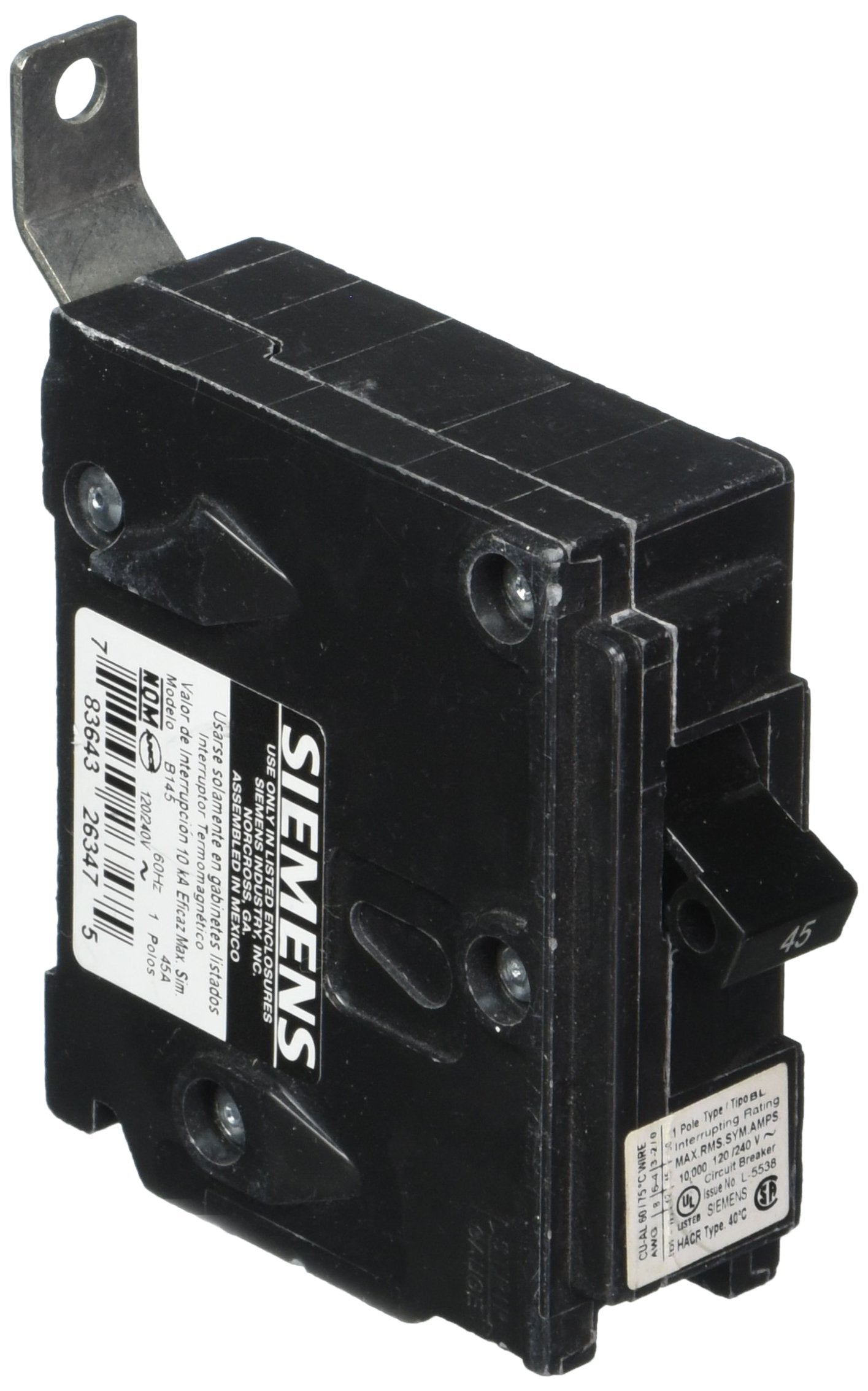

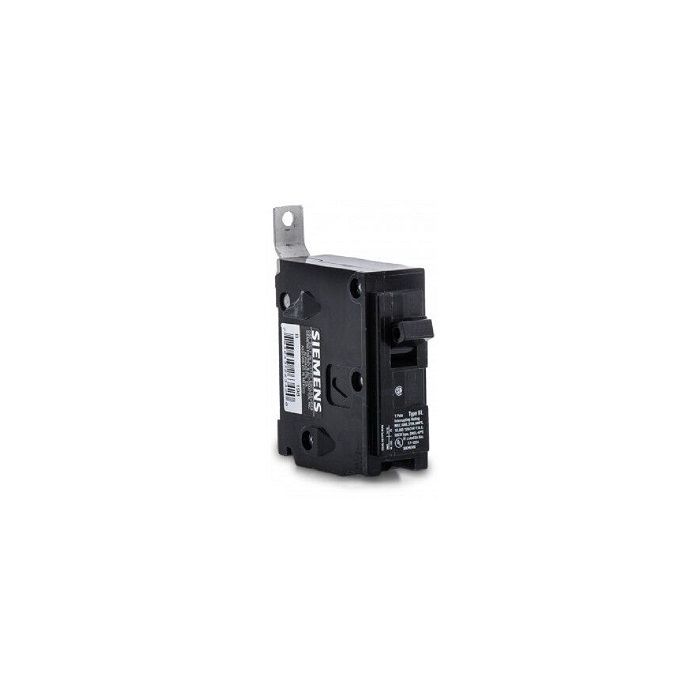

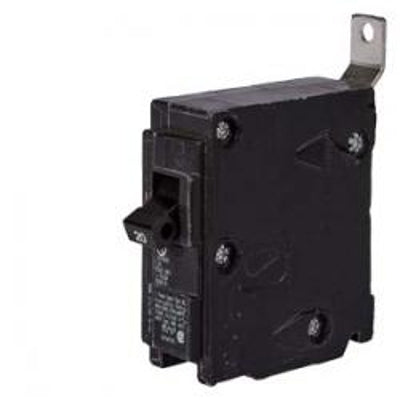

Siemens B145 1 Pole, 45A, BL Bkr

Product Description

The Siemens B145 is a 1 Pole, 45A, BL Bkr designed for electrical distribution applications. This panel board mounted circuit breaker is a non-interchangeable trip molded case circuit breaker. It has a thermal magnetic trip range and a bolt-on connection type.

• UL Listed
• Panel board mounting
• Single pole

Product Highlights

The Siemens B145 circuit breaker provides reliable circuit protection in a compact design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B145
• Country of Origin: Mexico

Technical Specifications

• Type: BL
• Brand: Siemens
• Current: 45 Amp
• Voltage: 120 Volt
• Trip Range: Thermal Magnetic
• Applications: Electrical Distribution
• Connection Type: Bolt-On
• Number of Poles: 1 Pole
• Interrupt Rating: 10 AIC
• Mounting: Panel board mounting
• Circuit Breaker Type: Standard
• AIR Rating: 10 kA
• Voltage Rating: 120/240 VAC
• Amp Rating: 45
• Poles: Single Pole
• Interrupting Capacity: 10KAIC
• UPC: 783643263475
• Standards: UL Listed, HACR
