Product Description

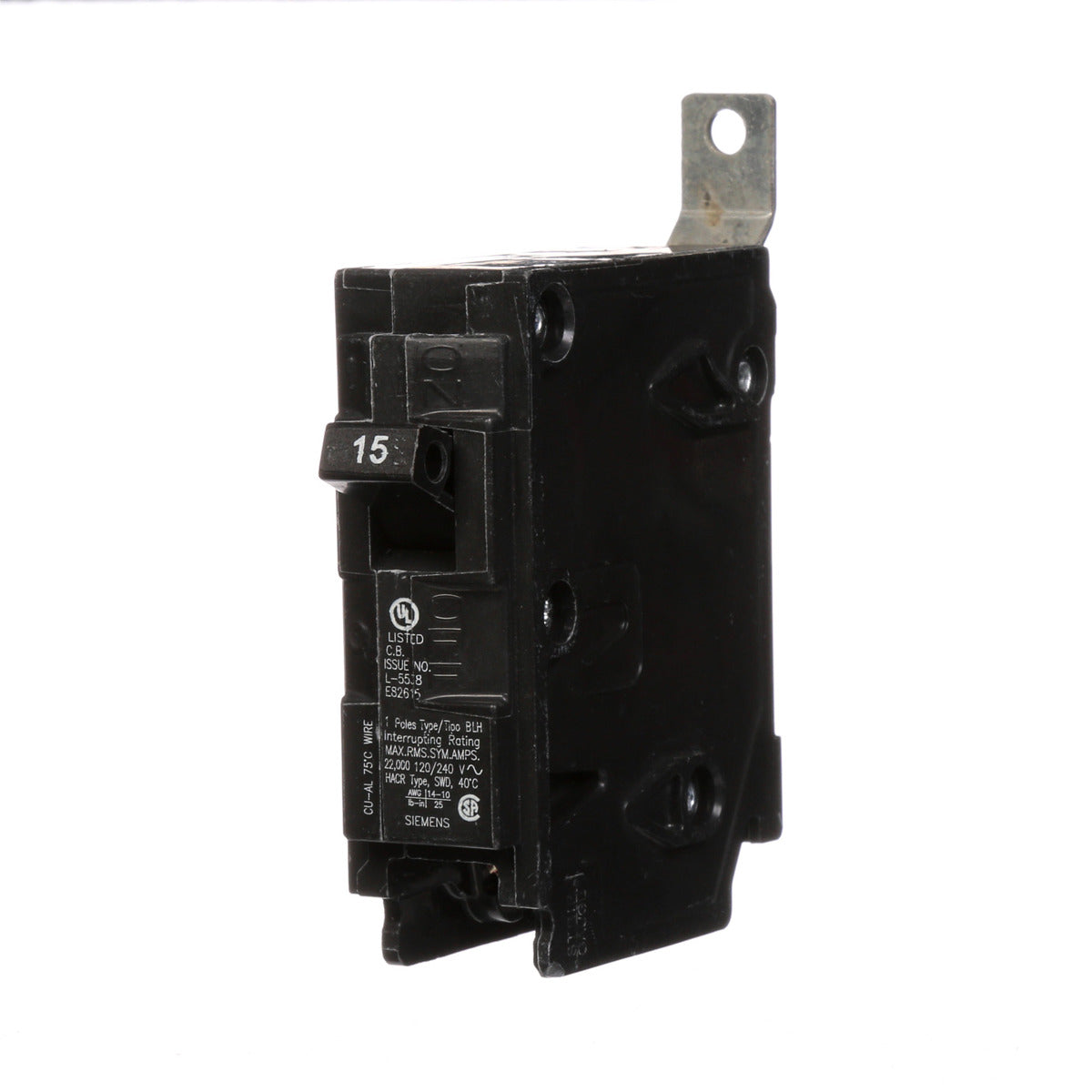

The Siemens B115H is a 1-pole molded case circuit breaker with a thermal-magnetic trip mechanism. It operates at 15 amps and is suitable for 120 volts. This circuit breaker has a maximum interrupting capacity of 22 kiloamperes. The design allows for bolt-on installation, providing reliable electrical protection.
- Type BLH molded case circuit breaker.
- Rated for 15 Amp and 120 Volt AC.
- Features a 22 kA interrupting capacity for enhanced safety.
Product Highlights
The Siemens B115H is essential in electrical distribution systems, helping to protect circuits from overloads and short circuits.
Product Information
Standard Information
-
Brand: Siemens
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: B115H
-
MPN: B115H
-
Voltage Rating: 120 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 1
-
Interrupt Rating: 22 kAIC
-
Depth: 3 inches
-
Width: 3.4 inches
-
Height: 3.5 inches
-
Weight: 0.263 lb
-
Trip Type: Thermal Magnetic
-
Connection Type: Bolt-On
-
Application: Electrical Distribution
-
Standard: UL 489
