Siemens ASK71.9 Universal crank arm fits 3/8 in. to 1 in.

Product Description

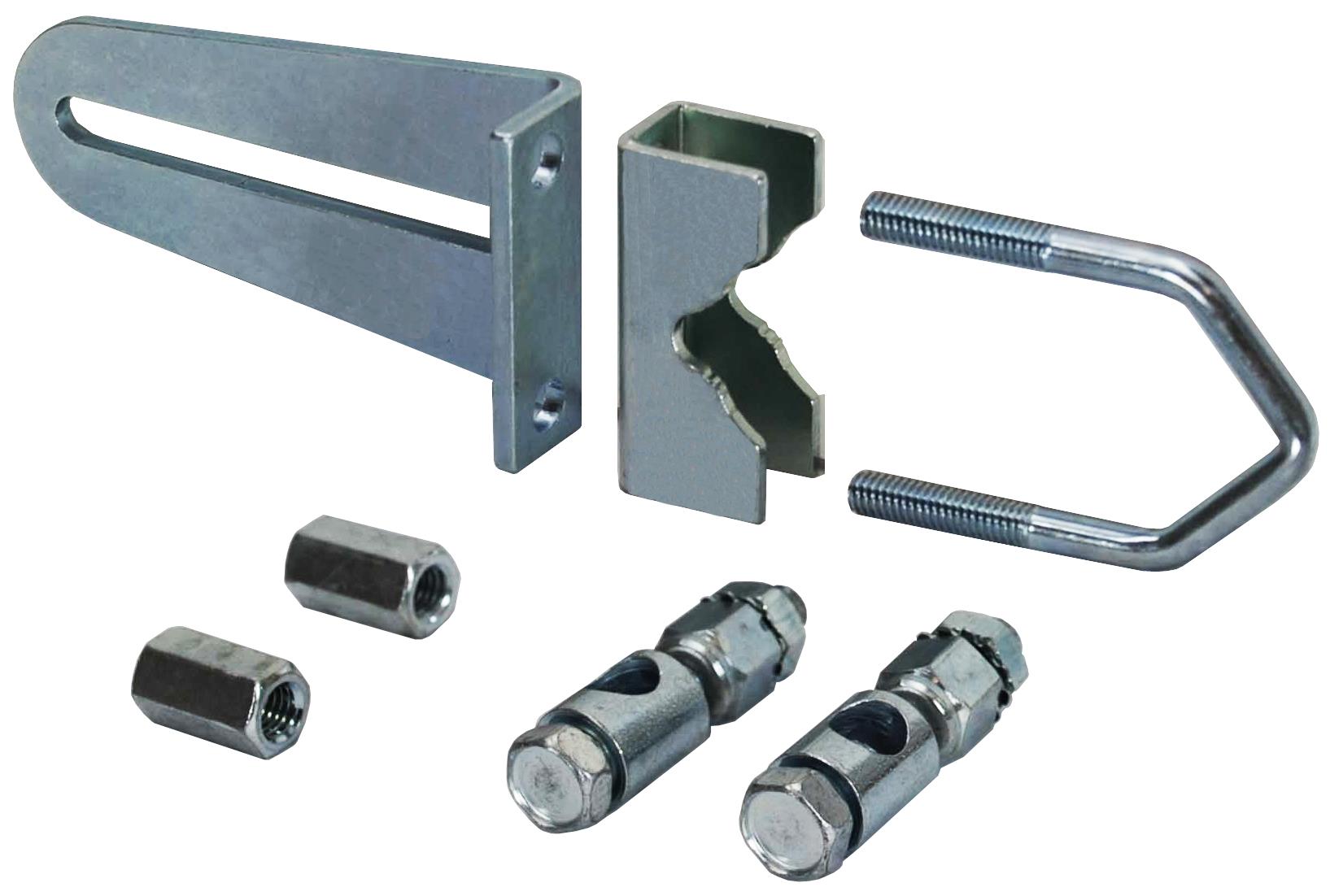

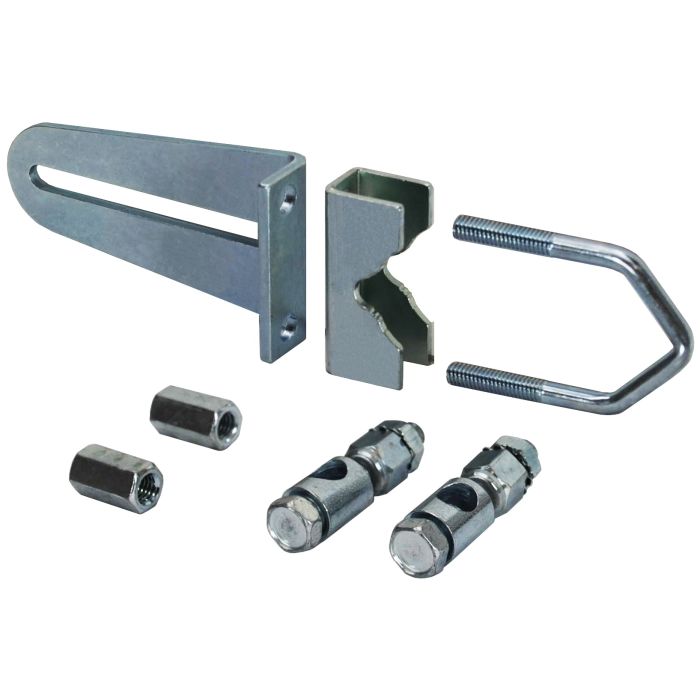

The Siemens ASK71.9 is a universal crank arm designed for linear HVAC applications where a ball-joint connection is not possible. It converts linear movement to rotary motion for mounting on an adjacent actuator shaft and fits damper shaft sizes from 3/8 in. to 1 in. (9.5 to 25 mm). The arm includes ball joints for an 8 mm push rod and is compatible with ASK71.11, ASK71.13 and ASK71.14.

• Fits damper shaft sizes 3/8 in. to 1 in. (9.5 to 25 mm) for linear-to-rotary linkage
• Includes ball joints sized for an 8 mm diameter push rod
• Compatible with actuator accessories ASK71.11, ASK71.13 and ASK71.14; weight approx. 0.45 lb

Product Highlights

Universal crank arm for damper shafts; converts linear to rotary motion; fits 3/8 in. to 1 in.; compatible with ASK71.11/13/14.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: ASK71.9

Technical Specifications

• Brand: Siemens
• MPN: ASK71.9
• Manufacturer: Siemens Building Technologies
• Product Name: Universal crank arm
• Product Type: Crank arm / Universal lever
• Application: Linear damper shaft connection when ball-joint connection is not possible
• Fits Shaft Sizes: 3/8 in. to 1 in. (9.5 to 25 mm)
• Compatible With: ASK71.11, ASK71.13, ASK71.14
• Push Rod Ball Joint Diameter: 8 mm
• Weight: 0.45 lb
• GTIN/EAN: 4047625019303
• Category: Valve accessory / Mechanical components / HVAC
• Number of Items: 1
