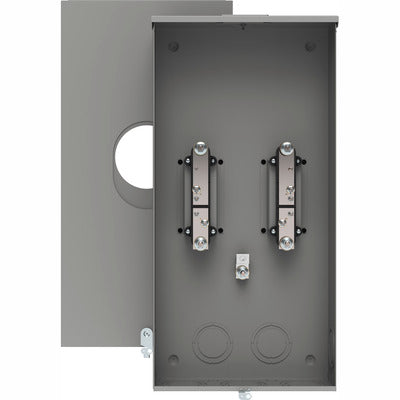

Siemens 9810-8507 Talon® 10-Cutout 1-Position Type K4UT Meter Socket 400 A

Product Description

The SIEMENS 9810-8507 TALON® meter socket is a 10-Cutout 1-Position Type K4UT, designed for meter mounting. Rated at 300 VAC and 400 A, this single-phase socket features a NEMA 3R enclosure for commercial, indoor, and outdoor applications. It supports overhead/underground feed and includes a heavy-duty closing plate hub with a 4.281-inch hub size and ringless cover.

• Features H56495 rake bypass and ground lug.
• Heavy duty construction using 1/2 in plated bolts.
• Constructed from steel with a plated copper current path.

Product Highlights

This Siemens TALON® meter socket ensures reliable performance with its robust design and quality materials, suitable for diverse metering needs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 9810-8507
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• UNSPSC: 39121102
• Hub Size: 4.281
• Application: Commercial, Indoor and Outdoor Applications
• Mounting Type: Surface
• Terminal Type: Line/Load Lug/Bolted-In
• Enclosure Type: NEMA 3R
• Voltage Rating: 300
• Type: 10-Cutout 1-Position Type K4UT
• Hub Type: HD Closing Plate
• Cover Type: Ringless
• Amperage Rating: 400
• Primary brand: Siemens
• Amps: 400
