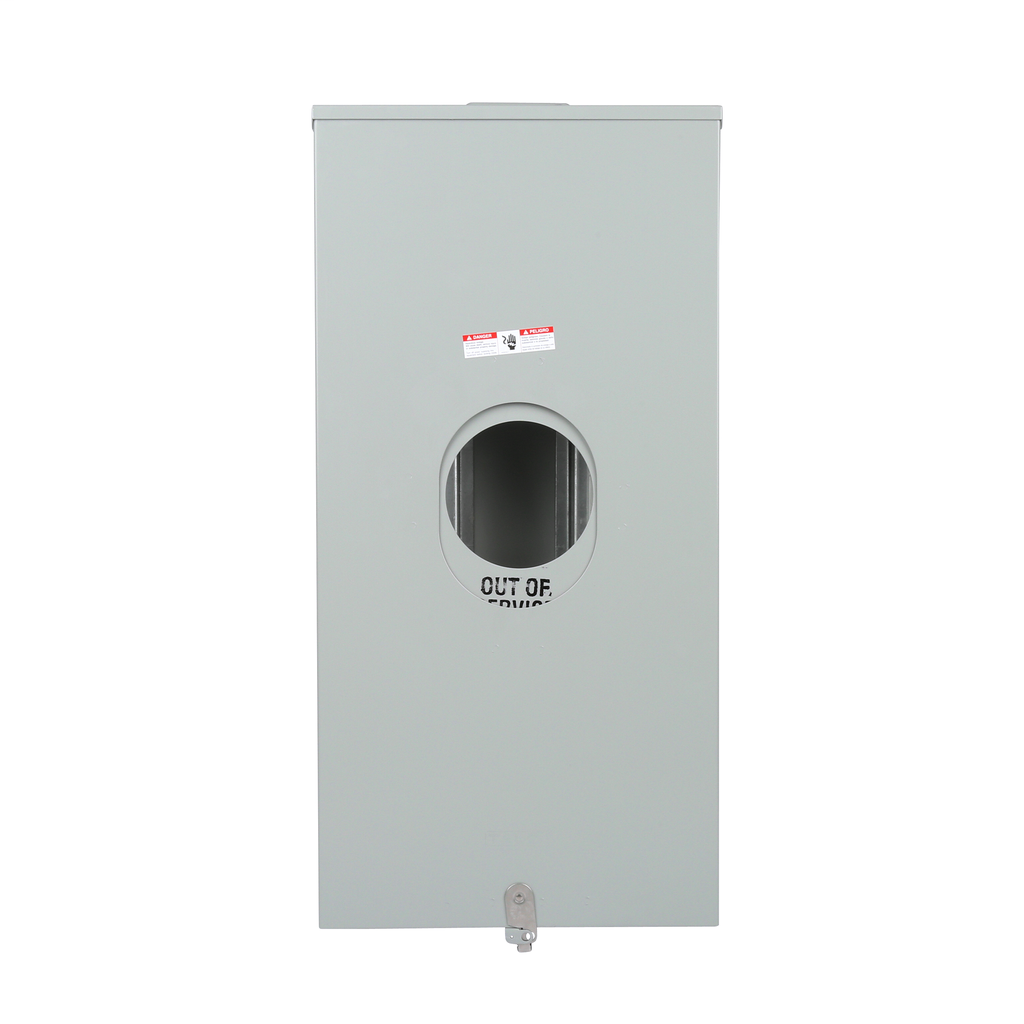

Siemens 9810-8502 300 VAC 400 amp 1-phase 3-wire 1-position NEMA 3R bolt-in ringless meter mounting equipment

Product Description

The SIEMENS 9810-8502 is a TALON Meter Pak/Socket, rated for 400A, 1 Pole, and 1 Phase. This commercial-grade K4UT model includes a cover plate and lug. It features OH/UG cable entry and a steel enclosure, and is UL rated. Designed for surface mounting, it handles 300 Volts and is suitable for various commercial applications, ensuring reliable electrical metering.

• With cover plate, H56495 rake bypass and ground lug
• Heavy duty construction using 1/2 in plated bolts
• Steel construction

Product Highlights

Type K4UT 10-Cutout 1-Position meter socket with NEMA 3R enclosure, 300 VAC, 400 A, 1 Phase, supporting overhead/underground feed.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 9810-8502

Technical Specifications

• Amperage: 400 Amp
• Application: Commercial
• Cable Entry: OH/UG
• Enclosure Material: Steel
• Mounting Type: Surface Mounting
• Number of Holes: 10
• Phase: 1 Phase
• Operating Temperature: Average Ambient
• Type: Type K4UT 10-Cutout 1-Position
• Voltage Rating: 300 Volt
• UNSPSC: 39121102
• Hub Size: 4.281 in
• Wire Size: 6 AWG to 350 kcmil
• Terminal Type: Line/Load Lug/Bolted-In
• Enclosure Type: NEMA 3R
• Hub Type: HD Closing Plate
• Model: TALON
• Poles: 1
• Socket Configuration: K4UT with Cover Plate and Lug
• Certification: UL Rated
