Siemens 8WH6003-0AF00 IPO Terminals Through-Type Terminals

Product Description

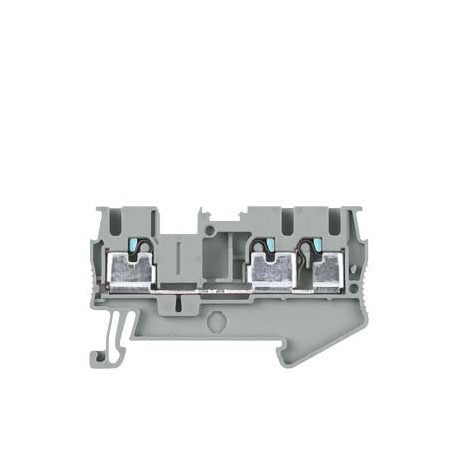

The SIEMENS 8WH6003-0AF00 is an IPO terminal, through-type terminal. These terminals feature a 5 mm terminal contact spacing and are designed for DIN rail 35 mm mounting. They are suitable for various electrical connections, ensuring secure and reliable performance in industrial applications.

• Non cancellable - Non Returnable
• Operating voltage rated value: 800 V
• Connectable conductor cross-section: solid minimum 0.34 mm² to maximum 4 mm²

Product Highlights

The SIEMENS 8WH6003-0AF00 IPO terminal ensures reliable electrical connections with a focus on safety and durability.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH6003-0AF00
• Country of Origin: Germany

Technical Specifications

• terminal contact spacing: 5 mm
• operating voltage / rated value: 800 V
• combustibility class according to UL 94: V0
• operational current / rated value: 30 A
• color: grey
• number of terminal levels: 1
• number of terminal points / per terminal level: 3
• stripped length: 10 mm
• connectable conductor cross-section / solid minimum: 0.34 mm²
• connectable conductor cross-section / solid maximum: 4 mm²
• connectable conductor cross-section / stranded minimum: 0.14 mm²
• connectable conductor cross-section / stranded maximum: 2.5 mm²
• connectable conductor cross-section / finely stranded with core end processing / minimum: 0.1 mm²
• connectable conductor cross-section / finely stranded with core end processing / maximum: 3 mm²
• connectable conductor cross-section / finely stranded without core end processing / maximum: 0.1 mm²
• type of connection 1: plug terminal connection
• type of connection 2: plug terminal connection
• position / of the terminal: top
• height / with lowest-profile installation: 38.5 mm
• length: 61 mm
• fastening method: DIN rail 35 mm
• material / of the insulating body: Thermoplast
• ambient temperature / during operation minimum: -25 °C
• ambient temperature / during operation maximum: 55 °C
