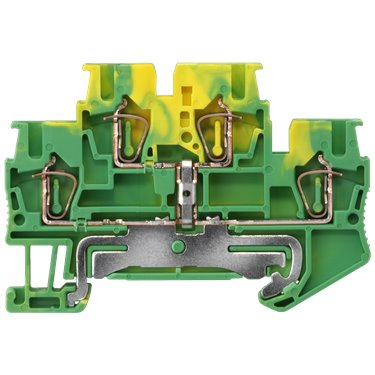

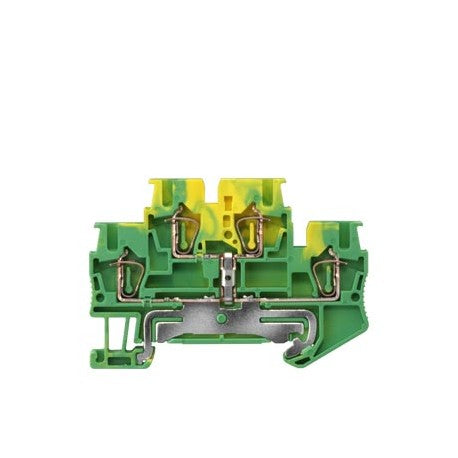

Siemens 8WH20200CF07 Term Block,Sprng,Ground,2.5,Gnye,4-Conn, 8WH2020-0CF07

Product Description

The Siemens 8WH20200CF07 is a TERM BLOCK,SPRNG,GROUND,2.5,GNYE,4-CONN, 8WH2020-0CF07. This terminal block features a spring-loaded connection and is designed for DIN rail mounting. It is suitable for conductors with a cross-section of 0.08-2.5 mm2. It is used for industrial automation, MRO, pneumatic, motion, electronic, hydraulic, HVAC and electrical control equipment.

• Spring-loaded connection
• Suitable for conductors with a cross-section of 0.08-2.5 mm2
• DIN rail mounting

Product Highlights

The Siemens 8WH20200CF07 is a reliable and versatile terminal block for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20200CF07
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20200CF07
• Type: Screw Terminal Block
• Material: PBT
• Model Number: N/8WH20200CF07
• product brand name: ALPHA
• product designation: PE through-type terminal
• insulation material: thermoplastic
• terminal contact spacing: 5.2 mm
• combustibility class according to UL 94: V0
• product feature / PEN function: No
• product component / required / end cover plate: No
• number of terminal levels: 2
• number of terminal points / per terminal level: 2
• stripped length: 10 mm
• connectable conductor cross-section / solid minimum: 0.14 mm
• connectable conductor cross-section / solid maximum: 4 mm
• connectable conductor cross-section / stranded minimum: 0.2 mm
• connectable conductor cross-section / stranded maximum: 4 mm
• connectable conductor cross-section / finely stranded with core end processing / minimum: 0.2 mm
• connectable conductor cross-section / finely stranded with core end processing / maximum: 2.5 mm
• connectable conductor cross-section / finely stranded without core end processing / minimum: 2.5 mm
• connectable conductor cross-section / finely stranded without core end processing / maximum: 2.5 mm
• type of connection 1: spring-loaded terminal
• type of connection 2: spring-loaded terminal
• position / of the terminal: top
• height / with lowest-profile installation: 47.5 mm
• length: 67.5 mm
• fastening method: DIN rail 35 mm
• net weight: 15 g
• material / of the insulating body: Thermoplastic
• ambient temperature / during operation minimum: -25 C
• ambient temperature / during operation maximum: 35 C
• PEN function possible (EF002544): false
• Connectable conductor cross section fine-strand without cable end sleeve (EF007341): ['2.5', '2.5'] mm
• Connectable conductor cross section fine-strand with cable end sleeve (EF007339): ['0.2', '2.5'] mm
• Connectable conductor cross section solid-core (EF007337): ['0.14', '4.0'] mm
• Connectable conductor cross section multi-wired (EF007343): ['0.2', '4.0'] mm
• Type of electrical connection 1 (EF002526): Spring clamp connection
• Type of electrical connection 2 (EF002527): Spring clamp connection
• Connection position (EF008219): Above
• Number of levels (EF002659): 2
• Number of clamp positions per level (EF002660): 2
• Mounting method (EF000003): DIN rail (top hat rail) 35 mm
• Material insulation body (EF007543): Thermoplastic
• Operating temperature (EF002393): ['-25', '35'] C
• Inflammability class of insulation material according to with UL94 (EF002521): V0
• Width/grid dimension (EF002522): 5.2 mm
• Height at lowest possible mounting height (EF002523): 47.5 mm
• Length (EF001438): 67.5 mm
• Closing plate required (EF002525): false
