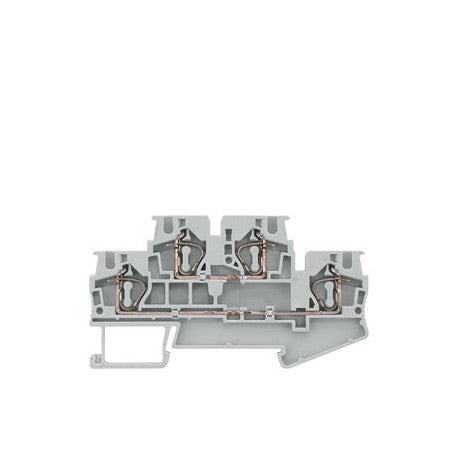

Siemens 8WH20200AG00 Term Block, Spring, 2-Tier, 4, Gray, 2-Poles

Product Description

The SIEMENS 8WH20200AG00 is a term block with a spring-loaded connection. This two-tier terminal block has a cross-section of 0.5-4 mm2 and a width of 6.2mm. It utilizes a spring loaded connection method, where the tension spring exerts constant pressure on the conductor, ensuring excellent contact stability.

• Space saving design ideal for control gear installations with minimum available space
• Large connection compartment for fast wiring of flexible and rigid conductors
• Constant pressure on the conductor ensures excellent contact stability

Product Highlights

The SIEMENS 8WH20200AG00 term block is a reliable and efficient solution for electrical connections, offering easy installation and secure contact.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20200AG00

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20200AG00
• Color: Gray
• UNSPSC: 39121410
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Terminal Type: Spring-Loaded
• Voltage Rating: 500 V
• Temperature Rating: -25 to 55
• Type: 2-Tier
• Spacing: 6.2 mm
• Amperage Rating: 32 A
• Number of Terminals: 4
• Poles: 2
• Terminal Size: 4 mm
• Tiers: 2
• Connection Type: Spring Loaded
• Block Material: Thermoplastic
• Standards: UL 94
• Application: ALPHA FIX terminal block
