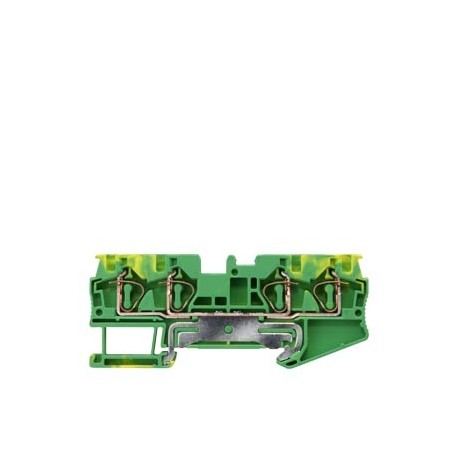

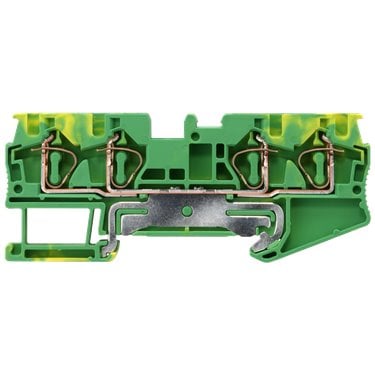

Siemens 8WH20040CG07 term block sprng load ground 4 gnye

Product Description

The Siemens 8WH20040CG07 is a TERM BLOCK SPRNG LOAD GROUND 4 GNYE. This protective conductor terminal features a spring-loaded connection with 4 connection points. Designed for cross-sections of 0.5-4 mm2 and a width of 6.2mm.

• Spring-loaded connection
• Cross-section: 0.5-4 mm2
• Width: 6.2mm

Product Highlights

The Siemens 8WH20040CG07 is a reliable ground terminal block with spring-loaded connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20040CG07
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20040CG07
• Numeric ID: 2510411
• UPC Code: 662643169317
• Manufacturer: Siemens
• Reference: 8WH20040CG07
• Item Code: 8WH20040CG07
• Condition: New
• Sub Brand: Sentron
• Item Name: Ground Terminal Block
• Type: Type PE
• Voltage Rating: 800 V
• Amperage Rating: 40 A
• Mounting Type: 35 mm DIN Rail
• Terminal Size: 4mm2
• Spacing: 6.2 mm
• Connection Type: Spring Loaded
• Block Material: Thermoplastic
• Standards: UL 94
• Application: ALPHA FIX terminal block
• MPNs: 8WH2004-0CG07, SIE8WH20040CG07, 8WH20040CG07
• EAN: 4001869347110
• HS Code: 85369010
