Siemens 8WH20040CF07 Terminal Block Connector Terminal Mod.4Conn

Product Description

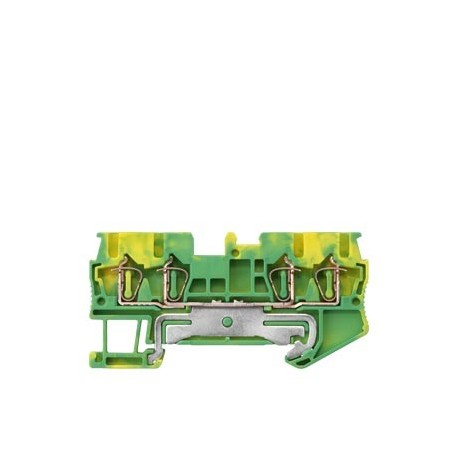

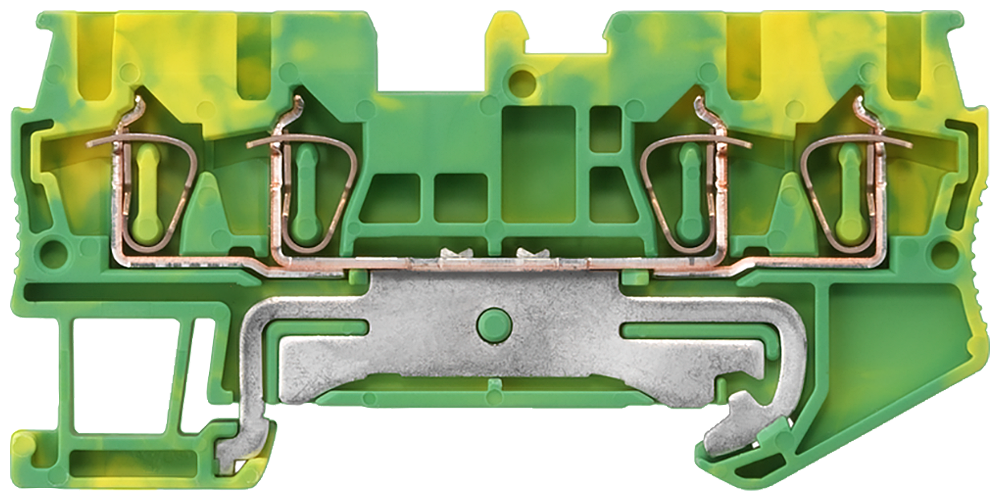

The Siemens 8WH20040CF07 is a terminal block connector with 4 connections. Designed for ALPHA FIX terminal block applications, it supports 28 to 12 AWG wire. Constructed from thermoplastic material, it mounts on a 35mm DIN rail and features a spring connection type. This through-type terminal is rated for 400 VAC and 16 A.

• ALPHA FIX terminal block
• Grounded
• Four connection points

Product Highlights

The Siemens 8WH20040CF07 terminal block ensures reliable grounding and secure connections for various electrical applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20040CF07
• Country of Origin: DE

Technical Specifications

• UNSPSC Code: 41110000
• Brand: Siemens
• Color: Green/Yellow
• Manufacturer Part Number: 8WH20040CF07
• MPN: 8WH2004-0CF07
• Condition: New
• Alternate Catalog Number: 8WH2004-0CF07
• Amperage Rating: 16 A
• Application: ALPHA FIX terminal block
• Catalog Number: 8WH20040CF07
• Connection: Spring
• Connection Type: Spring
• Country of Origin: DE
• Material: Thermoplastic
• Mounting: DIN RAIL 35MM
• Mounting Type: DIN Rail
• Number Of Terminals: 1
• Spacing: 5.2 mm
• Standard: UL 94
• Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
• Sub Brand: SENTRON
• Terminal Size: 0.08 to 2.5 mm
• Type: THROUGH-TYPE TERMINAL
• UNSPSC: 39121410
• Voltage Rating: 400 VAC
• Wire Size: 28 to 12 AWG
• Reference: 8WH20040CF07
• Item Code: 8WH20040CF07
