Siemens 8WH20030CH07 term block

Product Description

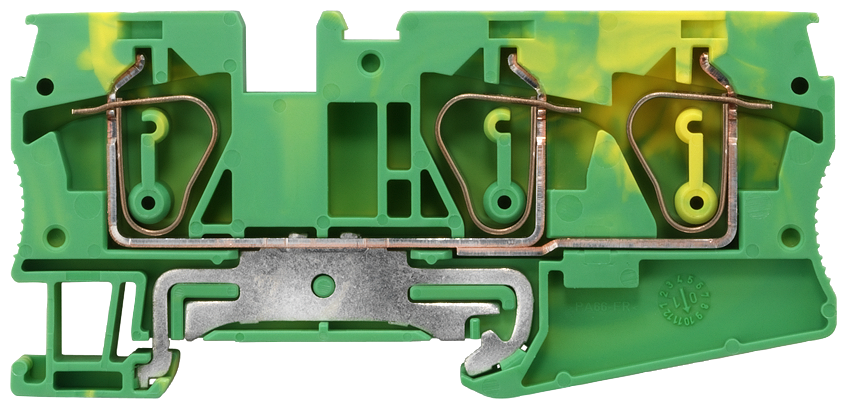

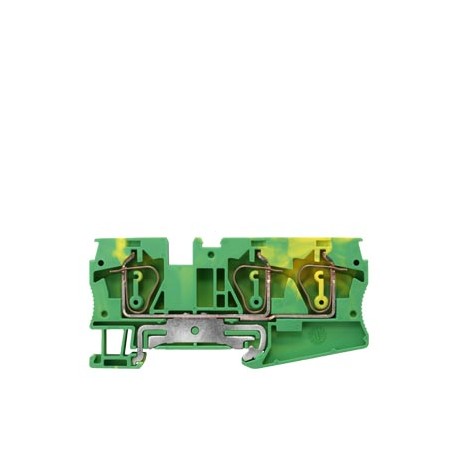

The Siemens 8WH20030CH07 is a TERM BLOCK, SPRNG, GROUND, 6, GNYE, 3-CONN. Protective conductor terminal with spring-loaded connection, features 3 connection points and cross-section: 0.5-6 mm2. It has a width of 8.2mm and is green-yellow in color. It is suitable for industrial applications.

• Spring clamp connection
• Connectable conductor cross section: 0.5-6 mm2
• Width: 8.2mm

Product Highlights

The Siemens 8WH20030CH07 is a reliable terminal block with spring connection, ideal for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20030CH07
• Country of Origin: DE

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20030CH07
• Manufacturer: Siemens
• Reference: 8WH20030CH07
• Item Code: 8WH20030CH07
• Condition: New
• Closing plate required: true
• Colour: Other
• Connectable conductor cross section fine-strand with cable end sleeve: 0.25 mm
• Connectable conductor cross section multi-wired: 0.199999999 mm
• Connectable conductor cross section solid-core: 0.199999999 mm
• Country of Origin: DE
• Depth: 42.2 mm
• Height: 90.5 mm
• Inflammability class of insulation material acc. with UL94: V0
• Material insulation body: Other
• Mounting method: DIN rail (top hat rail) 35 mm
• Number of clamp positions per level: 3
• Number of levels: 1
• Operation temperature: 105 °C
• PEN function possible: false
• Type of electrical connection 1: Spring clamp connection
• Type of electrical connection 2: Spring clamp connection
• Width: 8.149999999 mm
• Number Of Contacts: 1 - 10
• Conductor Size: 11 - 20 AWG
• Connection Method: Screw Connection
• Type: Screw Terminal Block
• Number of Pole: 3
• Contact Material: Copper Alloy
• Application: Industrial
• Model Number: N/8WH20030CH07
