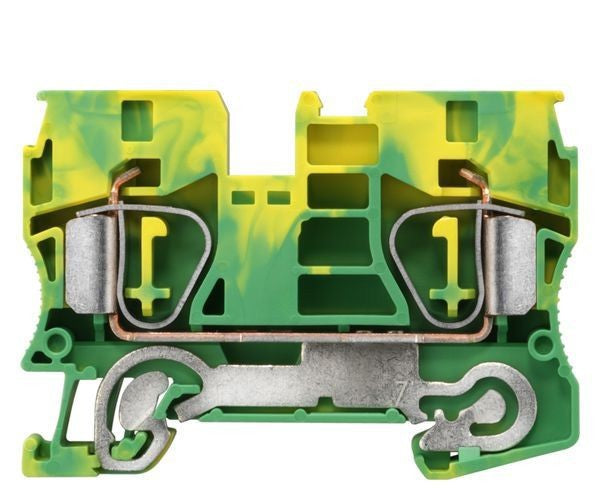

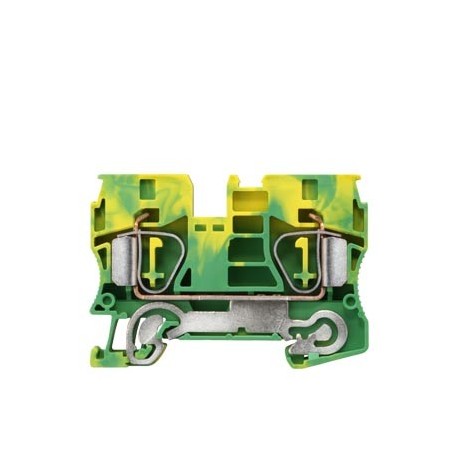

Siemens 8WH20000CJ07 Term Block,Sprng Load,Ground,10

Product Description

The Siemens 8WH20000CJ07 is a TERM BLOCK, SPRNG LOAD, GROUND,10. With the spring loaded connection method, the tension spring exerts constant pressure on the conductor, which ensures excellent contact stability, even with applications subject to high levels of vibration. Fast removal by simply pressing the unlatching button.

• Space saving design and conductor routing from above make spring loaded terminals ideal for control gear installations with minimum available space
• Terminals are open at one end and can be closed using the appropriate covers
• Large and unambiguous marking in the center of the terminal is essential for ensuring reliable installation in minimum time

Product Highlights

The Siemens 8WH20000CJ07 is ideal for control gear installations with minimum available space. Each clamping point can also be separately labeled.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20000CJ07

Technical Specifications

• MPN: 8WH2000-0CJ07
• Brand: SIEMENS
• Condition: New Open box
• Material: Thermoplastic
• Mounting Type: 35 mm DIN Rail
• Amperage Rating: 65 A
• Catalog ID: SIE8WH20000CJ07
• Color: Green/Yellow
• Spacing: 10.2 mm
• Temperature Rating: -25 to 35 deg C
• Terminal Type: Spring-Loaded/Through
• Type: Protective Conductor
• Wire Size: 1.5 to 16 sq-mm
• Wire Strip Length: 18 mm
• Standard & Approvals: UL 94, CSA Certified, UL Recognized, CE Certified, WEEE (2012/19/EU)
• Manufacturer: Siemens
• Reference: 8WH20000CJ07
• Item Code: 8WH20000CJ07
• Part #: 8WH2000-0CJ07
• Category: Connector/Terminal/Pin
• Brand Name: Siemens
• Sub Brand: Sentron
• Item Name: Ground Terminal Block
• Conductor Size: 1.5 mm
• Terminal Size: 10mm2
• Connection Type: Spring Loaded
• Block Material: Thermoplastic
• Standards: UL 94
• Application: ALPHA FIX terminal block
• UPC: 662643168921
