Siemens 8WH20000AM00 Term Block,Sprng Load,Thru-Type,35,Gray, 8WH2000-0AM00

Product Description

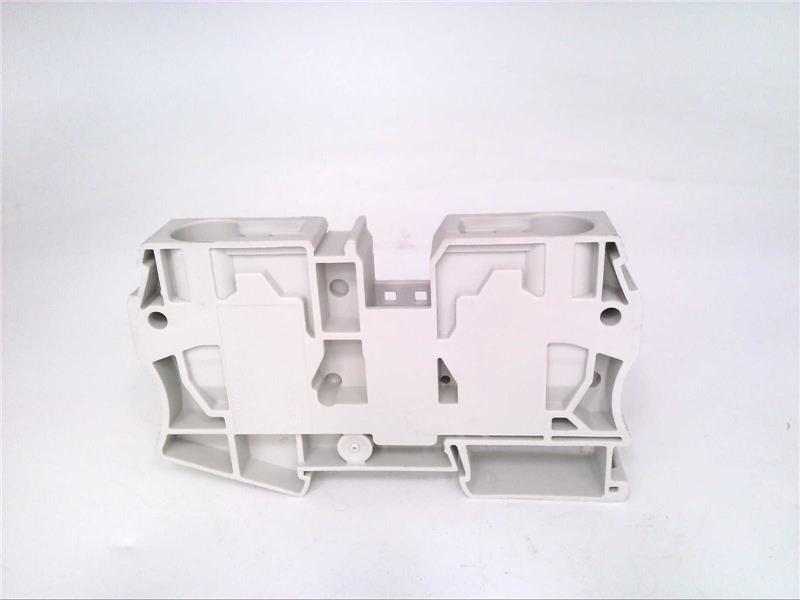

The Siemens 8WH20000AM00 is a terminal block with a spring load, designed as a through-type terminal. It supports a cross-section of 2.5 - 35 mm2 and features a width of 16mm. It utilizes a spring connection to exert constant pressure on the conductor, ensuring contact stability, even in high-vibration environments.

• Spring loaded terminals ideal for control gear installations with minimum available space
• Terminals are open at one end and can be closed using the appropriate covers
• Large and unambiguous marking in the center of the terminal ensures reliable installation

Product Highlights

The Siemens 8WH20000AM00 terminal block is suitable for fast wiring of flexible and rigid conductors, including those with a fitted end sleeve.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20000AM00
• Country of Origin: IT

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20000AM00
• Type: Terminal Block, Feed Through
• Color: Gray
• Material: Thermoplastic
• Wire Size: 35
• Mounting Type: DIN Rail
• Terminal Type: Spring-Loaded
• Voltage Rating: 800
• Wire Strip Length: 25
• Temperature Rating: -25 to 55
• Spacing: 16
• Amperage Rating: 125
• UNSPSC: 39121410
• Reference: 8WH20000AM00
• Model Number: 8WH20000AM00
• Category: Terminal Blk/Strip Wiring Dev
