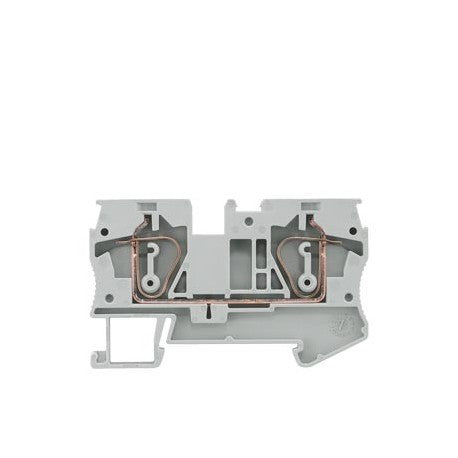

Siemens 8WH20000AH00 term block,sprng load,thru-type,6

Product Description

The Siemens 8WH20000AH00 is a terminal block connector with spring-loaded connection. It ensures excellent contact stability, even with high levels of vibration. Fast removal is achieved by pressing the unlatching button. Ideal for control gear installations with minimum available space.

• Spring-loaded connection
• DIN Rail Mounting
• Suitable for circuit protection applications

Product Highlights

The Siemens 8WH20000AH00 terminal block provides a reliable and efficient solution for electrical connections, with easy installation and secure performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20000AH00

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20000AH00
• UPC Code: 662643168808
• Connection Type: Spring-Loaded
• Terminal Size: 6 mm
• Terminal Type: Through-Type
• Color: Gray
• Material: Thermoplastic
• Wire Size: 10
• Application: Circuit Protection Applications
• Mounting Type: DIN Rail
• Voltage Rating: 800
• Wire Strip Length: 12
• Temperature Rating: -25 to 55
• Amperage Rating: 52
• Number of Terminals: 2
• Tiers: 1
