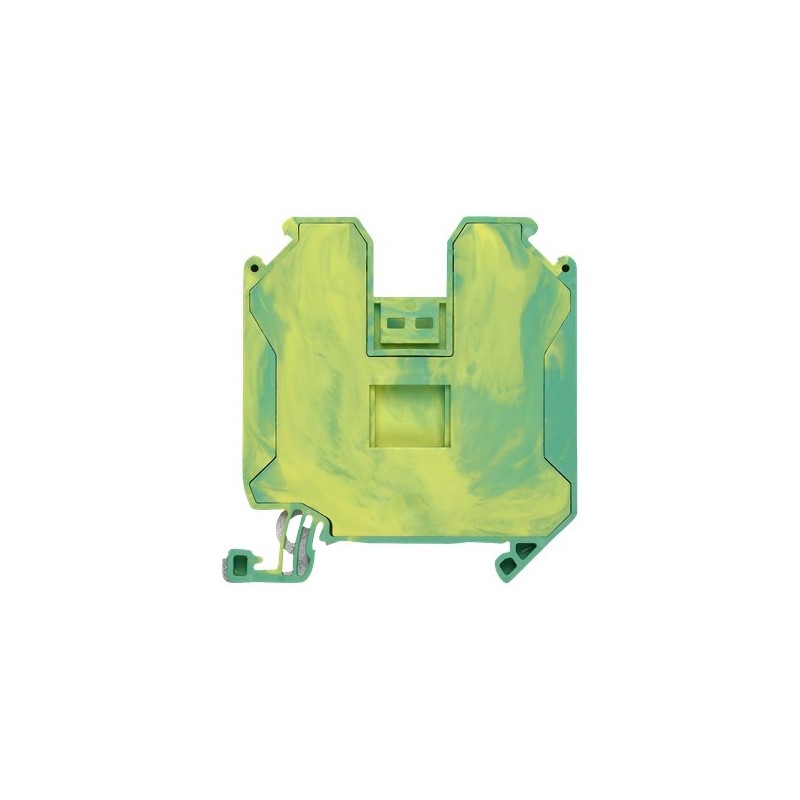

Siemens 8WH1000-0CM07 DIN Rail Terminal Block 10mm²

Product Description

The SIEMENS 8WH1000-0CM07 is a DIN rail terminal block with screw terminals and a 10mm² cross-sectional area. It is designed for through-type PE connections and can handle operating voltages up to 800V. Suitable for a range of industrial applications, this terminal block ensures secure and reliable connections.

• Screw type terminal
• Thermoplast material
• Minimum operating temperature: -25°C

Product Highlights

DIN rail terminal block with screw terminals, suitable for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH1000-0CM07
• Country of Origin: Turkey

Technical Specifications

• MPNs: 8WH1000-0CM07, SIE8WH10000CM07, 8WH10000CM07
• EAN: 4001869403021
• HS Code: 85369010
• Terminal width: 16.0 mm
• Cross-section: 35 mm2
• Brand: Siemens
• Product Type: DIN Rail Terminal Block
• Colour: Green, Yellow
• Sub Type: Feed Through
• Number of Levels: 1
• Series: 8WH1000
• Voltage: 1kV
• Cable CSA: 10mm²
• Fused: No
• Minimum Operating Temperature: -25°C
• Termination Type: Screw
• Hazardous Area Certification: No
• Maximum Operating Temperature: 55°C
• Standards/Approvals: CE, CSA, EAC, UL
