Siemens 8WH1000-0CG07 TERM,SCREW,THRU,T

Product Description

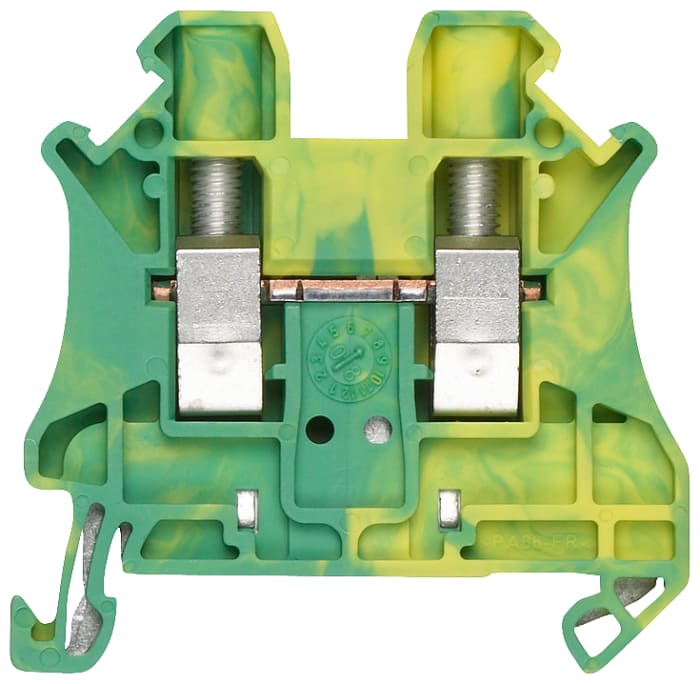

The Siemens 8WH1000-0CG07 is a terminal block with screw connections, designed as a PE/PEN terminal. Constructed from thermoplastic, it is suitable for ALPHA FIX terminal block applications. This green-yellow terminal block supports a conductor size of 4 mm² and mounts on a 35 mm DIN rail.

• Screw-type terminal connection
• Mounts on 35 mm DIN rail
• Made from thermoplastic material

Product Highlights

The Siemens terminal block ensures safe contact and easy disconnection for electrical connections in industrial and building installations. It offers user-friendly installation and reliable safety with standard touch protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH1000-0CG07
• Country of Origin: Germany

Technical Specifications

• Applications: ALPHA FIX terminal block
• Conductor Size: 4 mm
• Connection Type: Screw
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Spacing: 6.2 mm
• Standard: UL 94
• TC Connection: Screw-Type Terminal
• Terminal Size: 4mm2
• Type: Type PE, Feed-Through
• Wire Size: 0.14mm2
• Brand: Siemens
• Sub Brand: Sentron
• Series: 8WH
• Terminal Type: Screw
• Torque Rating: 0.6 to 0.8 N-m
• Wire Strip Length: 9 mm
• BABA Compliant: No
• Product Type: DIN Rail Terminal Block
• Number of Levels: 1
• Voltage: 1kV
• Fused: No
• Minimum Operating Temperature: -25
• Termination Type: Screw
• Maximum Operating Temperature: 55
• Hazardous Area Certification: No
• Standards/Approvals: CE, CSA, EAC, UL
