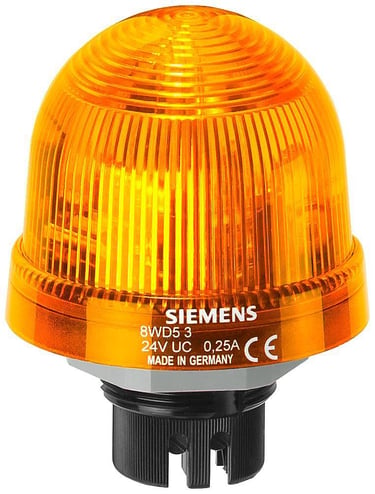

Siemens 8WD5320-5BD Sirius Signal Lamp 24 VAC/VDC

Product Description

The SIEMENS 8WD5320-5BD Sirius Signal Lamp features an LED lamp and a yellow lens, providing a blinklight flash. Operating at 24 VAC/VDC with a current of 45 mA, this lamp has a diameter of 70 mm and an average life of 100000 hours. It is designed for bayonet or flush mounting and is suitable for use in a variety of signaling applications.

• SIRIUS Signal Lamp
• LED Lamp
• Yellow Lens
• Blinklight Flash

Product Highlights

The SIEMENS Sirius Signal Lamp is a reliable and durable signaling solution with a long lifespan and versatile mounting options.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WD5320-5BD
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Part Number #: 8WD5320-5BD
• Light Output: 1.88 cd
• Standards: DIN EN 81346-2|UL Listed|EAC Approved|C-Tick|CE Certified|RoHS Compliant
• Country of Origin: Germany
• Amperage Rating: 45 mA
• Average Life: 100000 hr
• Diameter: 70 mm
• Flash Type: Built-in Electronic Repeat
• Housing Material: Thermoplastic
• Lamp Type: LED
• Lens Color: Yellow
• Mounting Type: Bayonet/Flush
• NEMA Rating: IP65
• Series: 8WD53
• Temperature Rating: -20 to 50 deg C
• Voltage Rating: 24 V AC/DC
• Type: Flashing Light
• Mounting: Bayonet
• Housing: Thermoplastic
• Light Source: LED
• Enclosure Application, Rating: IEC IP65
