Siemens 8WD4428-6XC LED Mounting Hardware Base BA15d 24 VAC/VDC

Product Description

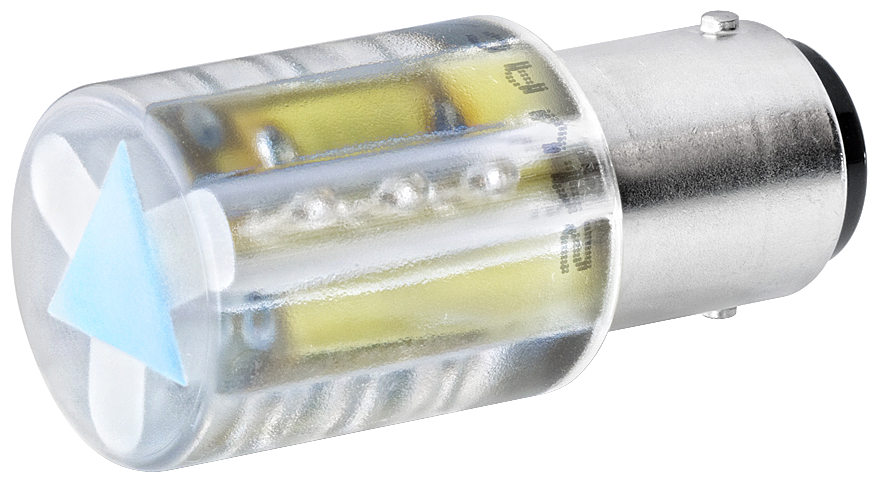

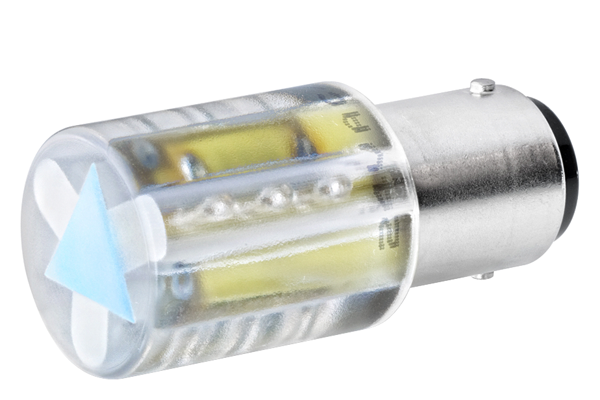

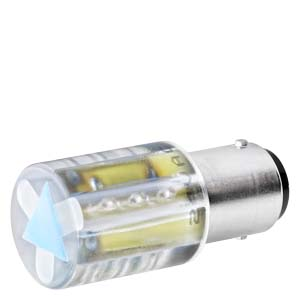

The SIEMENS 8WD4428-6XC is an LED mounting hardware base with a BA15d mounting type. This green LED is designed for use with 50mm and 70mm SIRIUS 8WD signaling columns. It operates at 24V AC/DC. It is suitable for 8WD44 series 50 and 70 mm Dia signaling columns.

• Base BA 15d
• Accessory for signaling columns
• Modular and communication-capable with modern design

Product Highlights

The SIEMENS 8WD4428-6XC LED mounting hardware base is designed for use with SIEMENS signaling columns.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WD4428-6XC
• Country of Origin: DE

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 8WD4428-6XC
• Mounting Type: BA15d
• Series: 8WD Series
• Type: Base
• Lamp Base Type: BA15d
• Lamp Type: LED
• Wattage: 5 W
• Country of origin: DE
• Manufacturer Name: Siemens
• Amperage: 0.015
• Height: 1.19 Inch
• Length: 3.15 Inch
• Width: 1.260 in
• Used On: 8WD4/8WD42 Series Signaling Column
• Voltage Rating: 24 Volt AC at 50/60 Hertz, 24 Volt DC
• Alternate Catalog Number: 8WD4428-6XC
• Sub Brand: Sirius
• Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
• Manufacturer: Siemens
• Specifications Met: EAC, C-TICK, CE Certified, UL Listed, ABS, PRS, RINA
• Current Rating: 500 Milliamp
