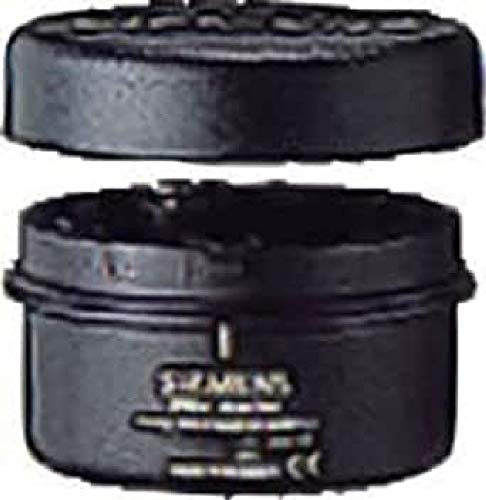

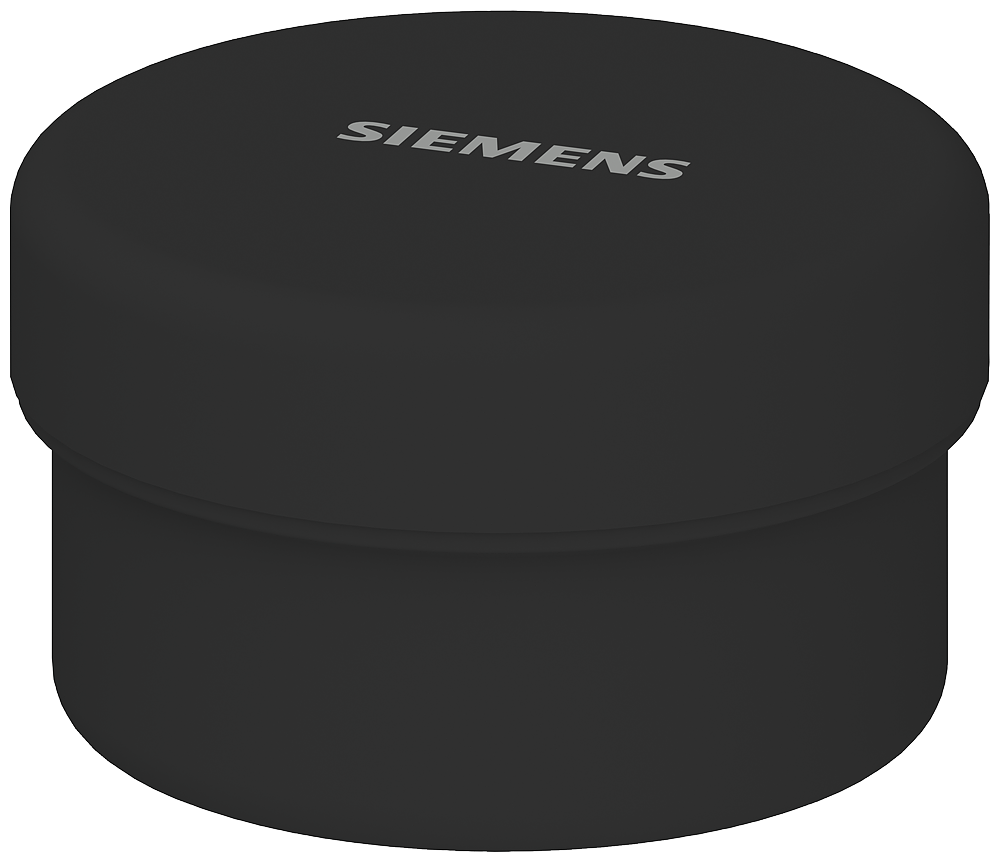

Siemens 8WD4408-0AD Signaling Column Connection Element (70 mm Diameter x 36 mm Height)

Product Description

The Siemens 8WD4408-0AD is a signaling column connection element for SIRIUS 8WD signal columns that provides a 70 mm connection base for pipe mounting. It features spring-loaded cage-clamp terminals integrated into a polyamide housing with IP65 protection and a pipe-cover end cover. The unit is RoHS compliant, rated for operation from -20 to 50 C, and carries approvals including UL, CE, EAC, and C-TICK.

• Spring-loaded cage-clamp terminals for secure electrical connection compatible with SIRIUS 8WD signaling columns
• Polyamide enclosure with IP65 rating and pipe-cover end cover for pipe/tube mounting
• Compact 70 mm connection base, operating temperature -20 to 50 C, RoHS compliant with UL, CE, EAC, and C-TICK approvals

Product Highlights

Connection element for 8WD series with 70 mm pipe-mount base, spring-loaded terminals, IP65 polyamide housing, -20 to 50 C rating

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WD4408-0AD
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 8WD4408-0AD
• Product Name: Signaling column connection element
• Series: 8WD Series / Sirius
• Used With: SIRIUS 8WD signaling columns
• Mounting Type: Pipe mounting / Tube mounting
• Connection Type: Spring-loaded terminals (cage clamp)
• Terminal Type: Spring-loaded
• Enclosure Rating: IP65
• Material: Polyamide
• Size: 70 mm diameter x 36 mm height
• Operating Temperature: -20 to 50 C
• Temperature Rating: -20 to 50 C
• Certifications: UL, CE, EAC, C-TICK
• RoHS Compliant: Yes
• Country of Origin: Germany
• GTIN: 00754554781402
• UPC: 75455478140
• Product ID / Catalog Number: 1413083
