Siemens 8WD4328-1XX 5 W Incandescent Lamp (70 mm) Replacement 8WD4328-1XX

Product Description

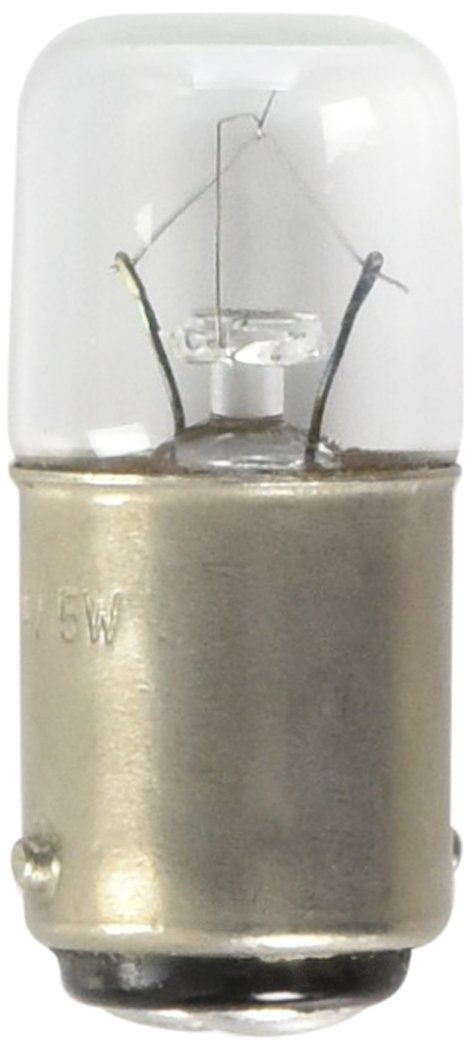

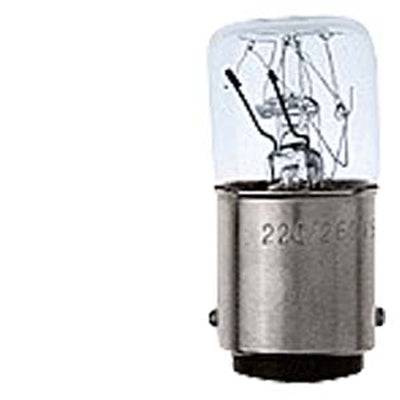

Siemens 8WD4328-1XX is a 5 W incandescent lamp rated 24 V with a BA15d bayonet base, designed as an accessory for 70 mm signal columns. The lamp provides a conventional incandescent light source for signaling and indicator applications and is intended as a replacement or indicator lamp for industrial pilot light use. It fits signal column assemblies and is compatible with standard BA15d sockets.

• 5 W incandescent lamp with BA15d bayonet double-contact base
• Rated 24 V for use in signal column and indicator applications
• Designed for signal column accessories with 70 mm diameter

Product Highlights

5 W, 24 V, BA15d base; accessory for 70 mm signal columns; MPN 8WD4328-1XX

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WD4328-1XX
• Country of Origin: China

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 8WD4328-1XX
• Brand: Siemens
• Wattage: 5 W
• Voltage: 24 VAC/VDC
• Base: BA15d (bayonet double contact)
• Diameter: 70 mm
• Application: Accessory for signal columns; indicator/pilot lamp
• Series: 8WD Series
• Temperature Rating: -20 to 50 °C ambient
• RoHS Compliance: Yes
• Certifications/Approvals: UL; EAC; C-TICK
• Country of Origin: China
• UPC: 754554400273
• GTIN/EAN: 4011209267114 / 00754554400273
• Item Weight: 20.0 g
• Height: 42 mm
• Length: 1.42 Inch
• Width: 16 mm
