Siemens 8WD4308-0DE Connect Box For Cable Entry W/Mag Base

Product Description

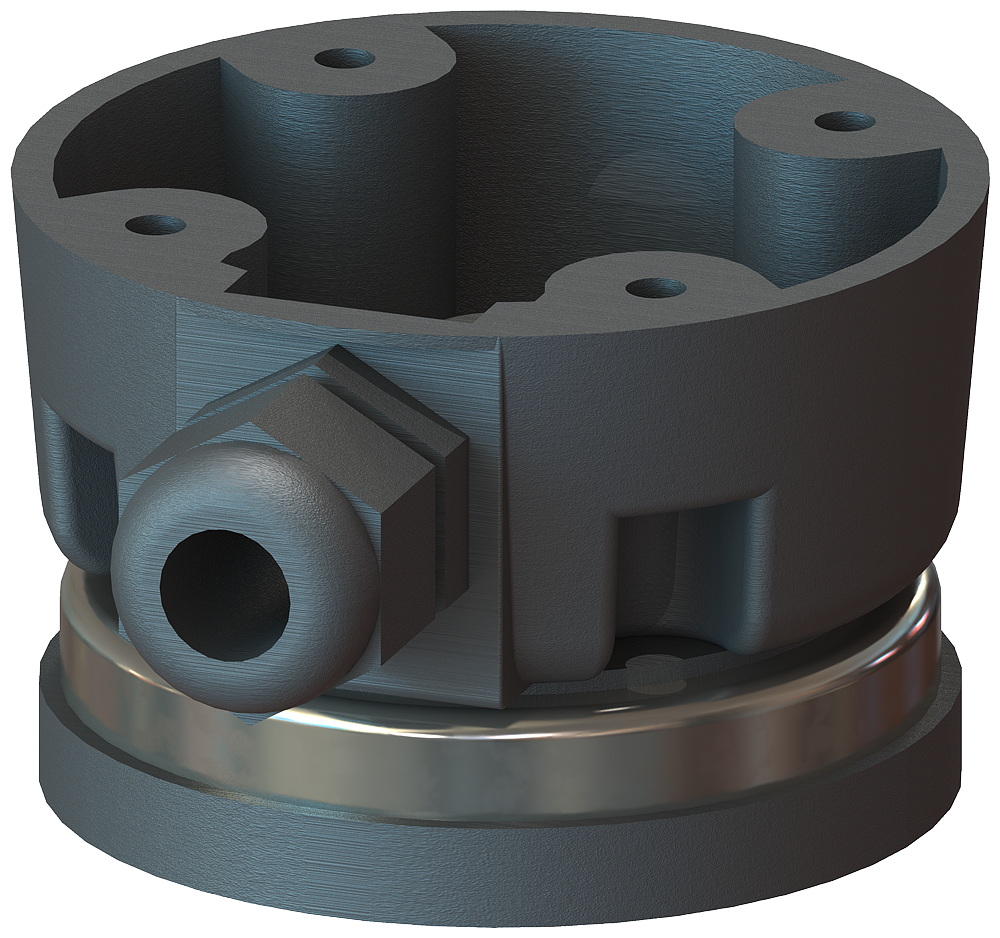

The SIEMENS 8WD4308-0DE connection socket is designed for lateral cable entry and features a magnetic mounting base. It is an accessory for SIRIUS 8WD signaling columns with diameters of 50 mm and 70 mm. This mounting socket ensures a reliable foundation for your signaling needs.

• Cable outlet laterally adapter for base
• Screw terminal
• Magnet for mounting

Product Highlights

Modular and communication-capable with modern design. Suitable for feet mounting and lateral cable entry side cable outlet.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WD4308-0DE
• Country of Origin: DE

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 8WD4308-0DE
• Numeric ID: 2510422
• Series: 8WD Series
• UPC Code: 754554486772
• UNSPSC: 39121544
• Suitable For Use With: 8WD42 50 mm Dia Signaling Columns
• Ambient/Operating Temperature: -30 to 60 deg C
• Mounting: Floor Mount
• Application: For feet mounting and lateral cable entry side cable outlet
• Standards: DIN EN 61346-2|DIN EN 81346-2|UL Listed|EAC Approved|C-Tick|ABS Approved|PRS Certified|RINA Certified|RoHS Compliant
