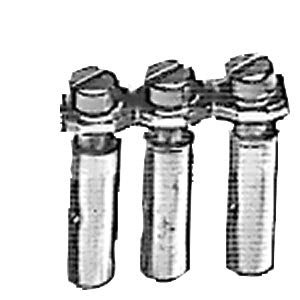

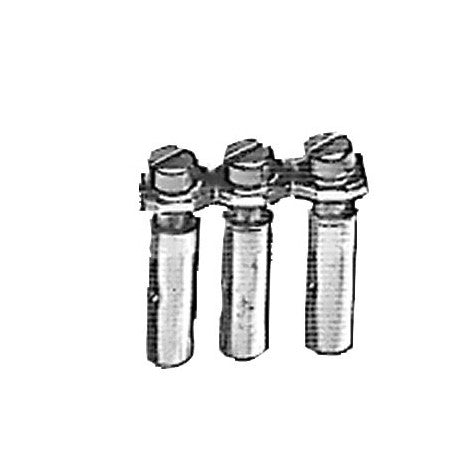

Siemens 8WA1896 Terminal Block Connecting Bar, Screw Mounting Construction, 3 Poles

Product Description

The Siemens 8WA1896 terminal block with screw mounting construction meets CSA, IEC, NEMA, UL, VDE requirements. Suitable for domestic use and incorporation into equipment for export. It bridges 3 terminals with 2.5 mm contact spacing and is used on 8WA1 series through type terminal blocks.

• DIN rail 35 mm mounting
• Bridges 3 terminals
• 26 A ampere rating

Product Highlights

The Siemens 8WA1896 terminal block is designed for connecting 3 terminals together.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WA1896
• Country of Origin: DE

Technical Specifications

• Material: Metal
• Number Of Poles: 3
• Catalog ID: SIE8WA1896
• Construction Style: Screw Mounting
• Series: 8WA1
• Suitable For Use With: 3 Terminals Size 2, 5
• Standard & Approvals: UL 1059, CSA 22.2
• Brand: SIEMENS
• Manufacturer Part Number: 8WA1896
• UPC Code: 754554225043
• Part No: 8WA1896
• RoHS: Yes
• product brand name: ALPHA
• product designation: ALPHA FIX terminal blocks
• design of the product: Link rail
• product feature / touch protection: No
• product feature / insulated: No
• accessories: cross connector
• number of bridged terminals: 3
• fastening method: screwable
• contact spacing: 2.5 mm
• Model (EF000010): Transverse connector
• Number of bridged clamps (EF002550): 3
• Explosion-tested version 'Ex e' (EF008498): false
• Insulated (EF000019): false
• With shock protection (EF008186): false
• Mounting method (EF000003): Screwable
• Modular spacing (EF000394): 2.5 mm
• Colour (EF000007): Other
• Tariff code: 8536698000
• 26 A ampere rating: 26 A
