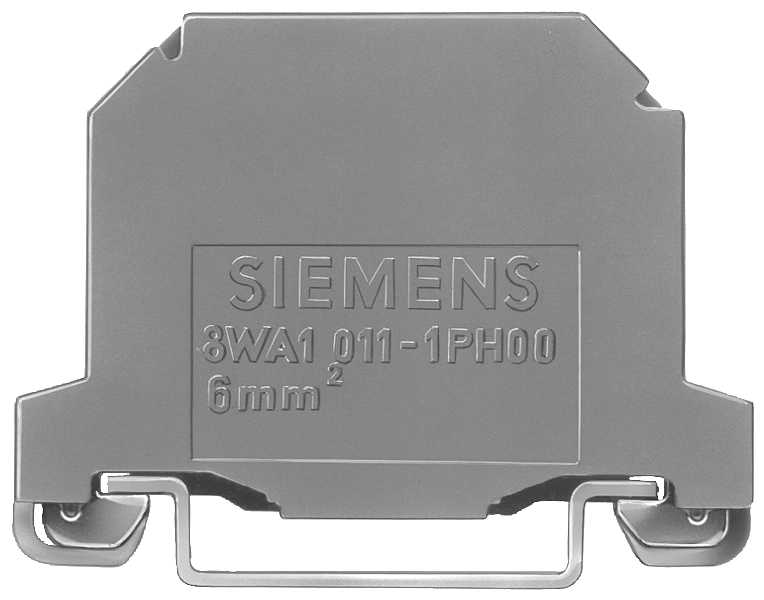

Siemens 8WA10111PH00 Grounding Single Tier Terminal Block, 800 VAC, 41 A, 14 to 8 AWG Wire, DIN Rail Mount

Product Description

The Siemens 8WA10111PH00 is a grounding single tier terminal block with a rated voltage of eight hundred VAC and an amperage of forty-one A. This terminal block features a screw connection type, supporting wire sizes ranging from fourteen to eight AWG. It is designed for easy installation and is compatible with DIN rail mounting.

• Voltage Rating: 800 VAC
• Amperage Rating: 41 A
• Wire Size Compatibility: 14 to 8 AWG

Product Highlights

This terminal block is suitable for various applications, particularly in power distribution systems. Its compact design makes it ideal for saving space while ensuring reliable electrical connections.

Product Information

Standard Information

• Brand: Siemens
• Type: Grounding Single Tier

Technical Specifications

• Dimensions: 51 mm L x 33 mm H
• Terminal Size: 6 sq-mm
• Connection Type: Lateral Screw
• Mounting Type: DIN Rail
• Material: Thermoplastic
• Temperature Rating: -25 to 55 deg C
• Torque Rating: 0.8 N-m
• Wire Strip Length: 11 mm
• Country of Origin: Germany
• Standards/Approvals: UL Listed, CE Certified, CSA Certified
