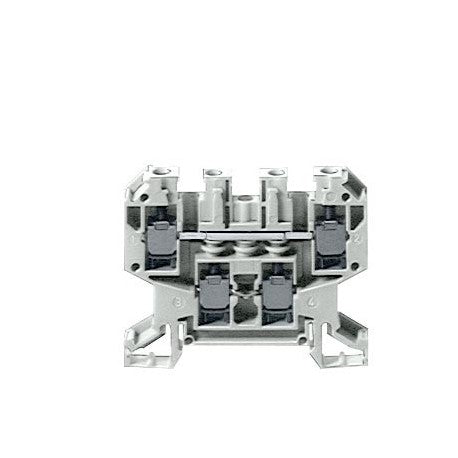

Siemens 8WA1011-6DG11 Terminal Block 690V 32A 4 mm2

Product Description

The SIEMENS 8WA1011-6DG11 is a standard feed-thru terminal block with a double-tier, 2-circuit, 2-wire configuration. Rated at 690V and 32A, it accommodates a wire range of 4 mm2. Constructed with thermoplastic housing and a screw clamp wire terminal, it mounts on a DIN rail. Compliant with IEC standards.

• Rated Voltage: 690V
• Rated Amperage: 32A
• Wire Range: 4 mm2

Product Highlights

Standard feed-thru terminal block with screw clamp, suitable for industrial applications requiring secure and reliable connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WA1011-6DG11
• Country of Origin: Germany

Technical Specifications

• Type: Standard Feed-Thru Terminal Block
• Configuration/Wiring: Double Tier 2-Circuit 2-Wire
• Construction Style: IEC
• Rating - Voltage: 690V
• Rating - Amps: 32A
• Wire Range: 4 mm2
• Model Type: 8WA1011
• Wire Terminal: Screw Clamp
• Housing Material: Thermoplastic
• Housing Finish: Beige
• Mounting: DIN Rail
• Block Width: 0.25 in. (6.5mm)
• Block Length: 2.51 in. (64.0mm)
• Manufacturer Series: 8WA1 Series
• Amperage: 32 Amp
• Connection Type: Screw Connection
• Size: H 45 x L 64 mm
• TC Connection: Screw
• Terminal Size: 4 mm
• Voltage: 690/800 Volt
• Brand: Siemens
• Color: Beige
• Manufacturer: Siemens
• Reference: 8WA10116DG11
• Condition: New
• Country of Origin: Germany - Subject to change
