Siemens 8WA1011-6BG11 Term

Product Description

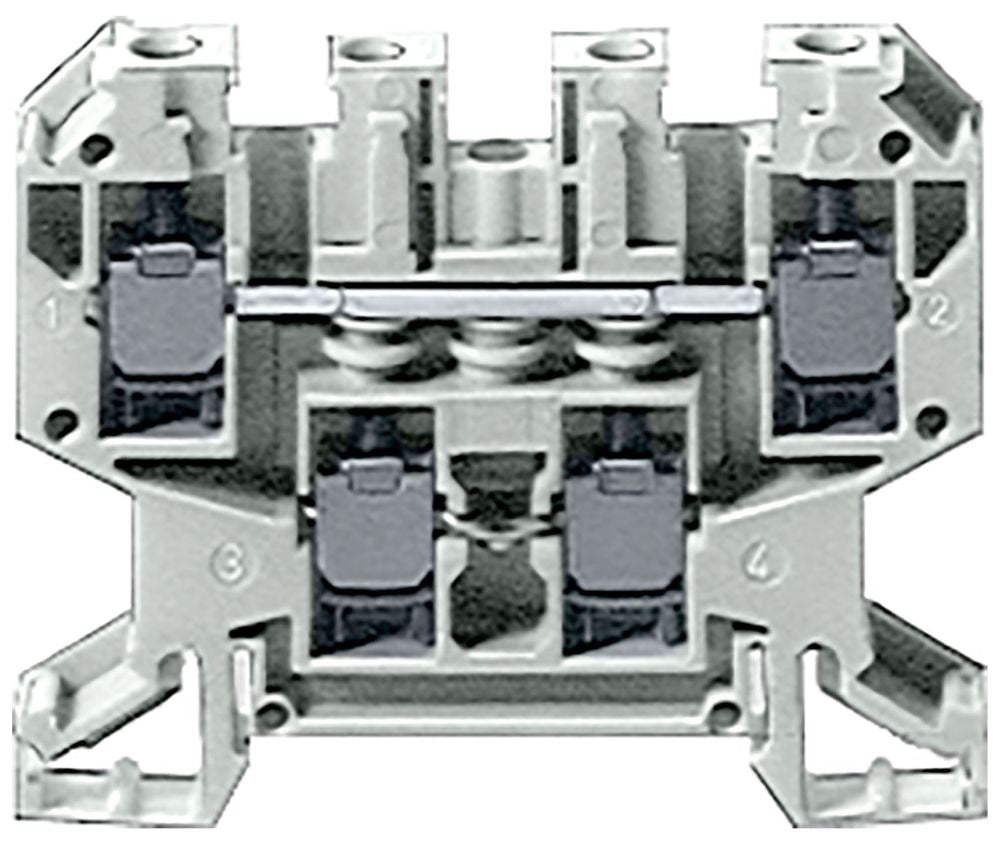

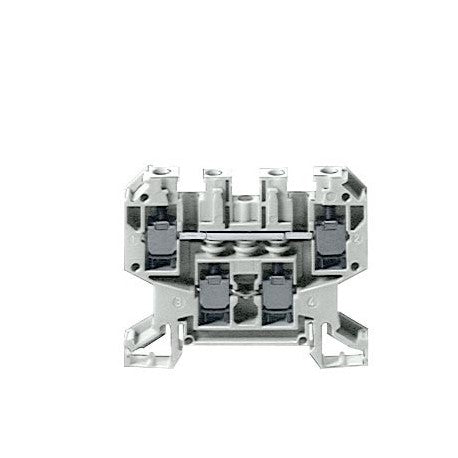

The SIEMENS 8WA1011-6BG11 is a standard double tier 2-circuit through screw terminal block. It has a voltage rating of 690V and a current rating of 32A. This terminal block accepts wire sizes from 18 to 10 AWG and is constructed from thermoplastic housing material. Suitable for various electrical connection applications.

• Standard double tier 2-circuit terminal block
• Accepts wire sizes from 18 to 10 AWG
• Mounts on DIN Rail 35mm

Product Highlights

The SIEMENS 8WA1011-6BG11 is ideal for creating secure and organized electrical connections in control panels and distribution boards.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WA1011-6BG11
• Country of Origin: DEU

Technical Specifications

• Type: Terminal
• Construction: Standard Double Tier 2-Circuit
• Voltage Rating: 690 Volt
• Current Rating: 32 Amp
• Wire Size: 18 to 10 AWG (Solid/Stranded)
• Terminal Type: Screw
• Wire Strip Length: 11 Millimeter
• Temperature Rating: 55 Deg C
• Housing Material: Thermoplastic
• Mounting: DIN Rail 35 Millimeter
• Approval: UL, CSA, CE, EAC
• REACH/RoHS Compliant: REACH/RoHS Compliant
• Number of Pole: 1
• Country Of Origin: DEU
• Manufacturer: Siemens
• Reference: 8WA10116BG11
• Item Code: 8WA10116BG11
• Condition: New
• Termination Type: Feed-Through
• MPN: 8WA1011-6BG11
