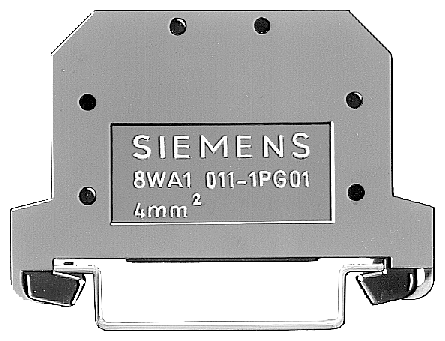

Siemens 8WA1011-1PG00 4 mm 2-Terminal Terminal Block

Product Description

The Siemens 8WA1011-1PG00 is a 4 mm, 2-terminal block. This green/yellow terminal block features a screw connection and is rated for 800V and 32A. It is designed for DIN rail mounting and accepts wire sizes from 18 to 10 AWG. The thermoplastic housing ensures durability in various environments.

• 2 Screw Terminals
• Green-Yellow color
• Space saving or simple installation

Product Highlights

The Siemens 8WA1011-1PG00 terminal block provides a reliable grounding solution with screw terminals and DIN rail mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WA1011-1PG00
• Country of Origin: Germany

Technical Specifications

• Type: Individual Terminal
• Brand: Siemens
• Voltage: 800 Volt
• Amperage: 32 Amp
• Sub Brand: Terminals
• TC Connection: Screw
• Terminal Size: 4 mm
• Connection Type: Screw Connection
• Wire Size: 18 to 10 AWG
• Housing Material: Thermoplastic
• Mounting: 35 Millimeter DIN Rail
• Series: 8WA1
• Torque Rating: 0.5 N-m
• Mounting Type: DIN Rail
• Color: Green/Yellow
• Manufacturer: Siemens
• UNSPSC: 39121410
• Terminal Type: Screw
• Voltage Rating: 800 VAC
• Amperage Rating: 32 A
• Number of Levels: 2
• Number of Positions: 1
• Termination: Screw terminal
• Wire Termination Type: Screw
• Temperature Rating: -25 to 55 deg C
