Siemens 8WA1011-1PF00 PE Terminal 6MM

Product Description

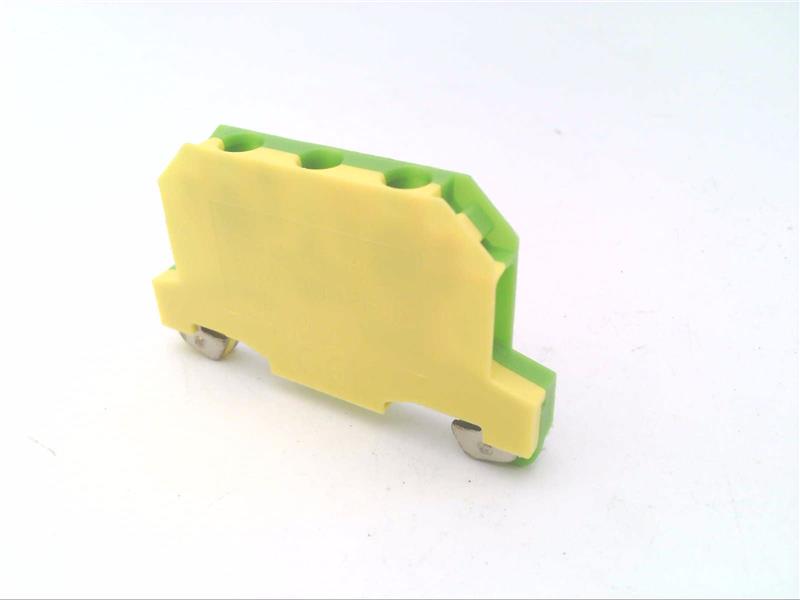

The SIEMENS 8WA1011-1PF00 is a PE terminal with 2 screw terminals and a green-yellow housing. It is 6mm in size and SZ 2.5. This grounding terminal block is constructed in the IEC style and is suitable for DIN Rail mounting. It is rated for 800V and 24A, with a wire range of 2.5 mm2.

• Double Tier 1-Circuit configuration
• Thermoplastic housing material
• Temperature rating: -25 deg C to 55 deg C

Product Highlights

The SIEMENS 8WA1011-1PF00 is a reliable grounding terminal block for various electrical applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WA1011-1PF00
• Country of Origin: Germany

Technical Specifications

• Part #: 8WA1011-1PF00
• Category: Connector/Terminal/Pin
• Amperage: 24 Amp
• Connection Type: Screw Connection
• Size: H 26 x L 51 mm
• TC Connection: Screw
• Terminal Size: 2.5 mm
• Type: Grounding Terminal Block
• Voltage: 800 Volt
• Brand: Siemens
• Sub Brand: Siemens
• Configuration/Wiring: Double Tier 1-Circuit
• Construction Style: IEC
• Rating - Voltage: 800V
• Rating - Amps: 24A
• Wire Range: 2.5 mm2
• Model Type: 8WA1011
• Wire Terminal: Screw
• Housing Material: Thermoplastic
• Housing Finish: Green-Yellow
• Mounting: DIN Rail, 35mm
• Temperature Rating - max: 55 deg C (131 deg F)
• Temperature Rating - min: -25 deg C (-13 deg F)
• Block Width: 0.24 in. (6mm)
• Block Length: 2.00 in. (51mm)
• Block Height: 1.02 in. (26mm)
