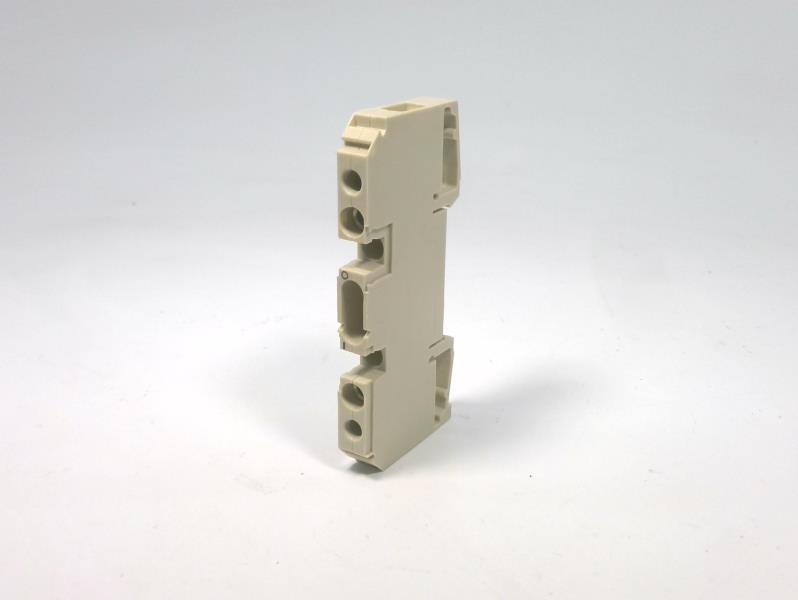

Siemens 8WA1011-1MH11 Term Block,Screw,Measuring Transformer,6

Product Description

The Siemens 8WA1011-1MH11 is a TERM BLOCK,SCREW,MEASURING TRANSFORMER,6. With a voltage rating of 500 V and current capacity of 41 A, this terminal block accommodates 6 sq-mm wire and features a durable thermoplastic construction. Perfect for DIN rail mounting, it ensures secure connections in a compact design. Ideal for a wide range of applications!

• The tried and tested screw terminals are insulated on both sides and enclosed at both ends
• These terminals are extremely robust and can withstand high mechanical and thermal loads
• Screw terminals are able to withstand a rated short time current corresponding to a current density of 120 A/sq-mm specific to the nominal cross section for a duration of one second

Product Highlights

The Siemens 8WA1011-1MH11 is ideal for electrical installations requiring secure connections. It is designed for reliability and efficiency.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WA1011-1MH11
• Country of Origin: China

Technical Specifications

• Alternate Mfr Part Number: 8WA1011-1MH11
• Brand: SIEMENS
• Manufacturer Part Number: 8WA10111MH11
• Color: Beige
• UNSPSC: 39121410
• Material: Thermoplastic
• Wire Size: 6
• Application: Configuring Terminal Sets for Current Terminals
• Mounting Type: DIN Rail
• Terminal Type: Screw
• Voltage Rating: 500 V
• Temperature Rating: -25 to 55
• Spacing: 8 mm
• Amperage Rating: 41 A
• product brand name: ALPHA
• type of longitudinal separation: sliding
• type of lateral separation: without
• design of terminal / terminal levels internally linked: No
• insulation material: thermoplastic
• terminal contact spacing: 8 mm
• operating voltage / rated value: 500 V
• combustibility class according to UL 94: V2
• operational current / rated value: 41 A
• product component required / end cover plate: No
• product component test socket: No
• number of terminal levels: 1
• number of terminal points / per terminal level: 2
• connectable conductor cross-section / solid minimum: 6 mm
• connectable conductor cross-section / solid maximum: 6 mm
• connectable conductor cross-section / stranded minimum: 1.5 mm
• connectable conductor cross-section / stranded maximum: 6 mm
• connectable conductor cross-section / finely stranded with core end processing / minimum: 6 mm
• connectable conductor cross-section / finely stranded with core end processing / maximum: 6 mm
• connectable conductor cross-section / finely stranded without core end processing / minimum: 6 mm
• connectable conductor cross-section / finely stranded without core end processing / maximum: 6 mm
• type of connection 1: screw-type terminal
• type of connection 2: screw-type terminal
• position / of the terminal: lateral
• height / with lowest-profile installation: 33 mm
• length: 83 mm
• fastening method: DIN rail 35 mm
• material / of the insulating body: Thermoplast
• ambient temperature / during operation minimum: -25
• ambient temperature / during operation maximum: 55
