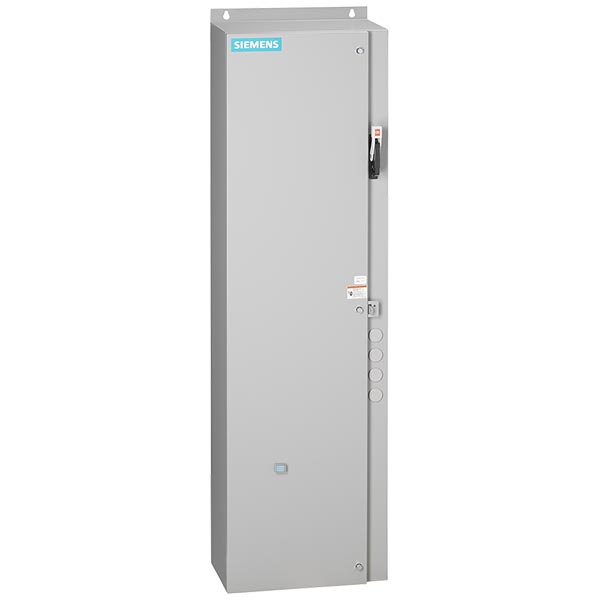

Siemens 87LPU6FF Pump Control Panel, 110 to 127 VAC V Coil, NEMA 3R Enclosure, SZ 5

Product Description

The Siemens 87LPU6FF Pump Control Panel is designed for reliable control of pumps in outdoor settings. It operates on a coil voltage of 110 to 127 VAC and features a NEMA 3R enclosure, suitable for inclement weather. This control panel includes various load ratings and auxiliary contacts to help ensure operational safety and efficiency.

• Temperature range for storage: -22 to 149 degrees Fahrenheit
• Overload protection and phase failure detection
• Supports vertical surface mounting and installation

Product Highlights

This pump control panel is ideal for heavy-duty applications requiring robust protection and reliable performance.

Product Information

Standard Information

• Brand: Siemens
• MPN: 87LPU6FF

Technical Specifications

• Amperage Rating: 55 to 250 A
• Coil Voltage: 110 to 127 VAC
• Dimensions: 72 inches H x 20 inches W x 11 inches D
• Enclosure Type: NEMA 3/3R
• Frequency Rating: 50/60 Hz
• Motor Power: 200 hp
• Operating Cycles: 5000000 Cycles
• Operating Temperature: -4 to 104 degrees Fahrenheit
• Overload Relay: Solid State
• Phase: 3
• Voltage Rating: 600 VAC
• Wattage: 7.4 W
