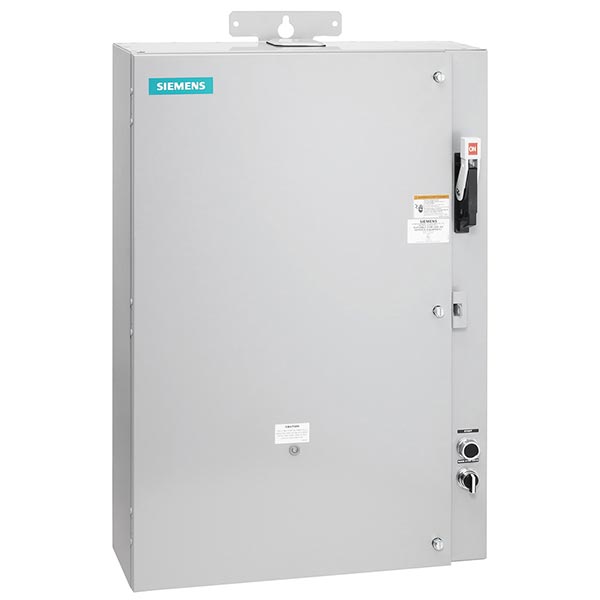

Siemens 87JUH6LC B Frame Class 87 Full Voltage Weatherproof Pump Control Panel 40 hp, 50 hp

Product Description

The Siemens 87JUH6LC B Frame Class 87 Full Voltage Weatherproof Pump Control Panel features a fusible disconnect switch and is suitable for 220/240 VAC and 440/480 VAC applications. Designed for irrigation, agriculture, petrochemical, and wastewater treatment, it withstands harsh elements and outdoor conditions. The unit has a NEMA 3R enclosure.

• Features fully gasketed NEMA 3R rainproof enclosures.
• Offers 100000 A interrupting capacity with class R fuses.
• Includes a heavy-duty disconnect handle and bold pilot legend on the front.

Product Highlights

This weatherproof pump control panel is ideal for demanding outdoor motor control applications, providing robust performance and protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 87JUH6LC
• Country of Origin: US

Technical Specifications

• Application: For irrigation, agriculture, petrochemical, wastewater treatment, wherever motor control is challenged by harsh elements and outdoor applications
• Auxiliary Contact Rating: 10 A at 600 VAC A600, 5 A at 600 VDC P600
• Coil Voltage: 220 to 240/440 to 480 VAC
• Connection Type: Box Lug Line Side/Screw Terminal Load Side
• Control Type: Start Pushbutton/Hand-Off-Auto Selector Switch
• Country of Origin: US
• Enclosure Type: NEMA 3/12/3R
• Frequency Rating: 60 Hz
• Mfg Standards/Approvals: UL Listed|UL File No. E185287
• Motor Power: 40 hp, 50 hp
• Operating Cycles: 5000000 Cycles
• Operating Temperature: -4 to 104 deg F
• Overload Relay: Solid State
• Phase: 3
• Reset Type: Automatic/Manual/Remote
• Setting: 50 to 200 A
• Size: SZ 4
• Type: B Frame Class 87 Full Voltage Standard Surface Mount Weatherproof
• Voltage Rating: 220/230 VAC
• Coordination class according to IEC 60947-4-3: Class 1
• External reset possible: TRUE
• Kind of motor starter: Other
• Number of auxiliary contacts as normally closed contact: 0
• Number of auxiliary contacts as normally open contact: 1
• Number of command positions: 0
• Overload release current setting: 50 A
• Rated control supply voltage Us at AC 60HZ: 220 V
• Release class: Other
• Voltage type for actuating: AC
• With short-circuit release: TRUE
• With transformer: FALSE
