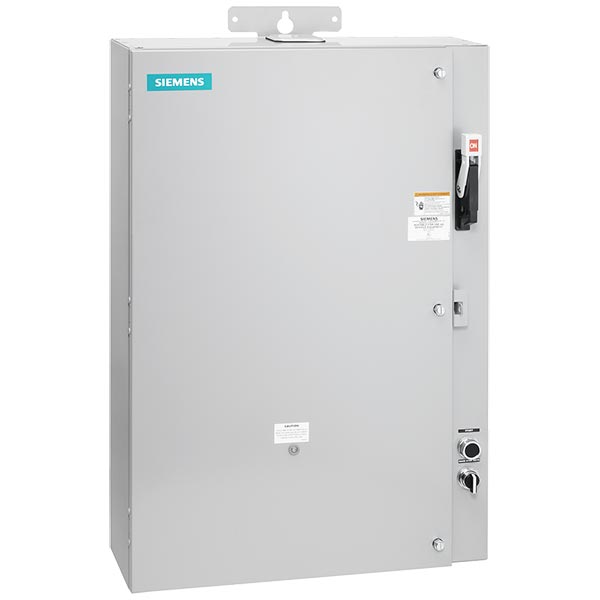

Siemens 87HUG6FC Class 87 Fusible Disconnect Standard Pump Control Panel, 220 to 480 VAC V Coil, NEMA 3R Enclosure, SZ 3

Product Description

The Siemens 87HUG6FC is a Class 87 Fusible Disconnect Standard Pump Control Panel designed for voltage applications ranging from two hundred twenty to four hundred eighty volts alternating current. This panel features a NEMA three R enclosure, making it suitable for outdoor use. The panel includes three normally open contacts and zero normally closed contacts for auxiliary functions, accommodating up to seven auxiliary contacts maximum.

• Operates at -22 to 149 degrees Fahrenheit during storage.
• Overload protection and phase failure detection provided.
• Vertical surface mounting capabilities included.

Product Highlights

This control panel offers solid-state overload relay functionality and can handle a motor power rating of up to fifty horsepower.

Product Information

Standard Information

• Brand: Siemens
• MPN: 87HUG6FC

Technical Specifications

• Amperage Rating: 25 to 100 A
• Application: For weather proof outdoor use
• Coil Voltage: 220 to 480 VAC
• Enclosure Type: NEMA 3R
• Dimensions: 41 inches H x 24 inches W x 8 inches D
• Motor Power: 50 hp
• Operating Temperature: -4 to 104 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Package Weight: 81.0 lb
