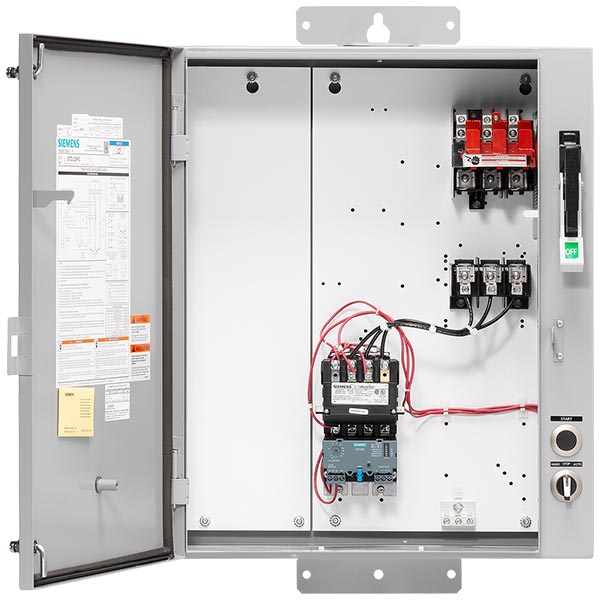

Siemens 87FUF6FC Class 87 Fusible Disconnect Standard Pump Control Panel, 220 to 480 VAC V Coil, NEMA 3R Enclosure, SZ 2

Product Description

The Siemens 87FUF6FC Class 87 Fusible Disconnect Standard Pump Control Panel is designed for reliable operation in various environments. This panel operates with a coil voltage range of two hundred twenty to four hundred eighty volts alternating current and is rated for three-phase power. The enclosure meets the NEMA 3R standard, making it suitable for outdoor applications.

• Amperage rating of sixty amps
• Temperature range for operation from negative four to one hundred four degrees Fahrenheit
• Durable design with overload protection and phase failure detection

Product Highlights

This pump control panel features a solid-state overload relay and supports automatic, manual, and remote resetting. It has a robust design intended for weatherproof outdoor use.

Product Information

Standard Information

• Brand: Siemens
• UPC: 662643536720

Technical Specifications

• Coil Voltage: 220 to 480 VAC
• Enclosure Type: NEMA 3R
• Motor Power: 25 hp
• Dimensions: 29 in H x 20 in W x 8 in D
• Wattage: 8.6 W
• Operating Cycles: 10000000 Cycles
• Reset Type: Automatic/Manual/Remote
• Operating Temperature: -4 to 104 degrees Fahrenheit
• Phase: 3
