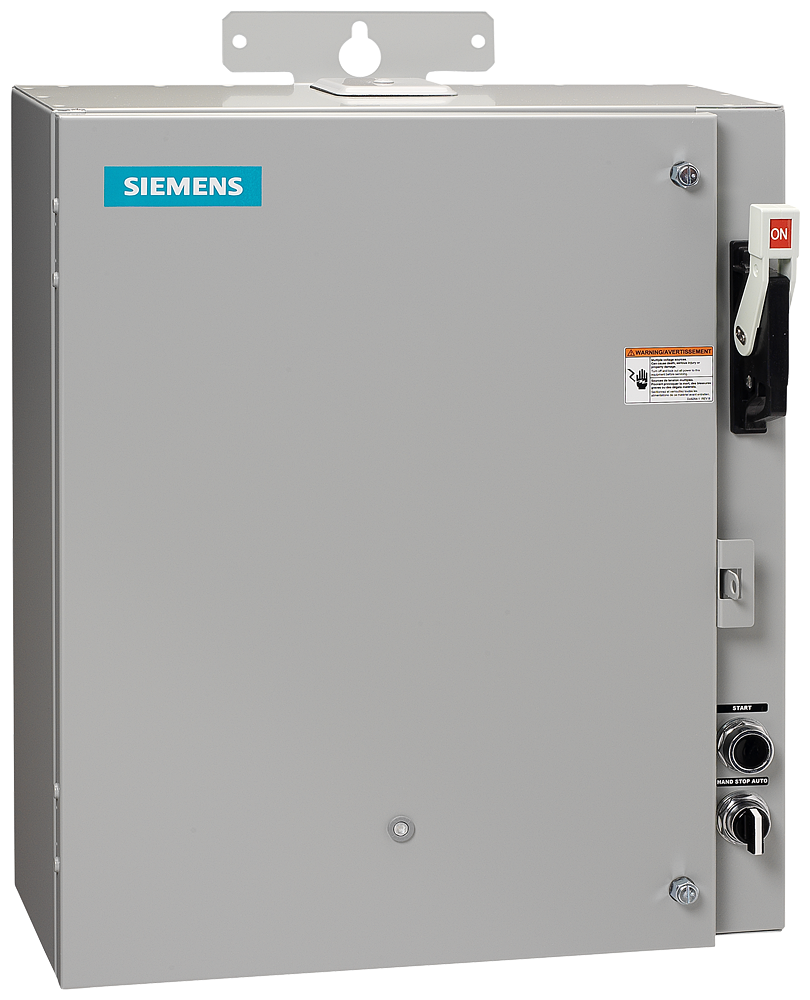

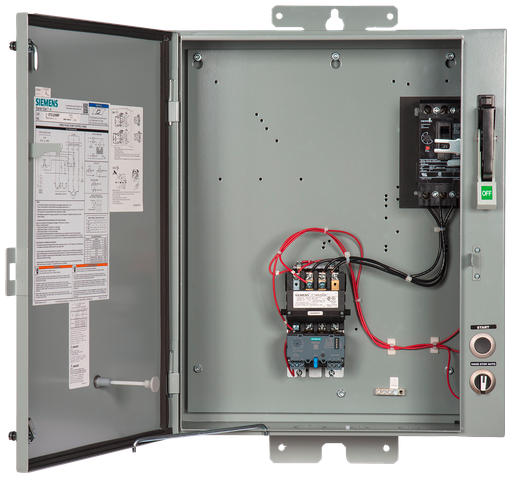

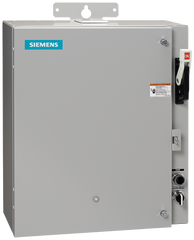

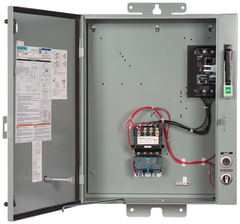

Siemens 87DUE6MC 240/440 to 480 VAC 10 to 40 Amp 10 Hp 3-Phase NEMA 3/3R Full Voltage Pump Control Panel Size 1

Product Description

The Siemens 87DUE6MC is a Size 1 full voltage pump control panel designed for 3-phase applications. It features an H2 solid-state overload relay with an OLR amp range of 10-40A, a standard type contactor, and a 30A circuit breaker. Operating with a coil voltage of 220-240/440-480VAC 60Hz, this panel is suitable for 240/440 to 480 VAC systems and motors up to 10 Hp. Its NEMA 3/3R enclosure ensures weather-proof outdoor use.

• Solid-state overload relay
• Weather proof outdoor use
• HOA Sel Sw. & Start P.B.

Product Highlights

This pump control panel offers robust protection and reliable operation for 3-phase pump systems in outdoor environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 87DUE6MC
• Country of Origin: Mexico

Technical Specifications

• Type: Pump Control Panel
• Size: 1
• Overload Relay Type: H2 Solid-state
• OLR Amp Range: 10-40A
• Coil Voltage: 220-240/440-480VAC 60Hz
• Contactor Type: Standard
• Circuit Breaker: 30A
• Enclosure Type: NEMA 3/3R
• Voltage: 240/440 to 480 VAC
• Amperage: 10 to 40 Amp
• Horsepower: 10 Hp
• Phase: 3-Phase
• Control Type: Full Voltage
• Number of Poles: 3 Pole
• Operating Cycles: 10000000
• Reset Type: Automatic/Manual/Remote
• Voltage Rating: 600 VAC
• Connection Type: Box Lug/Screw
• Frequency Rating: 50/60 Hz
• Operating Temperature: -4 to 104 deg F
• Wattage: 8.6 W
• On/Off Timing: 19 to 29 ms On/10 to 24 ms Off
• Auxiliary Contacts (Overload Relay): 10 A at 600 VAC A600, 5 A at 600 VDC P600
