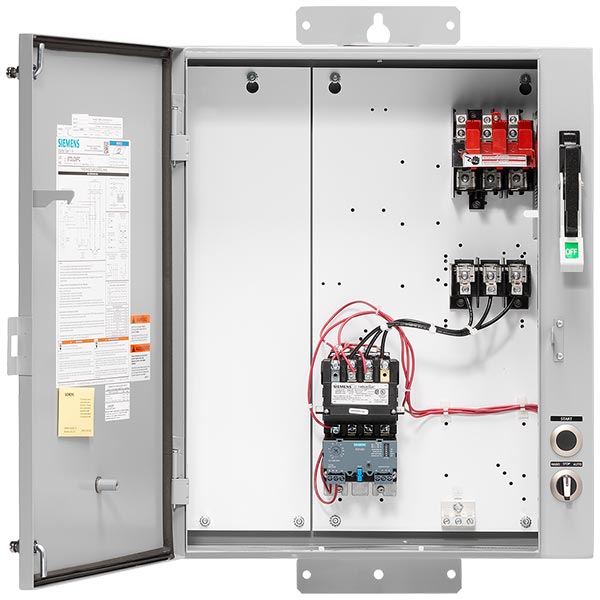

Siemens 87DUD6FC Class 87 Surface Mount Pump Control Panel 220 to 480 VAC V Coil 3 Poles NEMA 3/3R Enclosure

Product Description

The Siemens 87DUD6FC is a Class 87 Surface Mount Pump Control Panel designed for motor control applications and suitable for outdoor environments. It operates on a voltage range of two hundred twenty to four hundred eighty VAC and supports a three-pole configuration. This control panel is housed in a NEMA 3/3R enclosure that provides protection against dust and water.

• Operating temperature range: -22 to 149 degrees Fahrenheit.
• Three normally open and zero normally closed contacts for versatile applications.
• Overload protection functions include phase failure detection and ground fault detection.

Product Highlights

This control panel is ideal for managing both motor control and weather-proof outdoor applications. It features a solid state overload relay and offers multiple control options.

Product Information

Standard Information

• Brand: Siemens
• MPN: 87DUD6FC

Technical Specifications

• Amperage Rating: 27 A
• Coil Voltage: 220 to 480 VAC
• Control Type: Hand-Off-Auto Selector Switch
• Enclosure Type: NEMA 3/3R
• Frequency Rating: 50/60 Hz
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -4 to 104 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Dimensions: 29 inches H x 20 inches W x 8 inches D
• Phase: 3
• Reset Type: Automatic/Manual/Remote
• Motor Power: 5 hp
• Package Weight: 47.0 lb
• Specifications: CSA Certified | UL Listed
