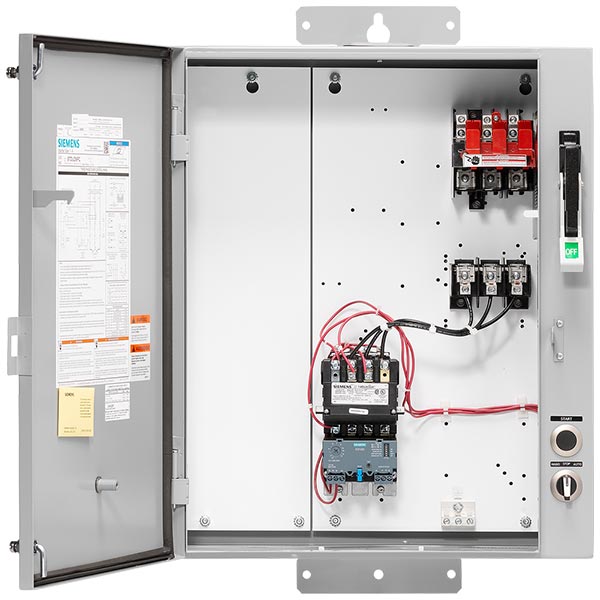

Siemens 87DUD6FA Pump Control Panel, 110 to 240 VAC V Coil, NEMA 1/12/3R Enclosure

Product Description

The Siemens 87DUD6FA is a pump control panel designed for robust operation. It operates on a voltage range between 110 to 240 VAC and is suitable for weatherproof outdoor use. This panel falls under NEMA 1, 12, and 3R classifications, ensuring it can withstand various environmental conditions.

• Operating temperature range from -22 to 149 degrees Fahrenheit.
• Integrated overload protection and phase failure detection features for system reliability.
• Capacity to handle loads of up to 10 horsepower at various voltage ratings.

Product Highlights

This control panel is ideal for managing pump systems, providing essential controls and feedback in a single unit, making it a key component in industrial applications.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q3893

Technical Specifications

• Amperage Rating: 5.5 to 22 A
• Application: For weatherproof outdoor use
• Auxiliary Contact Rating: 10 A at 600 VAC A600, 5 A at 600 VDC P600
• Coil Voltage: 110 to 240 VAC
• Connection Type: Screw/Box Lug
• Control Type: Hand-Off-Auto Selector Switch
• Country of Origin: MX
• Dimensions: 29 in H x 20 in W x 8 in D
• Enclosure Type: NEMA 1/12/3R
• Frequency Rating: 50/60 Hz
• Motor Power: 10 hp
• Operating Cycles: 10,000,000 Cycles
• Operating Temperature: -4 to 104 degrees Fahrenheit
• Overload Relay: Solid State
• Package Weight: 47.0 lb
• Phase: 3
• Reset Type: Automatic/Manual/Remote
• Size: SZ 1
• Timing: 19 to 29 ms On/10 to 24 ms Off
• Voltage Rating: 600 VAC
• Wattage: 8.6 W
