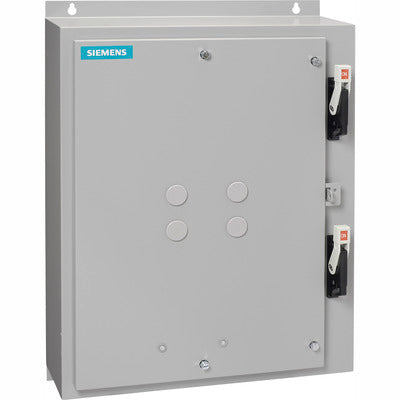

Siemens 84CUD95BDF sz 0 class 84 duplex full voltage heavy duty combination controller with (2) 30 a, 600 v

Product Description

The Siemens 84CUD95BDF SZ 0 Class 84 Duplex Full Voltage Heavy Duty Combination Controller features dual 30 A, 600 V non-fusible disconnect switches and a NEMA 1 enclosure. It supports 220/230 VAC voltage rating and 50/60 Hz frequency. This controller is designed for indoor general purpose and outdoor service equipment applications.

• Heavy duty disconnect handle
• Flexibility with field modifications
• Solid-State Overload Relay

Product Highlights

Duplex full voltage heavy duty combination controller with disconnect switches and solid-state overload relay.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 84CUD95BDF
• Country of Origin: United States

Technical Specifications

• UNSPSC: 39121521
• Reset Type: Automatic/Manual/Remote
• Application: Indoor General Purpose, Outdoor Use and Service Equipment
• Coil Voltage: 110/120 VAC
• Enclosure Type: NEMA 1
• Overload Relay: Solid-State
• Voltage Rating: 220/230 VAC
• Connection Type: Box Lug/Screw Terminal
• Frequency Rating: 50/60 Hz
• Operating Temperature: -20°C ~ 40°C
• Type: SZ 0 Class 84 Duplex Full Voltage Heavy Duty
• Motor Power: 3 hp
• Starter Type: Combination Duplex Full Voltage
• Rating - Volts: NEMA 600V AC
• Size: NEMA Size 0
• Disconnect: Non-Fusible
• Disconnect Amps: 30A
• Phase: 3
• Motor FLA: 5.50-22.00A
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter
• Number of Motors: 1
• Voltage - Load: 600V
• Current - Output: 18A
• Wattage - Load: 2237 W
• Voltage - Supply: 120VAC
• Mounting Type: Chassis Mount
• Manufacturer: Siemens
• Reference: 84CUD95BDF
• Primary brand: Siemens
