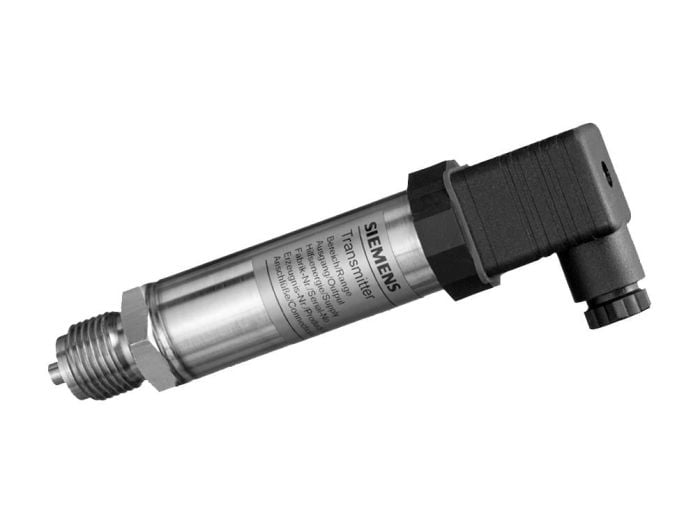

Siemens 7MF15654BF105EA1 Single Point Wet Pressure Sensor 0 to 10 Volt 0 to 60 psi 1/4 in. MNPT Straight

Product Description

The SIEMENS 7MF15654BF105EA1 is a single point wet pressure sensor designed for accurate measurement of pressure in liquids, gases, and vapor. It features a 0 to 10 Volt output signal and a 0 to 60 psi measuring range. The sensor incorporates a 1/4 inch MNPT straight process connection and a sturdy stainless steel housing, making it suitable for both aggressive and non-aggressive media. Its temperature-compensated measuring cell ensures reliable performance.

• High Measuring Accuracy
• Sturdy Stainless Steel Housing
• Measures The Pressure Of Liquids, Gases, And Vapor

Product Highlights

Compact design with temperature-compensated measuring cell for precise pressure monitoring.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 7MF15654BF105EA1
• Country of Origin: Switzerland

Technical Specifications

• Output Signal: 0 to 10 Volt
• Measuring Range: 0 to 60 psi
• Process Connection: 1/4 in. MNPT Straight
• Housing Material: Stainless Steel
• Country of Origin: Switzerland
• Product Series: 7MF
• Family Series: Siemens Building Technologies HVAC Sensors, 7MF Series
• Accuracy: 0.25 %
• Sensor Style: Absolute
• Display: No
• Input Voltage: 16-33 VDC
• Product Type: Liquid/Gas Sensor
