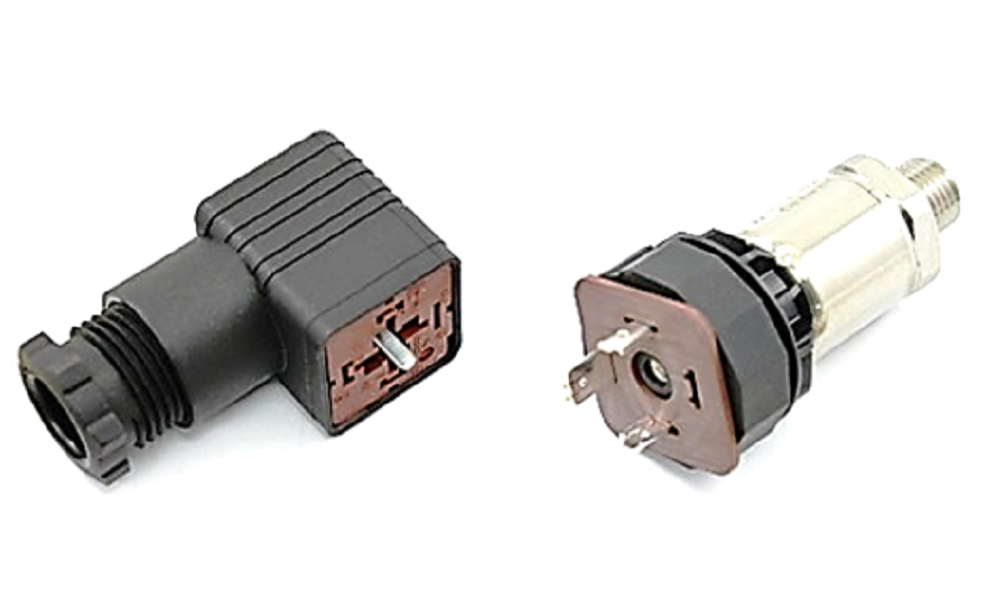

Siemens 7MF15654BF005EA1 Single Point Wet Pressure Sensor 4 to 20 mA (0 to 60 psi)

Product Description

The Siemens 7MF15654BF005EA1 is a single-point wet pressure sensor providing a 4 to 20 mA output and a 0 to 60 psi measuring range. It features a temperature-compensated measuring cell within a stainless steel housing and a 1/4 in. MNPT straight process connection for liquids, gases, and vapors. Fully encapsulated electronics protect against temperature and humidity, with typical accuracy of 0.25% of full scale for HVAC, hydronic, and industrial pressure monitoring.

• 4 to 20 mA output signal with 0 to 60 psi measuring range
• Stainless steel housing with 1/4 in. MNPT straight process connection
• Temperature-compensated measuring cell, fully encapsulated electronics, typical 0.25% full-scale accuracy

Product Highlights

Single-point wet pressure sensor, 4–20 mA output, 0–60 psi range, stainless steel housing, 1/4 in. MNPT.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 7MF15654BF005EA1
• Country of Origin: Swaziland

Technical Specifications

• Brand: Siemens
• Model / MPN: 7MF15654BF005EA1
• Product Type: Single point wet pressure sensor / Pressure transmitter
• Series: SITRANS P200
• Output Signal: 4 to 20 mA
• Output Type: 2-wire current loop (4-20 mA)
• Pressure Range: 0 to 60 psi
• Measuring Cell: Temperature-compensated measuring cell
• Measuring System: Stainless steel, piezo-resistive
• Measuring Accuracy: 0.25% of full scale (typical)
• Process Connection: 1/4 in. MNPT straight
• Housing / Enclosure Material: Stainless steel
• Electronics Protection: Fully encapsulated electronics for temperature and humidity protection
• Electrical Connection: Terminal block
• Suitable Media: Liquids, gases, vapor; suitable for aggressive and non-aggressive media
• Operating Temperature: -13 °F to 185 °F
• Overload Withstand: High overload protection for piezo-resistive cell
• Application: HVAC, hydronic liquid pressure sensing, industrial pressure monitoring
• Weight: 0.38 lb
