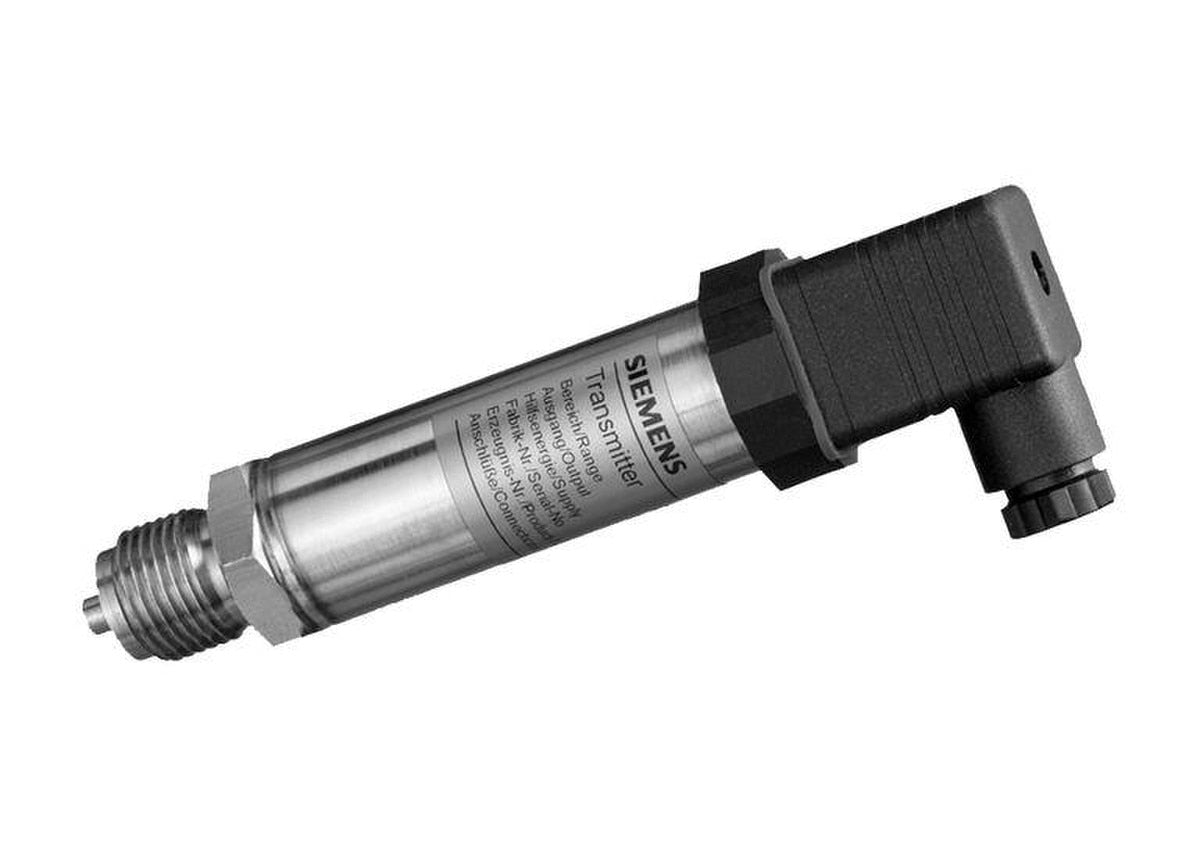

Siemens 7MF15654BE005EA1 Single Point Wet Pressure Sensor (1/4 in. MNPT)

Product Description

Siemens 7MF15654BE005EA1 is a single point wet pressure sensor that provides a 4 to 20 mA output and measures 0 to 30 psi. The sensor uses a stainless steel piezo-resistive measuring system with a temperature-compensated measuring cell and fully encapsulated electronics. It features a 1/4 in. MNPT process connection and a compact stainless steel housing suitable for aggressive and non-aggressive liquids, gases, and vapor.

• 4 to 20 mA output with calibrated range 0 to 30 psi; typical accuracy 0.25% of full scale.
• Stainless steel piezo-resistive measuring system with temperature-compensated cell and fully encapsulated electronics.
• 1/4 in. MNPT male process connection; compact stainless steel housing; suitable for liquids, gases, and vapor (aggressive and non-aggressive).

Product Highlights

Stainless steel piezo-resistive sensor, 4–20 mA output, 0–30 psi, 1/4 in. MNPT, temperature-compensated and fully encapsulated, for liquid and gas media.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 7MF15654BE005EA1
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Manufacturer Part Number: 7MF15654BE005EA1
• Product Series: 7MF
• Product Type: Single point wet pressure sensor
• Output Signal: 4 to 20 mA
• Output Signals Available: 0 to 10 Vdc; 4 to 20 mA
• Pressure Range: 0 to 30 psi
• Measuring System: Stainless steel piezo-resistive
• Measuring Accuracy: 0.25% of full scale (typical)
• Process Connection: 1/4 in. MNPT (male NPT)
• Connection Type: Male NPT
• Housing Material: Stainless steel
• Measuring Cell: Temperature-compensated
• Design: Fully encapsulated electronics; compact design
• Media: Liquids, gases, and vapor (aggressive and non-aggressive)
• Input Voltage: 16-33 VDC
• Sensor Style: Absolute
• Net Weight: 0.39 lb
