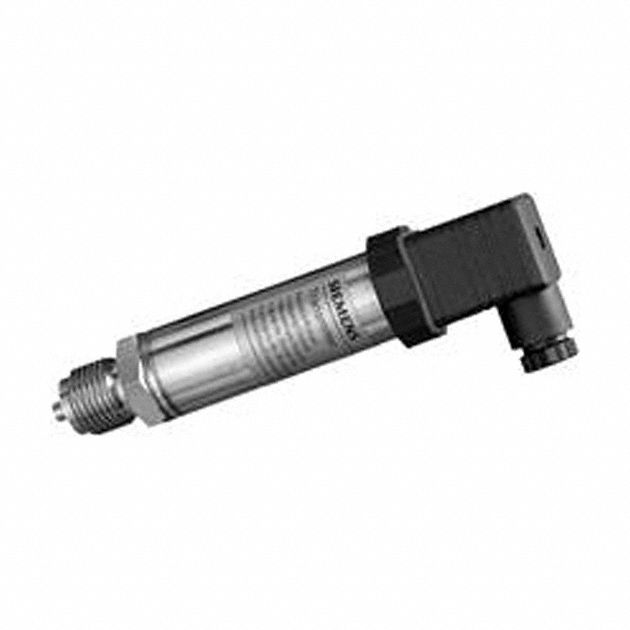

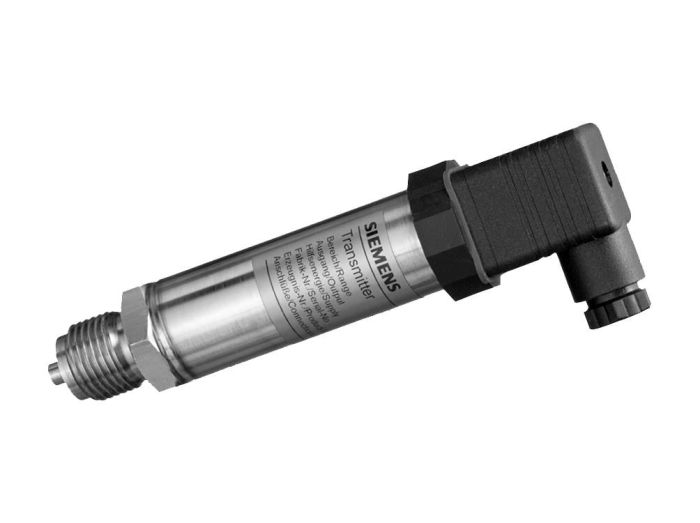

Siemens 7MF15654BB005EA1 Single Point Wet Pressure Sensor 4 to 20 mA (1/4 in MNPT) 7MF15654BB005EA1

Product Description

Siemens 7MF15654BB005EA1 is a single point wet pressure sensor that measures 0 to 15 psi and provides a 4 to 20 mA output for pressure monitoring of liquids, gases, and vapor. The sensor uses a temperature-compensated measuring cell in a stainless steel, piezo-resistive design and features a 1/4 in MNPT straight process connection. It is compact, IP65 rated, and suitable for aggressive and non-aggressive media.

• 4 to 20 mA analog output, pressure range 0 to 15 psi, typical accuracy 0.25% of full scale
• Stainless steel piezo-resistive measuring system with temperature-compensated measuring cell and 1/4 in MNPT straight process connection
• IP65 enclosure, screw terminal connections, 2-wire design, operating temperature -13°F to 185°F, power 10 to 36 V DC

Product Highlights

0–15 psi range, 4–20 mA output, stainless steel piezo-resistive sensor with temperature compensation and IP65 rating

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 7MF15654BB005EA1
• Country of Origin: Switzerland

Technical Specifications

• Brand: Siemens
• MPN: 7MF15654BB005EA1
• Series: 7MF15654
• Product Category: Pressure sensor / Pressure transmitter
• Product Name: Single Point Wet Pressure Sensor
• Output Signal: 4 to 20 mA
• Alternate Output Option: 0 to 10 Vdc (model variants)
• Pressure Range: 0 to 15 psi (0-15 PSIG)
• Accuracy: 0.25% of full scale (typical)
• Measuring System: Stainless steel piezo-resistive
• Measuring Cell: Temperature-compensated measuring cell
• Suitable Media: Liquids, gases and vapor (aggressive and non-aggressive)
• Process Connection: 1/4 in. MNPT straight
• Housing Material: Stainless steel
• Input Voltage: 10 to 36 V DC
• Number of Wires: 2
• Electrical Connections: Screw terminals
• IP Rating: IP65
• Operating Temperature: -13°F to 185°F
• Response Time: 0.1 sec
• Overall Length: 4 in
• Weight: 0.38 lb
• Burst Pressure: 35 psi
• Overpressure: 15 psi
• Display: No
• Connection (alternate listing): G1/2 in external thread (varies by variant)
• Net Weight (alternate listing): 0.265 lb
• Standards / Certifications: ABS_11_HG 789392_PDA; ACS 15 ACC NY 360; BV 271007A0 BV; DNV A 12553; GL19740 11 HH00; IEC 60770-2; IEC UL DK 21845; Lloyd's Register of Shipping (LR) 12/20010; Pressure Equipment Directive (PED 2014/68/EU); UL E34453
• Manufacturer: Siemens Building Technologies
• Supplier Part Number: 7MF15654BB005EA1
• Typical Applications: HVAC, hydraulic and pneumatic systems, liquid and gas pressure monitoring
